Запчасти Case IH 2412-30 (20.13.01[3]) - KIT, INNER DIVIDERS, FRONT, 30 INCH (58) - ATTACHMENTS/HEADERS

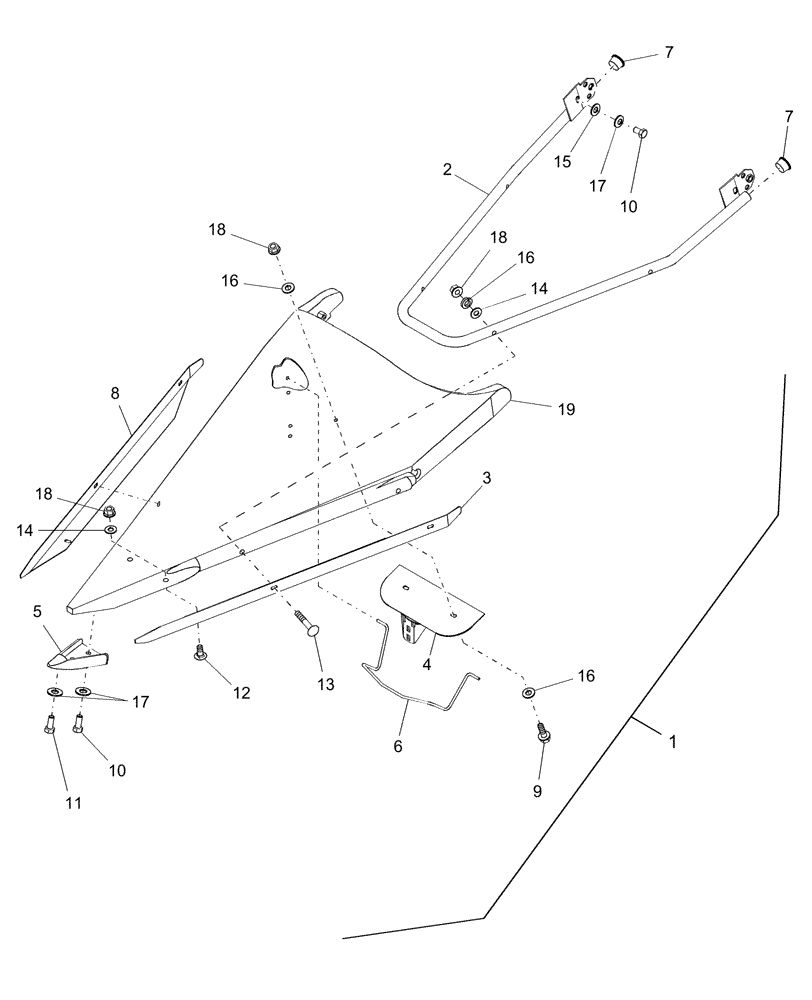

Схема запчастей Case IH 2412-30 - (20.13.01[3]) - KIT, INNER DIVIDERS, FRONT, 30 INCH (58) - ATTACHMENTS/HEADERS
18
11
5
4
13
8
19
17
14
3
6
1
12
10
14
17
7
16
7
9
10
16
16
18
18
2
15

Артикул

Название

Примечание

Количество

1

87025407

HOOD

W/Reinforced Ref 4, AHHC/FT

1шт.

1

86978704

DIVIDER

W/Unreinforced Ref 4

1шт.

2

86729269

TUBE,588.20, 931.60 mm L

908mm [35-7/8"] long

1шт.

2

87362248

TUBE,898.6 mm L

875mm [34-31/64"] long

1шт.

Tube length shortened production year 2006.

1шт.

3

86553709

WEAR STRIP

LH

1шт.

4

86583860

PLATE

Unreinforced

1шт.

4

87020036

PLATE

Reinforced, AHHC/FT

1шт.

5

87015179

POINT

3" & 70 CM

1шт.

6

86535508

PROP

Snout

1шт.

7

86583879

PLUG

2шт.

8

86553710

WEAR STRIP

RH

1шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

12

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

2шт.

13

86512421

CARRIAGE BOLT,Sq Nk, M8 x 60mm, Cl 8.8

4шт.

14

495-21038

WASHER,5/16"

6шт.

15

495-21056

WASHER,1/2"

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

17

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

18

832-46408

NUT,M8 x 1.25, Cl 8

8шт.

19

86980207

DIVIDER

30"

1шт.

Выбрано товаров: 23
