Запчасти Case IH 2412-30 (20.12.01[2]) - MAIN FRAME AND ATTACHING PARTS, PIN HAJ036146 AND AFTER [INCLUDES ALL CBJ PINS] (58) - ATTACHMENTS/HEADERS

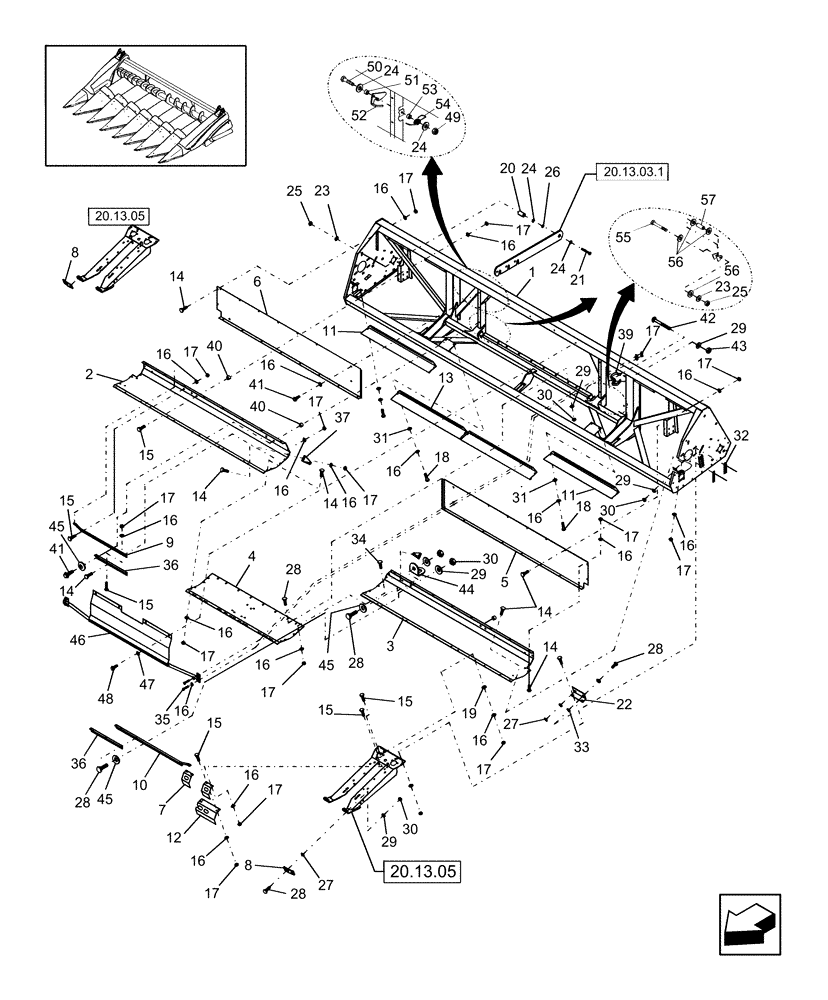

Схема запчастей Case IH 2412-30 - (20.12.01[2]) - MAIN FRAME AND ATTACHING PARTS, PIN HAJ036146 AND AFTER [INCLUDES ALL CBJ PINS] (58) - ATTACHMENTS/HEADERS
24
15
39
34
16
8
20.13.03.1
17
16
30
19
20.13.05
16
51
24
27
28
7
17
42
16
10
36
23
28
44
17
56
31
9
15
41
28
25
30
45
14
4
27
16
32
37
17
28
36
16
14
24
16
47
17
17
45
41
50
12
14
20.13.05
49
54
15
14
30
17
14
29
15
6
16
1
17
29
17
17
30
16
16
8
17
35
13
29
29
25
22
16
21
16
16
31
40
28
26
29
2
15
16
56
45
20
17
11
16
43
48
16
40
46
53
3
52
11
17
17
23
18
18
16
24
16
14
33
15
55
17
57
5

Артикул

Название

Примечание

Количество

1

87500743

FRAME

6 Row-30" & 70CM, 8 Row-22"

1шт.

1

87500744

FRAME

6 Row-36 & 38", 8 Row-70CM

1шт.

1

87500745

FRAME

8 Row-30", 12 Row-20"

1шт.

1

87500746

FRAME

8 Row-36 & 38"

1шт.

1

87500747

FRAME

12 Row-22"

1шт.

1

87500748

FRAME

12 Row-30"

1шт.

2

87283036

FLOOR

RH, 6 Row-30" & 70CM, 8 Row-22"

1шт.

2

87283037

FLOOR

RH, 6 Row-36 & 38", 8 Row-70CM

1шт.

2

87283040

FLOOR

RH, 8 Row-30", 12 Row-20"

1шт.

2

87283041

FLOOR

RH, 8 Row-36 & 38"

1шт.

2

87283043

FLOOR

RH, 12 Row-22"

1шт.

2

87283045

FLOOR

RH, 12 Row-30"

1шт.

3

87283035

FLOOR

LH, 6 Row-30" & 70CM, 8 Row-22"

1шт.

3

87283038

FLOOR

LH, 6 Row-36 & 38", 8 Row-70CM

1шт.

3

87283039

FLOOR

LH, 8 Row-30", 12 Row-20"

1шт.

3

87283042

FLOOR

LH, 8 Row-36 & 38"

1шт.

3

87283044

FLOOR

LH, 12 Row-22"

1шт.

3

87283046

FLOOR

LH, 12 Row-30"

1шт.

4

86634166

FLOOR

Center

1шт.

5

87501220

PANEL

Rear, LH, W/Decal, 6 Row-30" & 70CM, 8 Row-22"

1шт.

5

87501250

PANEL

Rear, LH, W/Decal, 6 Row-36 & 38", 8 Row-70CM

1шт.

5

87501222

PANEL

Rear, LH, W/Decal, 8 Row-30", 12 Row-20"

1шт.

5

87501228

PANEL

Rear, LH, W/Decal, 8 Row-36 & 38"

1шт.

5

87501230

PANEL

Rear, LH, W/Decal, 12 Row-22"

1шт.

5

87501224

PANEL

Rear, LH, W/Decal, 12 Row-30"

1шт.

6

87501221

PANEL

Rear, RH, W/Decal, 6 Row-30" & 70CM, 8 Row-22"

1шт.

6

87501227

PANEL

Rear, RH, W/Decal, 6 Row-36 & 38", 8 Row-70CM

1шт.

6

87501223

PANEL

Rear, RH, W/Decal, 8 Row-30", 12 Row-20"

1шт.

6

87501229

PANEL

Rear, RH, W/Decal, 8 Row-36 & 38"

1шт.

6

87501231

PANEL

Rear, RH, W/Decal, 12 Row-22"

1шт.

6

87501225

PANEL

Rear, RH, W/Decal, 12 Row-30"

1шт.

7

86611882

SHIELD

6 Row-36/38", See Figure Note

10шт.

7

86611882

SHIELD

8 Row-36/38", See Figure Note

14шт.

8

86611546

BRACKET

6 & 8 Row-36"/38"

2шт.

8

86611547

BRACKET

6, 8 & 12 Row 20", 22" & 30"

2шт.

9

87283048

STRIPPER

RH, 6 Row, 8 Row-22", 30", 70CM, 12 Row-20"

1шт.

9

87283052

STRIPPER

RH, 8 Row-36/38", 12 Row-22"

1шт.

9

87283056

STRIPPER

RH, 12 Row-30"

1шт.

10

87283050

STRIPPER

LH, 6 Row, 8 Row-22", 30", 70CM, 12 Row-20"

1шт.

10

87283054

STRIPPER

LH, 8 Row-36/38", 12 Row-22"

1шт.

10

87283058

STRIPPER

LH, 12 Row-30"

1шт.

11

86637054

SHIELD

Trash, 6 Row-30" & 70CM, 8 Row-22"

2шт.

11

87012355

SHIELD

Trash, 6 Row-36 & 38", 8 Row-70CM

2шт.

11

86636045

SHIELD

Trash, 8 Row-30", 12 Row-20"

2шт.

11

87012357

SHIELD

Trash, 8 Row-36 & 38"

2шт.

11

87012359

SHIELD

Trash, 12 Row-22"

2шт.

11

87015316

SHIELD

Trash, RH, 12 Row-30"

1шт.

11

87015318

SHIELD

Trash, LH, 12 Row-30"

1шт.

12

86611884

SHIELD

6 Row-30" & 70CM, 6 Row-36 & 38"

5шт.

12

86611884

SHIELD

8 Row-36/38"

7шт.

12

86611886

SHIELD

8 Row-30" & 70CM

7шт.

12

86611886

SHIELD

12 Row-30"

11шт.

13

86611548

SHIELD

Center

2шт.

14

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

15

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

1шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

17

9706690

NUT,M8 x 1.25, Cl 8

1шт.

18

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

8шт.

19

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

1шт.

20

579577

SPACER

6 Row-38" & 8 Row-30" & 36"

2шт.

21

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

6 Row-36/38", 8 Row-30/36"

2шт.

21

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6 Row-30" & 70CM, 8 Row-22", 38" & 70CM, 12 Row-20/22/30"

2шт.

22

86555767

ANGLE

6 Row-36/38", 6 Row-70CM, 8 Row-36/38"

2шт.

22

86555768

ANGLE

8 Row-30"

2шт.

23

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

24

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

25

9706685

NUT,M12 x 1.75, Cl 8

2шт.

26

144607

SPACER,0.516" ID x 0.749" OD x 0.28" L

2шт.

27

86620024

WASHER,10.3mm ID x 25.4mm OD x 5.2mm Thk

(13/32" ID x 1" OD x 3/16" Thk), 6 Row, 8 Row- 30", 36" & 38"

4шт.

28

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

29

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

30

100016

NUT,M10 x 1.5, Cl 8

1шт.

31

495-21038

WASHER,5/16"

8шт.

32

86614670

ANGLE

8 Row-36/38"

4шт.

33

86620023

SPACER

6 Row-36/38", 6 Row-70CM, 8 Row-36/38"

2шт.

34

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

35

86528166

BOLT,M8 x 1.25 x 126.58mm, Cl 8.8

4шт.

36

87282383

EXTENSION

Stripper

2шт.

37

86615071

BRACKET

RH

1шт.

38

86615072

BRACKET

LH

1шт.

39

87016747

BRACKET

PTO Storage

2шт.

40

103789

SPACER

4шт.

41

88825

SELF-TAP SCREW,Hex, 5/16" - 12 x 1-1/4"

6шт.

42

9780090

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 125mm, Cl 8.8

2шт.

43

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

44

87027069

ANGLE

2шт.

45

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

46

87722607

SHROUD

1шт.

47

29962

WASHER

13/32"ID x 1-1/8"OD x 1/8"

4шт.

48

175997

SELF-TAP SCREW,Hex Hd, 5/16" x 1 1/4"

4шт.

49

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

50

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

51

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

1шт.

52

87033816

CLIP

Combine, Lever Retainer

1шт.

53

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

1шт.

54

87026147

SPRING

1шт.

55

86900194

BOLT,Hex, M12 x 115mm, Cl 10.9

2шт.

56

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

8шт.

57

86837468

SPACER,13.5mm ID x 19mm OD x 68.3mm L

2шт.

Выбрано товаров: 99
