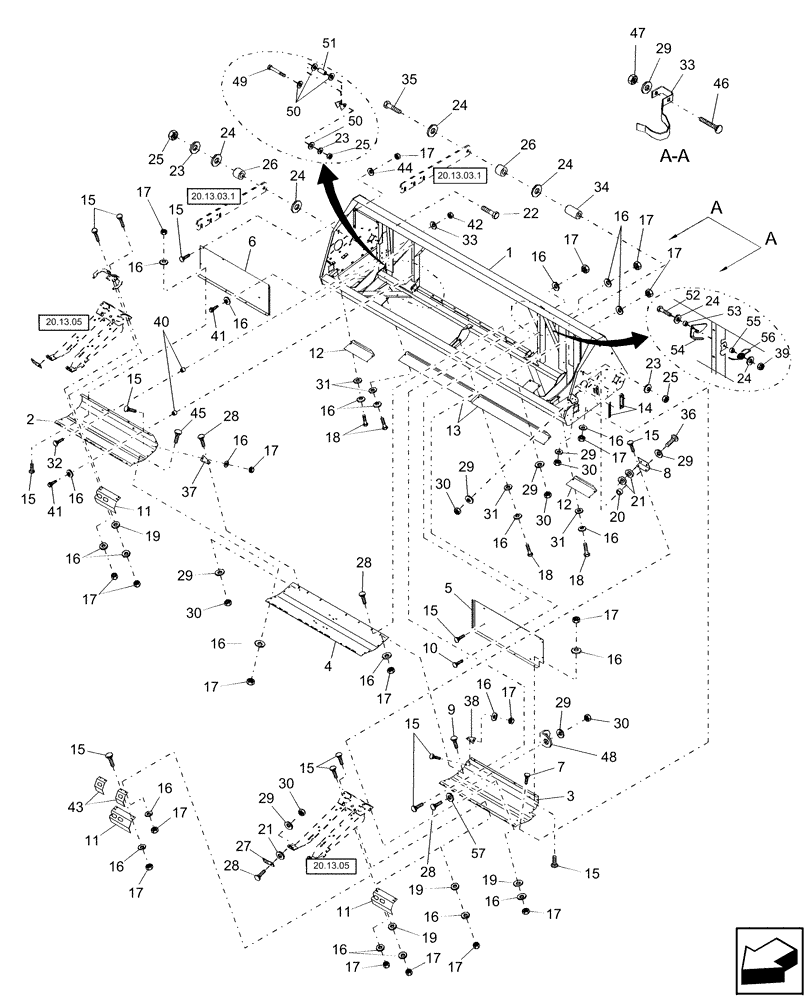

Запчасти Case IH 2412-30 (20.12.01[1]) - MAIN FRAME AND ATTACHING PARTS, BPIN HAJ036146 (58) - ATTACHMENTS/HEADERS

1

86634912

FRAME

6 Row-30" & 70CM, 8 Row-22"

1шт.

1

86837580

FRAME ASSY

6 Row 36 & 38", 8 Row-70CM

1шт.

1

86634914

FRAME

8 Row-30", 12 Row-20"

1шт.

1

86837582

FRAME

8 Row-36 & 38"

1шт.

1

86837584

FRAME

12 Row-22"

1шт.

1

86634916

FRAME

12 Row-30"

1шт.

2

87283036

FLOOR

RH, 6 Row-30" & 70CM, 8 Row-22"

1шт.

2

87283037

FLOOR

RH, 6 Row-36 & 38", 8 Row-70CM

1шт.

2

87283040

FLOOR

RH, 8 Row-30", 12 Row-20"

1шт.

2

87283041

FLOOR

RH, 8 Row-36, 38", & 70CM

1шт.

2

87283043

FLOOR

RH, 12 Row-22"

1шт.

2

87283045

FLOOR

RH, 12 Row-30"

1шт.

3

87283035

FLOOR

LH, 6 Row-30" & 70CM, 8 Row-22"

1шт.

3

87283039

FLOOR

LH, 8 Row-30", 12 Row-20"

1шт.

3

87283038

FLOOR

LH, 6 Row-36 & 38", 8 Row-70CM

1шт.

3

87283042

FLOOR

LH, 8 Row-36" & 38"

1шт.

3

87283044

FLOOR

LH, 12 Row-22"

1шт.

3

87283046

FLOOR

LH, 12 Row-30"

1шт.

3

87283046

FLOOR

LH, 12 Row-30"

1шт.

4

86634166

FLOOR

Center, 6, 8 & 12 Row

1шт.

5

86634260

PANEL

Rear, LH, W/Decal, 6R30" & 70CM, 8R22"

1шт.

5

86634264

PANEL

Rear, LH, W/Decal, 6R36 & 38", 8R70CM

1шт.

5

86634268

PANEL

Rear, LH, W/Decal, 8R30", 12R20"

1шт.

5

86634272

PANEL

Rear, LH, W/Decal, 8R36 & 38"

1шт.

5

86634276

PANEL

Rear, LH, W/Decal, 12R22"

1шт.

5

86634280

PANEL

Rear, LH, W/Decal, 12R30"

1шт.

6

86634262

PANEL

Rear, RH, W/Decal, 6R30" & 70CM, 8R22"

1шт.

6

86634266

PANEL

Rear, RH, W/Decal, 6R36 & 38", 8R70CM

1шт.

6

86634270

PANEL

Rear, RH, W/Decal, 8R30", 12R20"

1шт.

6

86634274

PANEL

Rear, RH, W/Decal, 8R36 & 38"

1шт.

6

86634278

PANEL

Rear, RH, W/Decal, 12R22"

1шт.

6

86634282

PANEL

Rear, RH, W/Decal, 12R30"

1шт.

7

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

8 Row 36" & 38", 12 Row

1шт.

8

86555768

ANGLE

8 Row-30"

2шт.

8

86555767

ANGLE

6 & 8 Row-36"

2шт.

9

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

10

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6 Row-38", 8 Row-36" & 38", 12 Row 20" & 30"

1шт.

11

86611884

SHIELD

6 Row (5), 8 Row-30", 36", 38" & 70CM (7) , 12 Row-30" (11)

1шт.

11

86611882

SHIELD

6 Row-36" & 38"[10], 8 Row-36" & 38"[14]

1шт.

12

86637054

SHIELD

6 Row-70CM, 8 Row-22"

2шт.

12

87012355

SHIELD

6 Row-36 & 8 Row-70CM

2шт.

12

86636045

SHIELD

8 Row-30", 12 Row-20"

2шт.

12

87012357

SHIELD

8 Row-36 & 38"

2шт.

12

87012359

SHIELD

12 Row-22"

2шт.

12

87015316

SHIELD

LH, 12 Row-30"

1шт.

12

87015318

SHIELD

RH, 12 Row-30"

1шт.

13

86611548

SHIELD

Center

2шт.

14

86614670

ANGLE

8 Row-36 & 38"

4шт.

15

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

1шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

17

9706690

NUT,M8 x 1.25, Cl 8

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

19

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

1шт.

20

86620023

SPACER

1/4" x 1" OD, 6 Row-36 & 38", 8 Row 30, 36 & 38"

2шт.

21

86620024

WASHER,10.3mm ID x 25.4mm OD x 5.2mm Thk

(3/16" x 1" OD), 6 Row-38", 8 Row 30" & 38"

4шт.

21

86620024

WASHER,10.3mm ID x 25.4mm OD x 5.2mm Thk

(3/16" x 1" OD), 6 Row-36", 8 Row 36"

8шт.

22

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6 Row-30" & 70CM; 8 Row-22", 38" & 70CM; 12 Row 20", 22" & 30"

1шт.

22

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

6 Row 36" & 38", 8 Row 30" & 36"

1шт.

23

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

24

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

6шт.

25

9706685

NUT,M12 x 1.75, Cl 8

4шт.

26

144607

SPACER,0.516" ID x 0.749" OD x 0.28" L

2шт.

27

86611547

BRACKET

6 Row-30" & 70CM, 8 Row-30" & 70CM, 12 Row-20, 22 & 30"

2шт.

27

86611546

BRACKET

6 & 8 Row-36 & 38", 8 Row-36" & 38"

2шт.

28

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

29

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

30

100016

NUT,M10 x 1.5, Cl 8

1шт.

31

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

32

43465

CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd

8 Row-36 & 38", 12 Row-22"

2шт.

33

87016747

BRACKET

PTO Storage, RH, 8 & 12 Row

1шт.

34

579577

SPACER

6 Row-36 & 38", 8 Row-30, 36 & 38"

2шт.

35

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

6 Row-30" & 70CM; 8 Row-22", 38" & 70CM; 12 Row 20", 22" & 30"

1шт.

35

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

8 Row-36 & 38"

1шт.

36

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

36

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

8 Row-30, 36 & 38"

4шт.

37

86615071

BRACKET

RH

1шт.

38

86615072

BRACKET

LH

1шт.

39

100038

NUT,M12 x 1.75, Cl 8

1шт.

40

103789

SPACER

8 Row-36 & 38", 12 Row-22 & 30" (4), All Others (2)

1шт.

41

88825

SELF-TAP SCREW,Hex, 5/16" - 12 x 1-1/4"

6шт.

42

9706690

NUT,M8 x 1.25, Cl 8

2шт.

43

86611882

SHIELD

6 Row-36 & 38" (10), 8 Row-36 & 38" (14)

1шт.

44

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

45

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

46

9780090

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 125mm, Cl 8.8

2шт.

47

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

48

87027069

ANGLE

Chain Holder

2шт.

49

86900194

BOLT,Hex, M12 x 115mm, Cl 10.9

1шт.

50

143479

WASHER,15.08" ID x 31.75" OD x 3.5" Thk

8шт.

51

86837468

SPACER,13.5mm ID x 19mm OD x 68.3mm L

13.5ID x 19OD x 68.3

1шт.

52

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

53

86622548

SPACER,13.55mm ID x 19.01mm OD x 10.79mm L

1шт.

54

87033816

CLIP

1шт.

55

86553411

SPACER,13.49mm ID x 18.97mm OD x 23.88mm L

Split

1шт.

56

87026147

SPRING

1шт.

57

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.
