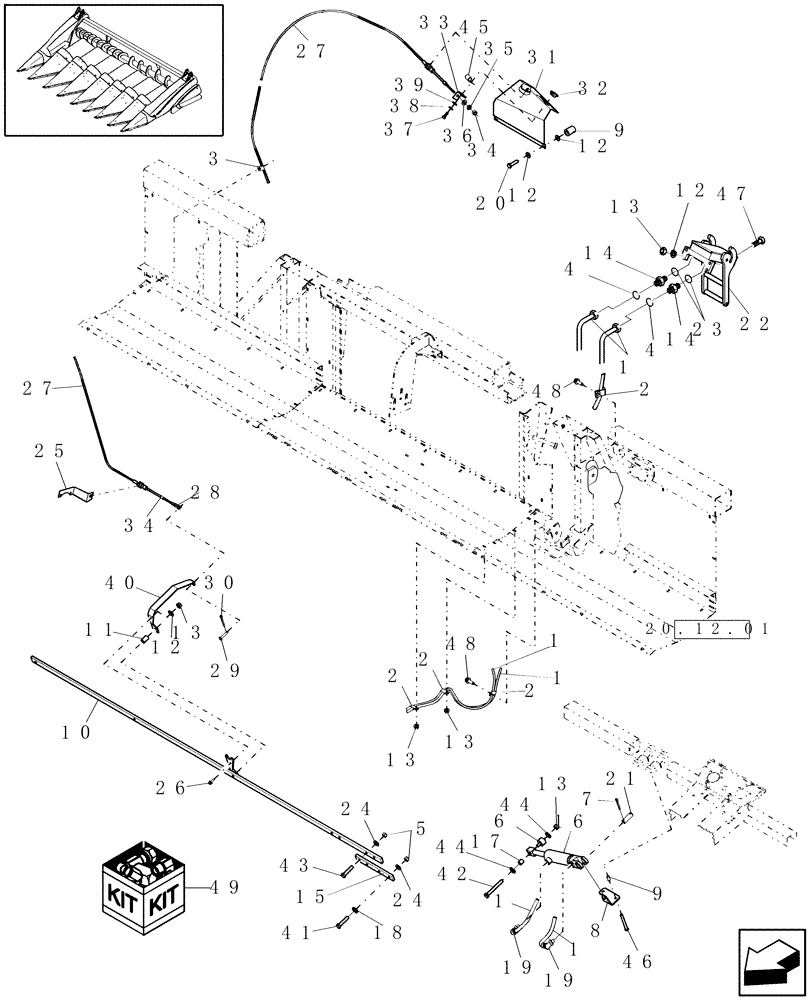

Запчасти Case IH 2412-30 (20.07.01) - HYDRAULIC CONTROL, DECK PLATES, 20" & 22" (58) - ATTACHMENTS/HEADERS

1

86604445

HOSE,6.35mm ID x 2438.4mm L, SAE 100R1

Straight [O-Ring] x 90°Elbow [37° Flare]

2шт.

2

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

3

134577

CLIP,J

7/16" Dia. Hole

1шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

5

9706685

NUT,M12 x 1.75, Cl 8

4шт.

5

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

For use with revised Ref42 [22"]

1шт.

6

86611846

HUB

22" Only

1шт.

7

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

2шт.

8

86729302

BRACKET

Cylinder Mount

1шт.

9

86596024

SPACER

3шт.

10

86729288

BAR

Adjuster, 8 Row-22"

1шт.

10

86729292

BAR

Adjuster, 12 Row-20"

2шт.

10

86729296

BAR

Adjuster, 12 Row-22"

2шт.

11

67355

SPACER,.75" OD x 19/32" L

1шт.

12

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

13

9706690

NUT,M8 x 1.25, Cl 8

12шт.

14

86596730

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

9/16"-18 x 11/16"-16, 0.71mm[0.028"] Orifice

2шт.

15

86596006

BAR

12 Row-20" & 22"[Connects Qty 2 Ref 10]

1шт.

16

See Fig 20.07.03

1шт.

17

705996

BUSHING

12 Row-20" Only

1шт.

18

86596036

BUSHING,13.51mm ID x 19.05mm OD x 9.53mm L

12 Row-20" Only

1шт.

19

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

21

86596042

PIN,19.05mm OD x 57.2mm L

1шт.

22

84435009

COUPLING

Quick, See Figure 20.07.05

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

25

86596026

BRACKET

Cable

1шт.

26

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

27

687559

CABLE,104mm L

1шт.

28

86596023

YOKE

1шт.

29

86596057

CLEVIS PIN,7.92mm OD x 16.78mm L

1шт.

30

86523849

COTTER PIN,1/16" x 3/4"

1шт.

31

86615514

INDICATOR

1шт.

32

86615512

POINTER

1шт.

33

86611849

ANGLE

1шт.

34

87825

NUT,#10-32

3шт.

35

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

1шт.

36

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

2шт.

37

86551278

SELF-TAP SCREW,HWH, #10 - 16 x 1/2"

1шт.

38

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

1шт.

39

493-81000

LOCK WASHER,Ext-Int Tooth, #10

1шт.

40

86611848

ARM

Control

1шт.

41

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

42

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

8 & 12 Row-22"

1шт.

42

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

8 & 12 Row-22", Revised to 3/8" Year 2006

1шт.

42

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

12 Row-20", Nut not required

1шт.

43

9706693

BOLT,M12 x 60mm, Cl 8.8

12 Row Only

4шт.

44

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(13/32" ID x 7/8" OD, 0.105" Thk)

2шт.

45

134580

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, J Type

J Type

1шт.

46

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

2шт.

47

86512138

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

48

87030040

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 3/4"

2шт.

49

87108786

REPAIR KIT

8 Row 22", Ref 1 to 48 Plus 20.07.04

1шт.

49

87108790

REPAIR KIT

12 Row 20", Ref 1 to 48 Plus 20.07.04

1шт.

49

87108791

REPAIR KIT

12" Row 22", Ref 1 to 48 Plus 20.07.04

1шт.
