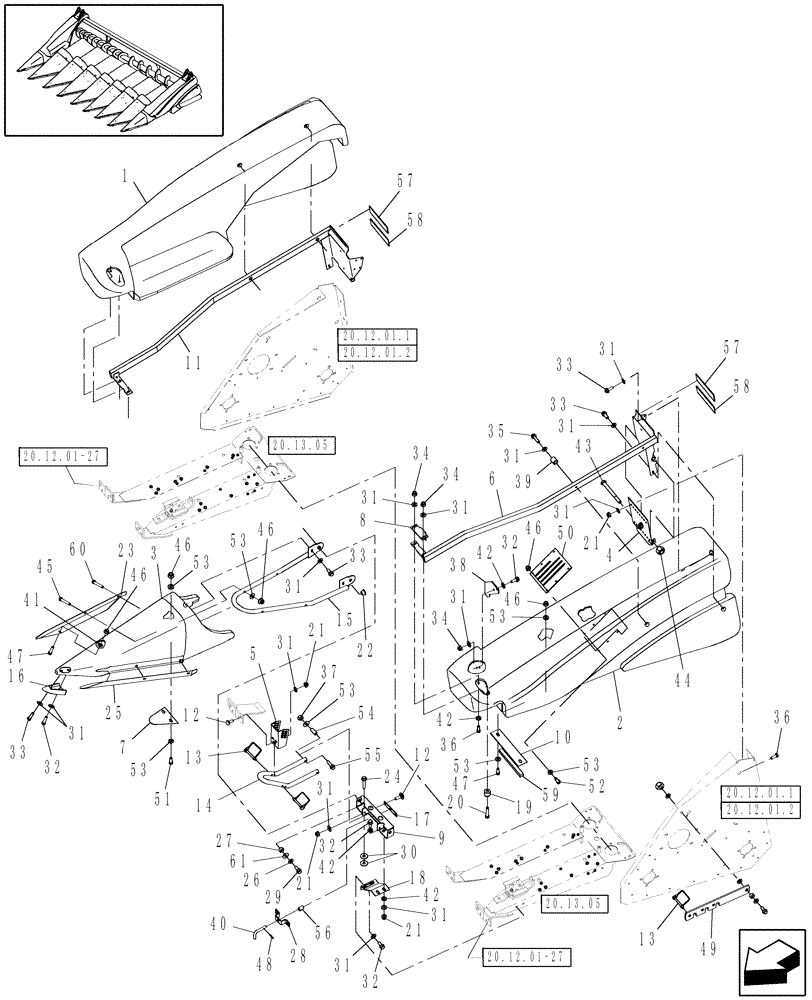

Запчасти Case IH 2406-70 (20.13.03[1]) - OUTER DIVIDERS (58) - ATTACHMENTS/HEADERS

1

86635994

HOOD

RH, CIH Decal Included and is not NSS

1шт.

2

86635993

HOOD

LH, CIH Decal Included and is not NSS

1шт.

3

86980203

POINT

End

2шт.

4

86583742

BRACKET

2шт.

5

84411040

BRACKET

2шт.

5

86583883

BRACKET

Bolted to Ref 27 of Fig 20.12.01; NO LONGER USED, Upgrade To 84411040 Bracket And 86729277 Tube

2шт.

6

86642048

TUBE,1531 mm L

LH

1шт.

7

87020038

PLATE

End Point

2шт.

8

86544357

CATCH

2шт.

9

86729278

BRACKET

2шт.

10

86583889

SUPPORT

4шт.

11

86642051

TUBE,1531.10, 89.10 mm L

RH

1шт.

12

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

2шт.

13

647695

PIN,7.94mm OD

Snap

6шт.

14

86729277

TUBE,135, 379.1 mm L

Support, With Pin Holes; Adjustable, NO LONGER USED, Upgrade To 84414169 Tube And 84411040 Bracket

2шт.

14

84414169

TUBE

Support, Without Pin Holes

2шт.

15

86729268

TUBE,756.30, 341.80 mm L

2шт.

16

87015178

POINT

Casting

2шт.

17

86583900

PLATE

Flat

2шт.

18

86583906

SUPPORT

2шт.

19

86530602

PIN

2шт.

20

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

2шт.

21

100016

NUT,M10 x 1.5, Cl 8

14шт.

22

86583879

PLUG

4шт.

23

86555871

WEAR STRIP

Angle, End, RH

2шт.

24

374887

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

2шт.

25

86555870

WEAR STRIP

Angle, End, LH

2шт.

26

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

27

131522

SPACER

Split, 0.53"ID, 0.74"OD, 0.34"L

4шт.

28

86583871

CHANNEL

2шт.

29

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

30

122432

WASHER,17mm ID x 41mm OD x 6mm Thk

Hardened, 5/8"

4шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

40шт.

32

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

10шт.

33

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

12шт.

34

100037

LOCK NUT,M10 x 1.5, Cl 8

8шт.

35

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

4шт.

36

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

6шт.

37

9706690

NUT,M8 x 1.25, Cl 8

4шт.

38

86526475

FLAP

Flap

2шт.

39

37836

SPACER,1" - 8 x 8"

SPLIT .41ODX.62ODX.94

4шт.

40

84232899

PIN,14.29mm OD

Jack

2шт.

41

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

42

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

10шт.

43

380422

BOLT,Hex, M20 x 2.5 x 190mm, Cl 8.8

2шт.

44

86536985

NUT,M20 x 2.5, Cl 10

2шт.

45

86559150

CARRIAGE BOLT,Sht Nk, M8 x 50mm, Cl 8.8

8шт.

46

86629542

NUT,M8 x 1.25, Cl 8.8

32шт.

47

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

12шт.

48

87020816

LOCK PIN,4.76mm OD x 31.75mm L

2шт.

49

86538688

PROP

2шт.

50

87024877

PLATE

2шт.

51

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

52

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

53

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

44шт.

54

86551559

SPACER

4шт.

55

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

56

86611329

SPRING

2шт.

57

86547781

REFLECTOR,RED

Red Retroflective

2шт.

58

86547783

REFLECTOR,Tape, Red Orange

Red Orange, Flourescent

2шт.

59

NH291525

EDGE

PVC, Double Lip, 0.39" x 0.52" x 0.6 Ft

4шт.

60

86512421

CARRIAGE BOLT,Sq Nk, M8 x 60mm, Cl 8.8

2шт.

61

87613265

WASHER,0.53" ID x 1.25" OD x 0.13" Thk

17/32" x 1-1/8" x 0.134"

2шт.
