Запчасти Case IH 234 (H-12) - ATTACHMENTS, TALL CORN ATTACHMENT (88) - ACCESSORIES

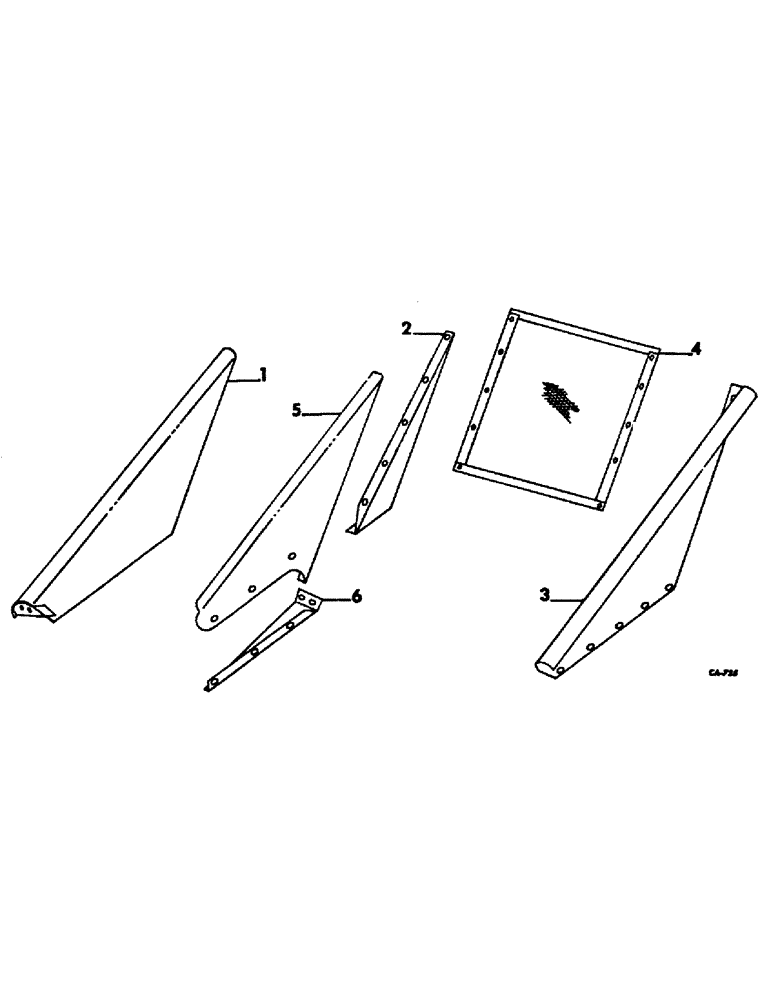

Схема запчастей Case IH 234 - (H-12) - ATTACHMENTS, TALL CORN ATTACHMENT (88) - ACCESSORIES
6
5
2
4
3
1

№

Артикул

Название

Примечание

Количество

1

151380C91

EXTENSION ASSY., outer gatherer shield front, L.H., serial no. 5767 and below

1шт.

1

151381C91

EXTENSION ASSY., outer gatherer shield front, R.H., serial no. 5767 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

14шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

10шт.

2

151386C1

EXTENSION, outer gatherer shield rear, L.H.

1шт.

2

151387C1

EXTENSION, outer gatherer shield rear, R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

3

151388C91

EXTENSION ASSY., inner gath. shield, L.H., serial no. 6782 and below

1шт.

3

151389C91

EXTENSION ASSY., inner gath. shield, R.H., serial no. 6782 and below

1шт.

3

174147C1

EXTENSION ASSY., inner gath. shield, L.H., serial no. 6783 and above

1шт.

3

174148C1

EXTENSION ASSY., inner gath. shield, R.H., serial no. 6783 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

12шт.

4

151393C91

SIEVE ASSY., gatherer ext. shield, serial no. 6782 and below

2шт.

4

174151C1

SIEVE ASSY., gatherer ext. shield, serial no. 6783 and above

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

20шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

20шт.

5

170543C1

EXTENSION, outer shield front, L.H.

1шт.

5

170544C1

EXTENSION, outer shield front, R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

6шт.

6

170545C1

SUPPORT, outer shield extension, L.H.

1шт.

6

170546C1

SUPPORT, outer shield extension, R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

Выбрано товаров: 27
