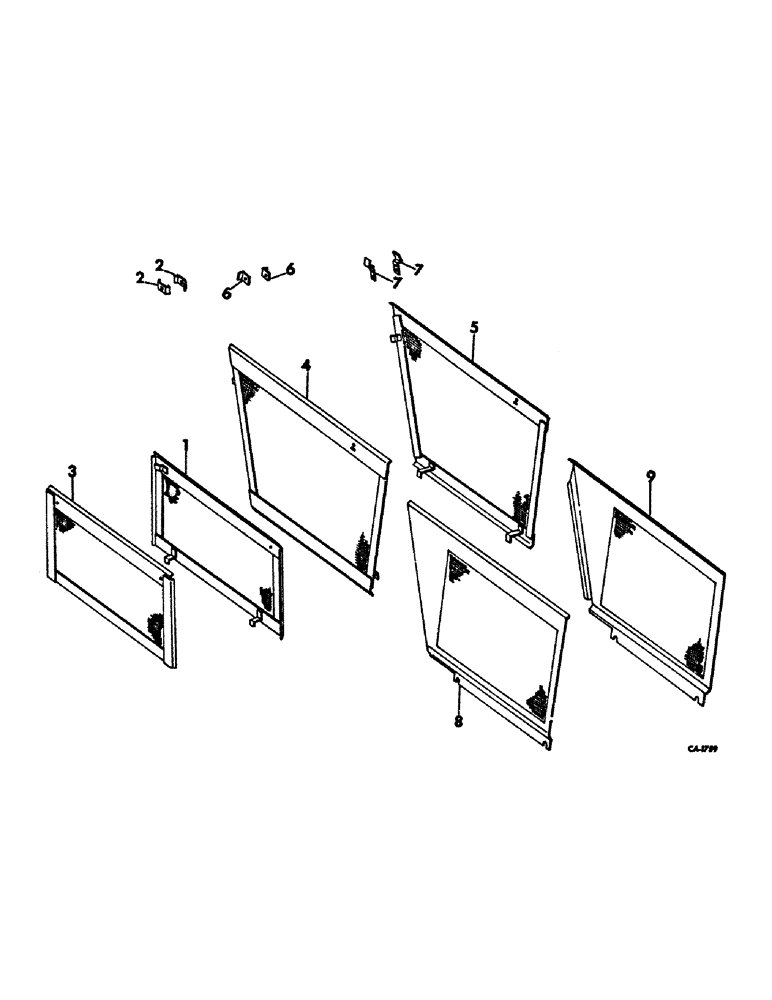

Запчасти Case IH 234 (H-08) - ATTACHMENTS, ENGINE SIDE SCREEN ATTACHMENT (88) - ACCESSORIES
№
Артикул
Название
Примечание
Количество
1
575565R92
SHIELD ASSY., tractor engine side, R.H., for Farmall 300 and 350 tractors
1шт.
1
575570R93
SHIELD ASSY., tractor engine side, R.H., for Farmall M, SM, SMTA, 400 and 450 tractors
1шт.
21537R1
BOLT, 5/16 x 1-1/4 dld sq-nk. crg.
1шт.
935736R1
NUT, WING
NUT, 5/16 C-Z wing
1шт.
112726
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
2
576037R1
CLAMP
tractor engine side shield, Farmall 300, 350, M, SM, SMTA, 400, 560, 666, 766, 966 & 1066 tractor
2шт.
21537R1
BOLT, 5/16 x 1-1/4 dld sq-nk. crg.
2шт.
935736R1
NUT, WING
NUT, 5/16 C-Z wing
2шт.
112726
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
3
575564R92
SHIELD ASSY., tractor engine side, L.H., for Farmall 300 and 350 tractors
1шт.
3
575569R93
SHIELD ASSY., tractor engine side, L.H., for Farmall M, SM, SMTA, 400 and 450 tractors
1шт.
21537R1
BOLT, 5/16 x 1-1/4 dld sq-nk. crg.
1шт.
935736R1
NUT, WING
NUT, 5/16 C-Z wing
1шт.
112726
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
4
628985R91
SHIELD ASSY., tractor engine side, L.H., for Farmall 460 and 560 tractors
1шт.
21537R1
BOLT, 5/16 x 1-1/4 C-Z dld sq-nk. crg.
1шт.
935736R1
NUT, WING
NUT, 5/16 C-Z wing
1шт.
112726
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
4
632636R92
SHIELD ASSY., tractor engine side, L.H., for Farmall 504 tractors
1шт.
134238R1
WASHER
11/32 x 1 x 16 ga. C-Z
2шт.
4
167894C11
SIEVE ASSY., tractor engine side, L.H., for Farmall 656, 706 & 756 tractors
1шт.
4
167896C11
SIEVE ASSY., tractor engine side, L.H., Farmall 806, 826, 856, 1026, 1206, 1256 and 1456 tractors
1шт.
4
165450C11
SCREEN ASSY., tractor engine side, L.H., for Farmall 544 tractors
1шт.
5
628986R91
SHIELD ASSY., tractor engine side, R.H., for Farmall 460 and 560 tractors
1шт.
21537R1
BOLT, 5/16 x 1-1/4 C-Z dld sq-nk. crg.
1шт.
935736R1
NUT, WING
NUT, 5/16 C-Z wing
1шт.
112726
COTTER PIN,1/16" x 1/2"
PIN, SPLIT (COTTER), 1/16" x 1/2"
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
5
632637R92
SHIELD ASSY., tractor engine side, R.H., for Farmall 504 tractors
1шт.
134238R1
WASHER
11/32 x 1 x 16 ga. C-Z
2шт.
5
167895C11
SIEVE ASSY., tractor engine side, R.H., for Farmall 656, 706 & 756 tractors
1шт.
5
167897C11
SIEVE ASSY., tractor engine side, R.H., Farmall 806, 826, 856, 1026, 1206, 1256 and 1456 tractors
1шт.
5
165451C11
SCREEN ASSY., tractor engine side, R.H., for Farmall 544 tractors
1шт.
6
565449R1
CLIP
CLAMP, tractor engine side shield rear, Farmall 544, 656, 706, 756, 806, 826, 856, 1026, 1206, 1256, & 1456 tractor
1шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 C-Z hex-hd. mach.
2шт.
7
165452C1
CLAMP, tractor engine side shield front, for Farmall 1206 and 1256 tractors
2шт.
18626R1
CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2
BOLT, 1/4 x 1/2 C-Z sq-nk. crg.
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
1/4 C-Z whiz lock
4шт.
8
174154C1
SCREEN, engine side, L.H., Farmall 766, 966 and 1066 tractors
1шт.
8
177130C1
SCREEN, engine side, L.H., Farmall 666 tractor
1шт.
18458R1
BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd
5/8 x 1-3/4 hex-hd. mach.
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
21471R1
WASHER
21/32 x 1 x 11 ga. C-Z
2шт.
464623R1
WASHER
21/32 x 1-1/2 x 11 ga.
2шт.
9
174155C1
SCREEN, engine side, R.H., Farmall 766, 966 and 1066 tractors
1шт.
9
177131C1
SCREEN, engine side, R.H., Farmall 666 tractor
1шт.
18458R1
BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd
5/8 x 1-3/4 hex-hd mach
2шт.
124589
BALL STUD,Hex, 5/8" - 11 x 2", Gr 5
5/8 C-Z hex.
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
21471R1
WASHER
21/32 x 1 x 11 ga. C-Z
2шт.
464623R1
WASHER
21/32 x 1-1/2 x 11 ga.
2шт.
Выбрано товаров: 58
