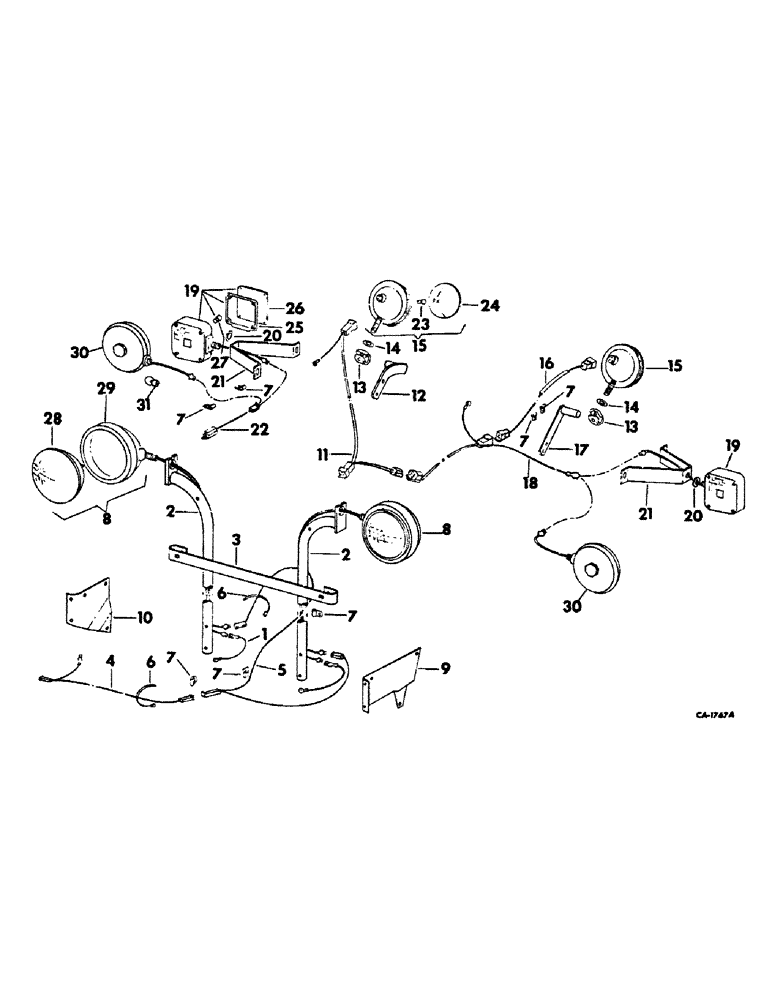

Запчасти Case IH 234 (H-06) - ATTACHMENTS, LIGHTING ATTACHMENT, FARMALL 766, 966 AND 1066 TRACTORS (88) - ACCESSORIES

1

405209R1

CABLE

ASSY., Serial Range: headlight-ground

2шт.

2

174483C1

PIPE ASSY., headlight support

2шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 hex-hd. mach.

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

155679C1

REINFORCEMENT, headlight support pipe

1шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 sq-nk. crg.

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

174452C1

CABLE ASSY., headlight front

1шт.

5

174453C1

CABLE ASSY., headlight rear

1шт.

6

702093C1

CABLE TIE

CLAMP, cable tie

4шт.

6

291207C1

CLAMP

STRAP, headlight front cable tie

1шт.

7

362127R1

CLIP

cable

21шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

2шт.

8

387728R91

LIGHT

ASSY., head, includes ref. nos. 28 and 29

2шт.

120371

NUT,1/2"-20, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

460908R1

WASHER

17/32 x 1-1/2 x 11 ga.

2шт.

9

174460C1

PLATE, headlight pipe support, L.H.

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 hex-hd. mach.

1шт.

10

174461C1

PLATE, headlight pipe support, R.H.

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 hex-hd. mach.

1шт.

11

174455C1

HARNESS ASSY., rear lights, L.H.

1шт.

12

397479R11

SUPPORT

ASSY., rear tractor light

1шт.

13

350920R1

CLAMP

combination rear light

2шт.

14

936476R1

SQ HOLE WASHER

light spacer

4шт.

15

387729R91

LIGHT

ASSY., combination rear & tail, includes ref. nos. 23 and 24

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

16

174456C1

HARNESS ASSY., processing unit tail

1шт.

17

382407R11

BAR

SUPPORT ASSY., processing unit light

1шт.

18

174457C1

HARNESS ASSY., rear light, L.H.

1шт.

19

536679R91

LIGHT

ASSY., flashing warning, square lens, includes ref. nos. 25, 26 and 27

2шт.

120371

NUT,1/2"-20, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20

394262R1

WASHER

GASKET, warning light rubber

2шт.

21

155913C1

BRACKET, warning light mounting

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

22

174458C1

CABLE ASSY., warning light, R.H.

1шт.

23

455490

BULB,C-6, #1003, 12V, .94W

light

2шт.

24

371461R91

LENS

UNIT ASSY., sealed beam

2шт.

25

537010R1

GASKET

warning light, square lens

2шт.

26

537011R1

LENS

warning light red, square lens

1шт.

26

537012R1

LENS

warning light amber, square lens

1шт.

27

9417866

BULB,C6, #1156, 12.8V

warning light

2шт.

28

371443R91

LAMP BASE

UNIT ASSY., sealed beam

2шт.

29

313957R1

RING

RETAINER, light

2шт.

30

67538C91

HEADLAMP

LIGHT ASSY., flasher washer, round lens

2шт.

120371

NUT,1/2"-20, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

31

9417866

BULB,C6, #1156, 12.8V

no. 1156 light

2шт.
