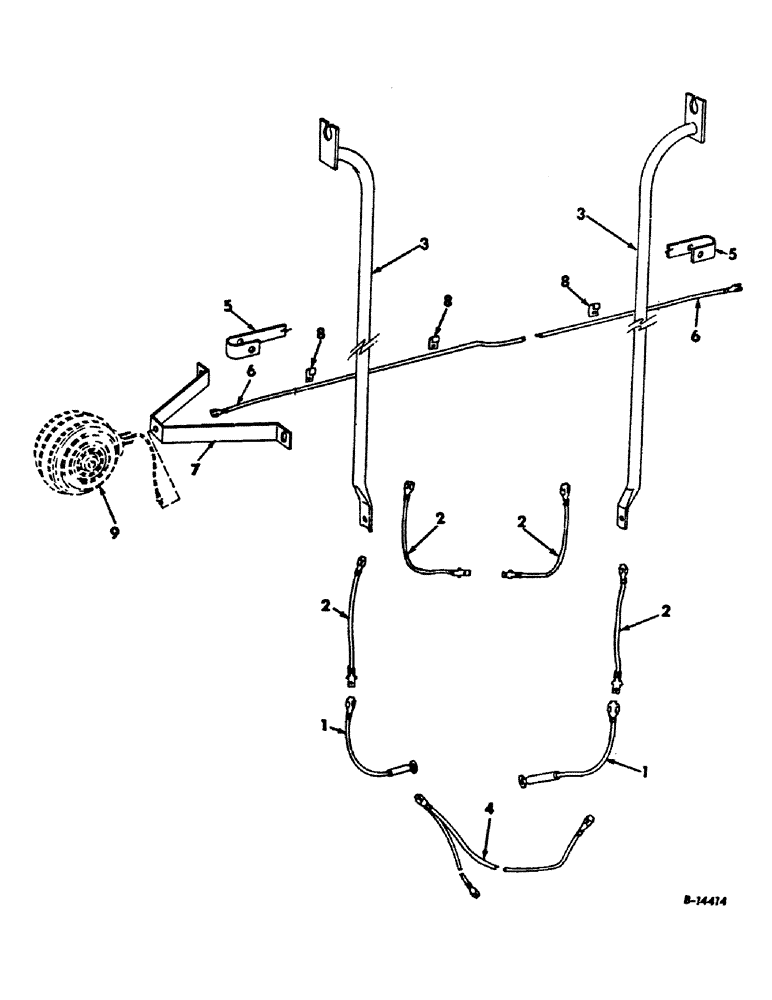

Запчасти Case IH 234 (H-04) - ATTACHMENTS, HEADLIGHT MOUNTING ATTACHMENT, (88) - ACCESSORIES

1

405209R1

CABLE

headlight to ground junction

2шт.

2

153096C91

CABLE ASSY., harness junciton, Serial Range: extension-headlight

4шт.

3

152230C91

PIPE ASSY., headlight support

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd. mach.

2шт.

18768R1

BOLT,Hex, 5/16"-18 x 2 1/4", G2

5/16 x 2-1/2 C-Z hex-hd. mach.

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20893R1

WASHER

21/32 x 1 x 11 ga. C-Z

6шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga. C-Z

2шт.

4

389774R91

CABLE ASSY., headlight junction

1шт.

5

155679C1

REINFORCEMENT, headlight support pipe

1шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 C-Z sq-nk.

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

394343R91

CABLE ASSY., warning light

1шт.

7

155913C1

BRACKET, flasher light mounting

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

2шт.

8

362127R1

CLIP

cable

3шт.

9

LIGHT ASSY., flasher warning, refer to tractor catalogs for listing

1шт.

124984

GOVERNOR

NUT, 1/2-20 C-Z hex. jam

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.
