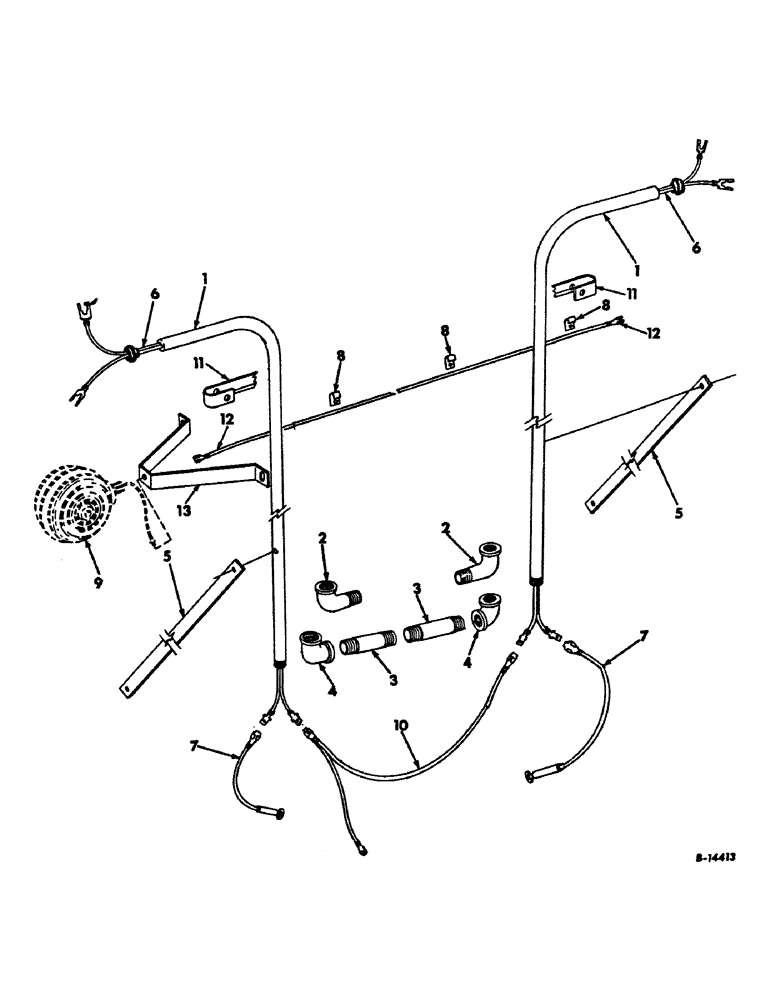

Запчасти Case IH 234 (H-02) - ATTACHMENTS, HEADLIGHT MOUNTING ATTACHMENT, FARMALL SMTA, 300, 350, 400, 450, 460, 504 & 560 TRAC. (88) - ACCESSORIES

1

152419C1

PIPE, headlight support

2шт.

2

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

1/2 90 deg. C-Z street headlight support

2шт.

3

219646

WOOD BLOCK

NIPPLE, headlight support

2шт.

4

127963

ELBOW, 1/2 90 deg. C-Z pipe headlight support

2шт.

5

152539C1

STRIP, headlight support pipe

2шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 x 1-1/2 C-Z hex-hd. mach.

4шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20893R1

WASHER

11/32 x 1 x 11 ga. C-Z

4шт.

6

153097C91

CABLE ASSY., headlight

2шт.

7

405209R1

CABLE

ASSY., Serial Range: headlight-ground

2шт.

8

362127R1

CLIP

cable

3шт.

9

LIGHT ASSY., flasher warning, refer to tractor catalogs for listing

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 C-Z hex. jam

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

389774R91

CABLE ASSY., headlight junction

1шт.

11

155680C1

REINFORCEMENT, headlight support pipe

1шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 C-Z sq-nk.

2шт.

120376

NUT,5/16"-18, G5

2шт.

12

394343R91

CABLE ASSY., warning light

1шт.

13

155913C1

BRACKET, flasher light mounting

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

2шт.
