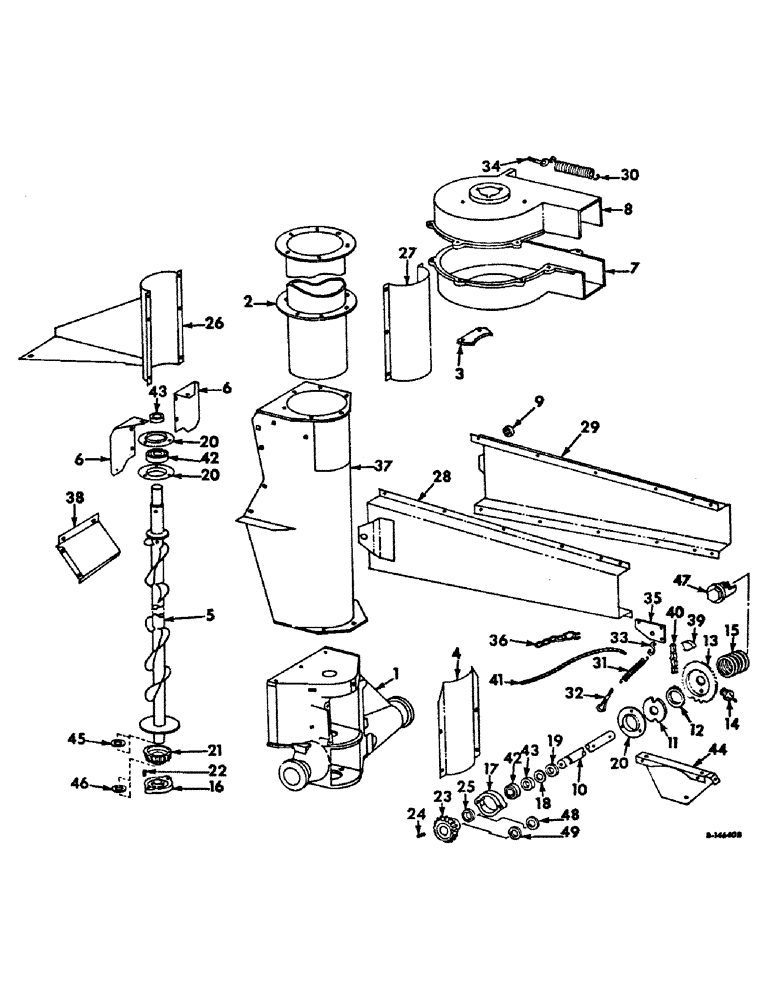

Запчасти Case IH 234 (G-20) - GRINDER AND SHELLER UNITS, WAGON ELEVATOR (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
156520C1
HOUSING, wagon elevator boot
1шт.
2
156521C91
TUBE ASSY., auger elevator
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd. mach.
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
5шт.
120376
NUT,5/16"-18, G5
5шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
3
156523C1
RING, auger top lowwer housing ret.
2шт.
19008R1
PLOW BOLT,#3, 5/16" - 18 x 1 1/4", Gr 2
BOLT, 5/16-18 x 1-1/4 C-Z no. 3 plow
4шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
4
939347R1
COVER, auger boot housing
1шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 C-Z hex-hd. mach.
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
5
156524C91
AUGER ASSY., unloader
1шт.
6
156528C1
SUPPORT, auger upper flight
2шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z sq-nk. crg.
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
7
156529C1
HOUSING, auger elevator top upper
1шт.
18475R1
BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2
5/16 x 1-1/4 C-Z hex-hd. mach.
7шт.
120376
NUT,5/16"-18, G5
7шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
7шт.
8
156530C1
HOUSING, auger elevator top lower
1шт.
9
558506R1
SPACER
elevator discharge pivot
2шт.
18720R1
SCREW,Short NK, 5/8"-11 x 2", G2
BOLT, 5/8 x 2 C-Z sq-nk. crg.
2шт.
425-1410
JAM NUT,Jam, 5/8"-11, G5
5/8-11 C-Z hex. jam
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
21882R1
WASHER, 21/32 x 1-1/2 x 16 ga. C-Z
4шт.
10
156531C1
SHAFT, elevator boot
1шт.
11
156532C1
HOLDER, auger elevator slip clutch
1шт.
12
U1288
RATCHET
auger elevator slip clutch
2шт.
576483R1
LOCK PIN,5/16" x 1 1/2", Slotted
Pin, 5/16" x 1 1/2", Slotted
1шт.
13
156533C1
SPROCKET, elevator slip clutch, 20T
1шт.
14
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/7-28 str. lub.
1шт.
15
H39258
SPRING, elevator slip clutch
1шт.
16
161200C91
HOUSING ASSY., auger lower
1шт.
18684T1
BOLT, 3/8 x 1-1/4 C-Z sq-nk. crg.
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
17
654289R11
HOUSING ASSY.
elevator shaft
1шт.
18685R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2
BOLT, 3/8 x 1-1/2 C-Z sq-nk. crg.
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
18
937158R1
RING, SNAP
RING, auger drive shaft
1шт.
19
939346R1
SPACER
auger drive inner brg.
1шт.
20
462360R1
FLANGED BEARING
brg.
4шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
3шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 C-Z hex-hd. mach.
3шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
21
161199C1
GEAR, wagon auger drive
1шт.
22
937785R1
KEY, wagon auger drive gear
1шт.
23
939344R1
GEAR, auger drive
1шт.
86837293
SHAFT
1/2-20 x 1 C-Z hex-hd. cap
2шт.
22770R1
WASHER
17/32 x 1-1/2 x 7 ga. C-Z
2шт.
24
587016R1
KEY, auger drive gear
1шт.
25
937130R1
SPACER, auger drive gear
1шт.
26
156534C91
CLAMP ASSY., auger elevator support
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z sq-nk. crg.
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
20803R1
WASHER
13/32 x 1 x 11 ga. C-Z
1шт.
27
939390R1
CLAMP, auger elevator support lower
1шт.
16888R1
HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2
BOLT, 5/16 x 1-1/4 C-Z sq-nk. crg.
6шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
28
156537C91
TUBE ASSY., auger elev. discharge, L.H.
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4-20 C-Z whiz lock
10шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4-20 x 1/2 C-Z slt-truss-hd. whiz lock
10шт.
29
156539C91
TUBE ASSY., auger elev. discharge, R.H.
1шт.
30
937439R1
SPRING, auger discharge tube
1шт.
31
939393R1
SPRING
wagon discharge
2шт.
32
575728R91
HOOK ASSY., auger discharge tube sprg.
2шт.
33
457095R1
LINK, wagon spring anchor
5шт.
34
161033C1
EYE BOLT, auger discharge tube spring
7шт.
120376
NUT,5/16"-18, G5
14шт.
21496R1
WASHER
11/32 x 3/4 x 11 ga. C-Z
12шт.
35
161025C1
BAR, auger discharge tube control
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4-20 C-Z whiz lock
2шт.
937059R1
SCREW,Serr, M10 x 70mm, Cl 10.9
1/4-20 x 1/2 C-Z slt-truss-hd. whiz lock
2шт.
36
57515R91
CHAIN ASSY., load leveler control coil
1шт.
37
159791C91
HOPPER ASSY., wagon auger
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
10шт.
120376
NUT,5/16"-18, G5
10шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
10шт.
38
159795C11
SUPPORT ASSY., wagon auger hopper cover
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16-18 x 1/2 C-Z sq-nk. crg.
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
4шт.
39
583619R1
BLOCK
auger drive chain tightener
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
40
CHAIN ASSY., auger elevator drive, use 40 links from 10-ft. roll marked 611362R91, 1 connecting link 574532R91 & 1 offset link 612612R91
1шт.
41
ROPE, load leveler, order from bulk stock 3/8 x 12-1/2 foot
1шт.
42
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
ASSY., auger drive shaft outer
2шт.
43
455102R11
COLLAR
W/SET SCREW, brg. lkg.
2шт.
44
161145C1
COVER, wagon auger hopper
1шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 C-Z hex-hd. mach.
5шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
45
156394C1
WASHER, elev. auger lower shaft
11шт.
46
156830C1
WASHER
gear thrust
2шт.
47
M5510
NUT, elevator slip clutch adj.
1шт.
443173
PIN, 5/16 x 1-1/4 znp. groove
1шт.
48
654283R1
THRUST WASHER
elevator shaft
4шт.
49
654338R1
THRUST WASHER
gear thrust
1шт.
49
169204C1
WASHER, gear shim
1шт.
Выбрано товаров: 107
