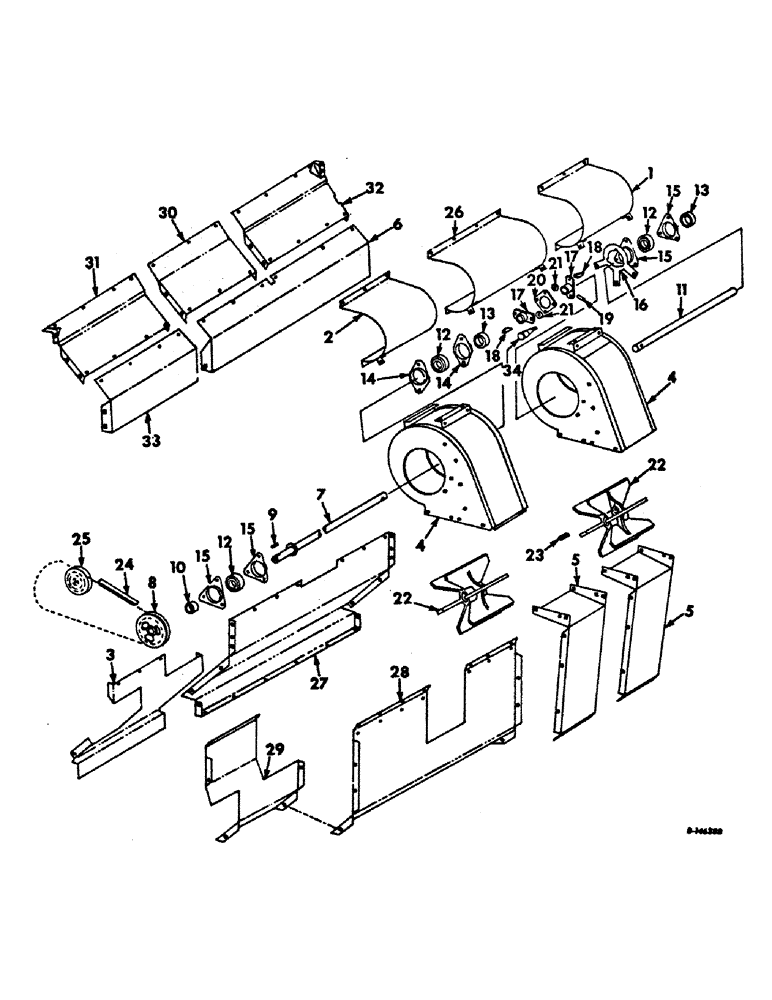

Запчасти Case IH 234 (G-18) - GRINDER AND SHELLER UNITS, FAN AND DRIVE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
152861C11
DUCT ASSY., fan suction upper outer, R.H.
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
2шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 C-Z hex-hd. mach.
6шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
2
168241C11
DUCT ASSY., fan suction upper outer, L.H.
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
2шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 C-Z hex-hd. mach.
6шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
3
152863C11
DUCT ASSY., fan suction lower, L.H.
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
2шт.
20816R1
BOLT, 3/8 x 1/2 C-Z sq-nk. crg.
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
6шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 C-Z slt-truss-hd. whiz lock
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
4
169225C1
HOUSING ASSY., fan
2шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd. mach.
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
5
156572C91
SECTION ASSY., fan discharge
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
6шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
6шт.
6
153203C1
COVER, concave front lower, R.H.
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
4шт.
938017
NUT, 5/16-18 C-Z whiz lock
11шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
7шт.
7
937511R11
SHAFT ASSY., fan L.H.
1шт.
131047
WASHER,7/8"
7/8"
1шт.
21761R1
WASHER
29/32 x 1-1/2 x 16 ga.
4шт.
8
167321C1
PULLEY, fan driven
1шт.
181637
SCREW, 3/8-24 x 1 C-Z hex-hd. cap
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
614452R1
WASHER
13/32 x 1-1/4 x 11 ga. C-Z
1шт.
9
150532C1
KEY
fan driven hub
1шт.
10
522077R1
SPACER
fan drive pulley
1шт.
11
937512R1
SHAFT, fan, R.H.
1шт.
12
673365R91
BALL BEARING,0.875" ID x 52 mm OD x 1.375"
ASSY., fan shaft outer ball
3шт.
13
658006R11
COLLAR
W/SET SCREW, lkg.
2шт.
14
155265C1
FLANGE
fan shaft brg., 2 hole
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
2шт.
15
571424R1
FLANGE
fan shaft brg.
4шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
6шт.
16
626957R1
SUPPORT, fan brg.
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
3шт.
17
626959R91
HUB ASSY., fan shaft coupling
2шт.
18
126-121
WOODRUFF KEY,#A, 1/4" x 7/8", HT
KEY, 1/4 x 7/8 ast. Woodruff A fan shaft coupling hub
2шт.
19
QA652
PIN, fan shaft coupling hub
2шт.
648002
KNIFE
1/8" x 3/4"
2шт.
20
43549D
PLATE ASSY.
DISC, fan shaft coupling
1шт.
21
356588R1
RETAINER
coupling rubber washer
8шт.
21
43550D
RUBBER WASHER
fan shaft coupling rubber
8шт.
22
575988R2
FAN
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
102898
SET SCREW,Sq Hd, 3/8"-16 x 1 1/2"
SCREW, 3/8-16 x 1-1/2 sq-hd. cup-pt. set
2шт.
23
126
KEY,1/4" Sq x 2 1/2", Par
1/4 x 2-1/2 sq-parallel fan
2шт.
24
588894R1
V-BELT,0.63" W
Fan drive 0.63" W
1шт.
25
161430C91
PULLEY
fan drive tightener
1шт.
20314R1
BOLT,Short NK, 1/2"-13 x 2 1/2", G2
1/2 x 2-1/2 C-Z sq-nk. crg.
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
178374R1
WASHER
17/32 x 1-1/4 x 16 ga. C-Z
7шт.
26
152865C11
DUCT ASSY., fan suction upper inner
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
2шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 C-Z hex-hd. mach.
8шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
27
152859C11
DUCT ASSY., fan suction lower, R.H.
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
4шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk. crg.
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
10шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
28
153205C11
COVER ASSY., concave rear, R.H.
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
3шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
3шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
7шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
13шт.
29
153216C11
COVER ASSY., concave rear, L.H.
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
5шт.
63226R1
SCREW, 5/16 x 1/2 C-Z whiz lock
3шт.
30
167314C1
COVER, concave front upper inner
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
7шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 C-Z whiz lock
3шт.
31
168242C11
COVER ASSY., concave front upper outer L.H.
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
7шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16-18 x 1/2 C-Z whiz lock
4шт.
32
167316C11
COVER ASSY., concave front upper outer, R.H.
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
7шт.
632226C1
SCREW, 5/16-18 x 1/2 C-Z whiz lock
4шт.
33
155911C1
COVER, concave front lower, L.H.
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16-18 C-Z whiz lock
6шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
4шт.
34
43552DB
STEP BOLT,Hex, 3/8" - 24 x 1 15/16"
SCREW, fan shaft coupling
4шт.
120369
NUT,3/8"-24, G5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
Выбрано товаров: 108
