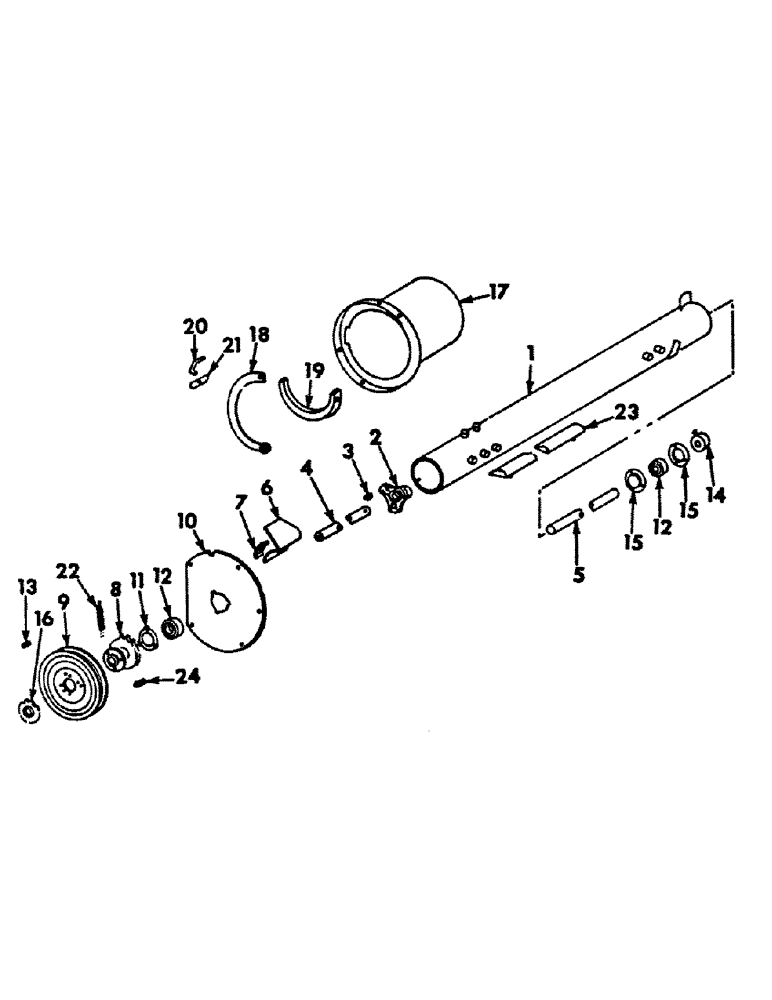

Запчасти Case IH 234 (G-17) - GRINDER AND SHELLER UNITS, SHELLER ROTOR UNIT (58) - ATTACHMENTS/HEADERS

1

937451R91

ROTOR ASSY., sheller

1шт.

2

937454R1

HUB, sheller rotor

4шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 hex-hd. type 8

6шт.

366864C1

LOCK WASHER,1/2"

1/2"

6шт.

3

117998

WOODRUFF KEY,#G, 3/8" x 1 1/2", HT

KEY, rotor hub inner, L.H.

1шт.

4

161120C1

SHAFT, rotor stub, L.H.

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

22775R1

PIN

3/8 x 2-1/2 C-Z std-hd.

1шт.

181696

1/2-20 x 1 C-Z hex-hd. cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22812R1

WASHER

1-15/32 x 2 x 16 ga. C-Z

9шт.

486801R1

WASHER

17/32 x 2 x 1/4 C-Z hard

1шт.

5

937458R1

SHAFT, rotor stub, R.H.

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

22775R1

PIN

3/8 x 2-1/2 C-Z std-hd.

1шт.

6

153206C2

FLIGHT, leaf discharge

3шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 hex-hd. type 8

6шт.

366864C1

LOCK WASHER,1/2"

1/2"

6шт.

7

163534C1

CLAMP, discharge flight

3шт.

8

156392C91

SPOCKET ASSY., rotor driven, 36T

1шт.

9

564569R11

PULLEY ASSY.

rotor fan drive

1шт.

18778T1

BOLT, 3/8 x 3/4 C-Z hex-hd. mach.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

10

153207C1

COVER, rotor end

1шт.

11

155959C11

HOUSING W/BRG., rotor, includes ref. no. 12

1шт.

12

570043R91

BALL BEARING,1.4375" ID x 72 mm OD x 2.1"

ASSY., rotor housing

2шт.

13

454353R1

KEY,3/8" Sq x 1", Par

3/8 x 1 sq. parallel dr. sprocket

1шт.

14

557113R11

COLLAR

W/SET SCREW, brg., lkg.

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8 hex-soc-hd. set

1шт.

15

617863R1

FLANGED BEARING

rotor stub shaft brg.

2шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk. crg.

3шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

16

155961C1

SPROCKET, shelled corn auger drive, 9T

1шт.

17

156875C91

CONCAVE ASSY., extension

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex-hd. cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

619856R1

WASHER

13/32 x 1 x 16 ga. C-Z

6шт.

18

156881C91

RING ASSY., adjustable retarder

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/2 C-Z std-hd.

1шт.

19

156882C1

SECTION, concave retarder

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd. cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga. C-Z

3шт.

20

156883C1

ROD, retarder adjustment

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga.

2шт.

21

159260C1

BRACE, retarder adj. bolt

1шт.

22

CHAIN ASSY., rotor drive roller, use 105 links of chain from a 10-ft. roll marked 1793D, one connecting link 1786D

1шт.

23

159949C11

BAR W/STUDS, concave

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga. C-Z

3шт.

24

937057R1

KEY, rotor driven sprocket

1шт.
