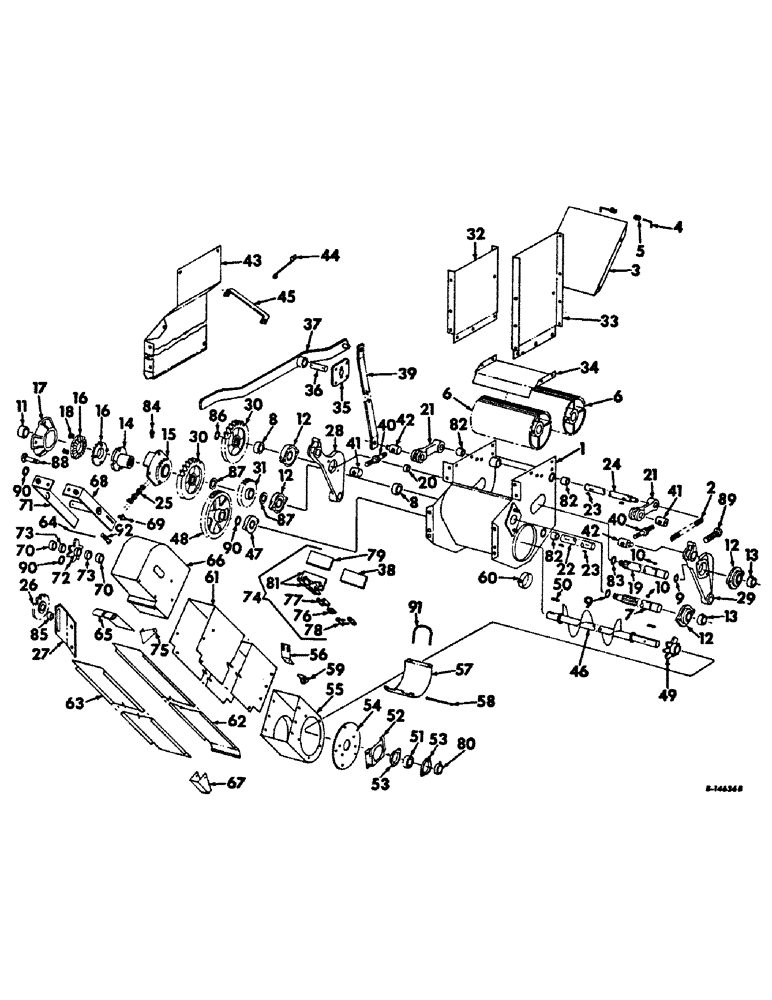

Запчасти Case IH 234 (G-14) - GRINDER AND SHELLER UNITS, CRACKING ROLLS AND CONVEYOR (58) - ATTACHMENTS/HEADERS

1

153245C91

FRAME ASSY., cracking roll, includes ref. no. 82

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk. crg.

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

2

R13109

SPRING, cracking roll adj. arm

1шт.

3

153250C11

DOOR ASSY., cracking roll housing

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

1шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16-18 znp. nylon insert

2шт.

4

611044R1

AXLE PIN,6.35mm OD

PIN, door locking

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga. C-Z

2шт.

5

606245R1

SPRING

locking pin

2шт.

6

153251C1

ROLL, cracking

2шт.

7

153252C1

SHAFT, cracking roll inner

1шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znp. nylon insert

1шт.

178139

WASHER, 1-3/16 C-Z med. lock

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga. C-Z

1шт.

8

153258C1

SPACER, cracking roll inner

2шт.

9

156510C1

RING, cracking roll shaft snap

2шт.

10

88745

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

KEY, 5/16 x 2-1/8 ast. Woodruff 28

2шт.

11

155685C1

SPACER

cracking roll shaft slip clutch

1шт.

12

153255C11

HOUSING W/BRG., cracking roll

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd. cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

13

557117R11

COLLAR

COLLAR W/SET SCREW, brg. lkg.

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 hex-soc-hd cup-pt set

2шт.

14

632129R1

BUSHING

HUB, cracking roll slip clutch

1шт.

15

632130R1

SPROCKET, cracking roll drive, 14T

1шт.

16

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

17

632152R2

RETAINER

slip clutch

1шт.

18

28395H

SPRING

slip clutch

4шт.

19

153257C1

SHAFT, cracking roll outer

1шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znp. nylon insert

1шт.

178139

WASHER, 1-3/16 C-Z med. lock

1шт.

20

161096C1

SPACER, outer cracking roll inner

1шт.

21

153259C1

ARM, cracking roll adj.

2шт.

22

153295C1

SHAFT, cracking roll lever pivot

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga. C-Z

2шт.

23

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

KEY, 1/4" x 7/8" ast. Woodruff

4шт.

24

161499C1

SHAFT, cracking roll lever pivot upper

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga. C-Z

2шт.

25

CHAIN ASSY., cracking roll drive, use 57 links from 10-ft. roll marked 611362R91 and 1 connecting link 574532R91

1шт.

26

629972R91

DRIVE SPROCKET,15T

SPROCKET, drive idler

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 C-Z hex-hd. mach.

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga. C-Z

2шт.

21759R1

WASHER

21/32 x 2 x 11 ga. C-Z

2шт.

27

153297C1

BRACKET, drive chain tightener

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk. crg.

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

28

156863C1

LEVER, cracking roll pivot front

1шт.

29

156864C1

LEVER, cracking roll pivot rear

1шт.

30

156860C1

GEAR, cracking roll drive, 22T

2шт.

31

156861C1

GEAR, cracked corn auger drive, 21T

1шт.

32

156990C1

SECTION, housing front support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

3шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk. crg.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

33

156992C1

SECTION, housing rear support

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg.

5шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk. crg.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

34

156993C1

SECTION, cracking roll housing support side

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

4шт.

35

156994C1

HUB, lever support

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

36

161098C1

PIN, lever support bracket

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

1шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga. C-Z

1шт.

37

156995C11

LEVER ASSY., cracking roll adj.

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

38

155859C1

FLIGHT, elevator conveyor steel

2шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 small b-hd.

4шт.

39

156997C1

SUPPORT, cracking roll adj. lever link

1шт.

40

161099C11

STUD ASSY., cracking roll adj.

2шт.

22210R1

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW, 5/16-18 x 1/2 C-Z hex-soc-hd. cup-pt. set

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga. C-Z

1шт.

41

156998C1

PIN, cracking roll pivot lever

2шт.

42

156999C1

PIN, cracking roll adj. arm

2шт.

43

161184C1

SECTION, gear shield

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

3шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

3шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

6шт.

44

161185C1

SUPPORT, gear shield upper

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

1шт.

45

161186C1

CHANNEL, gear shield lower

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

1шт.

46

152883C91

AUGER ASSY., cracked corn

1шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

86837293

SHAFT

1/2-20 x 1 C-Z hex-hd. cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22770R1

WASHER

17/32 x 1-1/2 x 7 ga. C-Z

1шт.

47

161418C11

HOUSING W/BRG., auger front brg.

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk. crg.

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga.

6шт.

48

152890C1

GEAR, cracked corn auger driven, 45T

1шт.

49

152891C1

SPROCKET, cracked corn elevator boot, 6T

1шт.

50

150532C1

KEY

auger sprocket

2шт.

51

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY., auger shaft rear ball

1шт.

52

161416C1

BRACKET, auger rear brg.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

4шт.

53

155265C1

FLANGE

auger shaft rear brg.

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

2шт.

54

158742C1

REINFORCEMENT, auger rear brg.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

5шт.

55

156193C91

BOOT ASSY., cracked corn elevator

1шт.

56

158743C1

REINFORCEMENT, elevator boot

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

4шт.

57

156236C1

DOOR, elevator boot

1шт.

564457R1

PIN, elevator boot door hinge

1шт.

59

155909C1

LATCH

elevator door

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

21987R1

PIN, 1/4 x 1-1/8 C-Z std-hd.

1шт.

60

156195C1

CLAMP, elev.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

2шт.

632226C1

SCREW, 5/16-18 x 1/2 C-Z slt-truss-hd. whiz lock

2шт.

61

152887C1

CHANNEL, cracked corn elevator

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

6шт.

62

152888C1

SECTION, cracked corn elevator upper

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

6шт.

63

152889C1

SECTION, cracked corn elevator lower

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

7шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

7шт.

64

564451R1

SPACER, elevator

1шт.

18683C1

BOLT, 5/16 x 6 C-Z sq-nk. crg.

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga. C-Z

1шт.

65

156212R91

SHIELD ASSY., cracked corn elevator hd. shaft

1шт.

66

156214C91

HEAD ASSY., cracked corn elevator

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

5шт.

67

156218C1

CHANNEL, elevator upper

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk. crg.

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

68

156361C91

SHAFT ASSY., elevator head rear

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

69

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

70

585464R1

SPACER

elevator head shaft

2шт.

71

156363C11

SUPPORT ASSY., elev. hd. shaft front

1шт.

72

156360C1

SPROCKET W/BUSHINGS, elevator head shaft, 6T, includes ref. no. 73

1шт.

73

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

sprocket

2шт.

74

156219C91

CONVEYOR ASSY., cracked corn elevator, includes ref. nos. 38, 76 thru 79 and 81

1шт.

75

159854C1

ANGLE, elevator discharge spout

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

76

588566R91

LINK

roller

43шт.

77

150722C91

LINK

attachment

14шт.

78

937913C91

LINK, connecting

1шт.

79

155652C1

FLIGHT, elevator conveyor rubber

12шт.

558430R1

RIVET

flight

24шт.

80

455102R11

COLLAR

W/SET SCREW, brg. lock

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd. cup-pt. set

1шт.

81

155857C91

SERVICE FLIGHT, conveyor chain

1шт.

82

564116R1

BUSHING

cracking roll pivot

4шт.

83

585961T1

WASHER, cracking roll shaft

5шт.

84

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

85

320993R1

SPACER,7/8" Tube x 1/2"

tightener sprocket

1шт.

86

584253R1

WASHER

cracking roll outer shaft

1шт.

87

581074R1

WASHER, cracking roll shaft

5шт.

88

587021R1

BOLT,Sq Nk, 7/16" - 14 x 3", Drilled

slip clutch spring

4шт.

425-127

SLOTTED NUT,7/16"-14, G5

NUT, 7/16 C-Z slt. hex.

4шт.

121224

SUPPORT

3/32" x 1"

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga. C-Z

12шт.

89

583956R1

BOLT, cracking roll adjusting

2шт.

272122

BUSHING

7/16 C-Z hex-jam

2шт.

90

654283C1

WASHER, auger shaft & elev. hdshaft.

10шт.

91

664360R1

BOLT,U, 1/4" - 20 x 69.65"

elevator door bail

1шт.

86625061

NUT,1/4"-20, GB

NUT, 1/4 znd. nylon insert

2шт.

92

610762R1

BOLT, elevator headshaft adj.

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.
