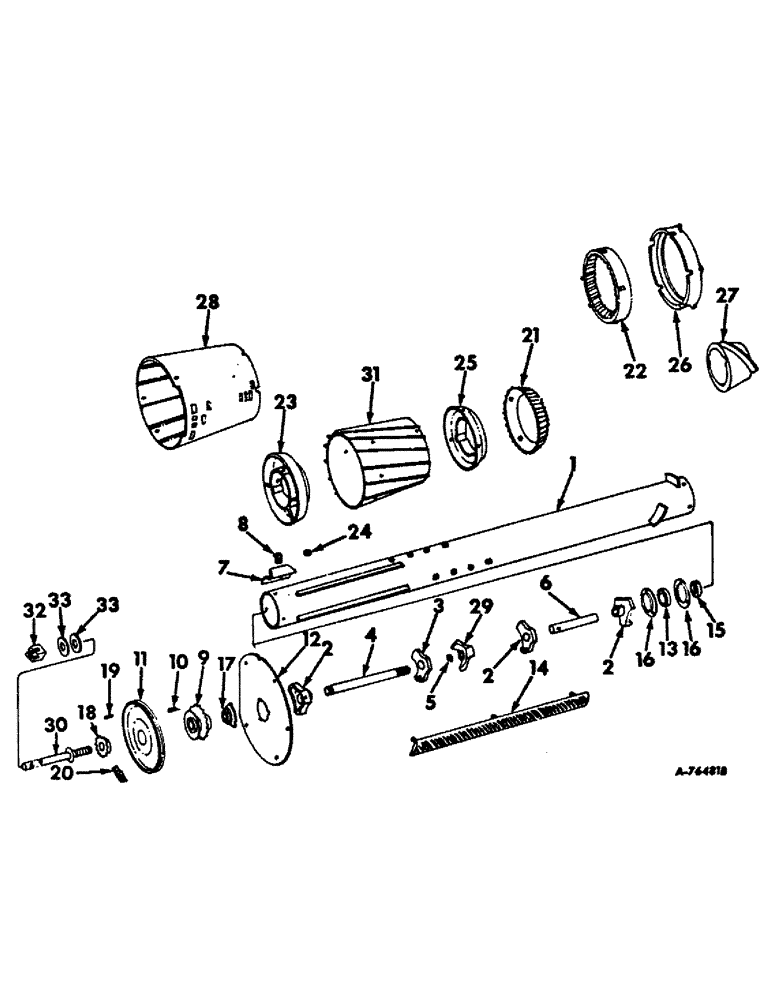

Запчасти Case IH 234 (G-12) - GRINDER AND SHELLER UNITS, GRINDER AND CYLINDER (58) - ATTACHMENTS/HEADERS

1

153219C91

ROTOR ASSY., grinder

1шт.

2

164856C1

HUB, rotor, outer & R.H. inner

3шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 hex-hd. type 8

6шт.

366864C1

LOCK WASHER,1/2"

1/2"

6шт.

3

155958C1

HUB, rotor, L.H. inner

1шт.

4

153201C1

SHAFT, rotor stub, L.H.

1шт.

127710

NUT

N-07 4 slot brg. lock

1шт.

127687

PLATE

W-07 brg. lock

1шт.

22812R1

WASHER

1-15/32 x 2 x 16 ga. C-Z

9шт.

5

26540D

RING, SNAP

1шт.

6

937458R1

SHAFT, rotor, R.H.

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

22775R1

PIN

3/8 x 2-1/2 C-Z std-hd.

1шт.

7

153206C2

FLIGHT, leaf discharge

3шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 hex-hd. type 8

6шт.

366864C1

LOCK WASHER,1/2"

1/2"

6шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 C-Z hex-hd. cap

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

8

163534C1

CLAMP, discharge flight

3шт.

9

156392C91

SPROCKET, assy. rotor driven, 36T

1шт.

10

937057R1

KEY, rotor driven sprocket

1шт.

11

564569R11

PULLEY ASSY.

rotor fan drive

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd. mach.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

12

153207C1

BRACKET, cover rotor end

1шт.

13

570043R91

BALL BEARING,1.4375" ID x 72 mm OD x 2.1"

ASSY., rotor stub shaft ball

1шт.

14

159949C11

BAR W/STUDS, concave

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga. C-Z

3шт.

15

557113R11

COLLAR

W/SET SCREW, brg. lkg.

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd. cup-pt. set

1шт.

16

617863R1

FLANGED BEARING

rotor stub shaft brg.

2шт.

17

155959C11

HOUSING W/BRG., rotor

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk. crg.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

18

155961C1

SPROCKET, shelled corn auger drive, 9T

1шт.

19

454353R1

KEY,3/8" Sq x 1", Par

3/8 x 1 sq. parallel drive sprocket

1шт.

20

CHAIN ASSY., rotor drive roller, use 105 links from 10-ft. roll marked 1793D, one connecting link 1786D

1шт.

21

153224C1

RING, grinder inner

1шт.

22

153225C1

RING, grinder outer

1шт.

23

153226C1

RETAINER, grinder cylinder

1шт.

24

586329R1

SPACER,3/4" Tube x 13/16"

cylinder adj. retainer

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd. cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga. C-Z

3шт.

25

153227C1

RETAINER, grinder inner ring

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 C-Z hex-hd. cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga. C-Z

3шт.

26

153228C1

RETAINER, grinder outer ring

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z hex-hd. cap

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

27

153230C1

EXTENSION, grinder ring

1шт.

28

153233C91

CONCAVE ASSY., cob

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd. cap

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

619856R1

WASHER

13/32 x 1 x 16 ga. C-Z

7шт.

29

153241C1

RETAINER, cylinder adj.

1шт.

30

153240C11

ROD ASSY., cylinder adj.

1шт.

31

153242R92

CYLINDER ASSY., grinder

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-18 x 1 C-Z hex-hd. cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

615856R1

WASHER, 13/32 x 1 x 16 ga. C-Z

6шт.

32

153239C1

NUT, grinder cylinder adj.

1шт.

17132T1

PIN, 1/4 x 1 slt. spring

1шт.

33

155960C1

BELLEVILLE WASHER

spring

2шт.
