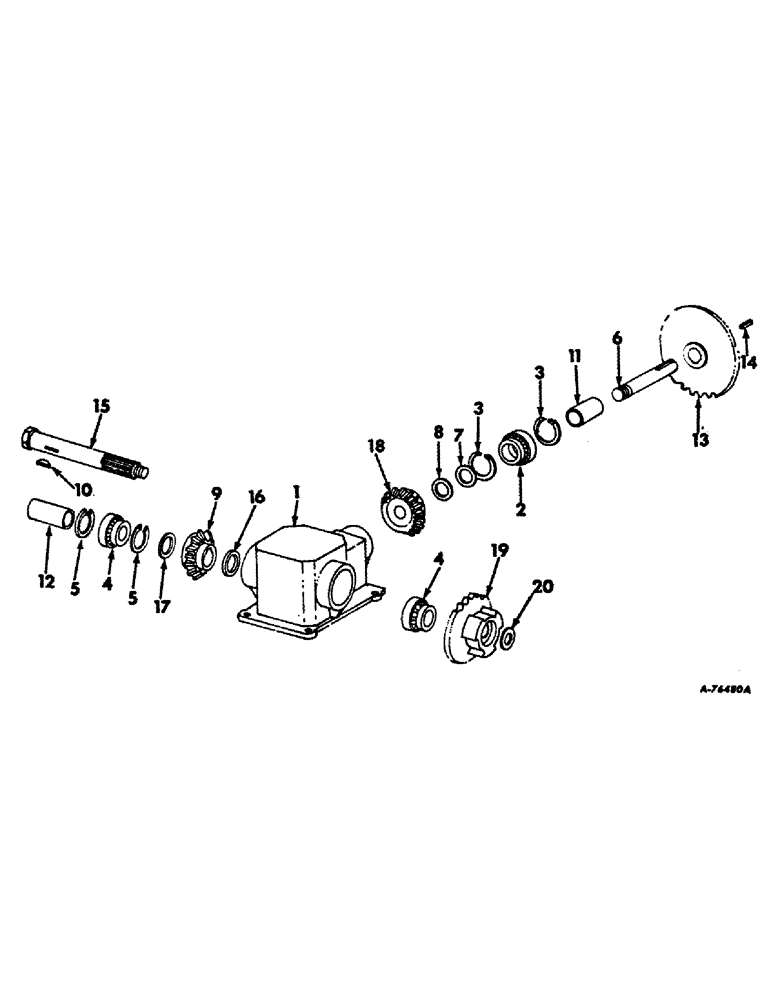

Запчасти Case IH 234 (G-06) - GRINDER AND SHELLER UNITS, CRACKING ROLL DRIVE (58) - ATTACHMENTS/HEADERS

1

156388C1

HOUSING, cracking roll drive gear

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 C-Z hex-hd. mach.

4шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

21902R1

WASHER, 15/32 x 1-1/2 x 16 ga. C-Z

16шт.

2

586609R91

BALL BEARING

BEARING ASSY., drive gear housing ball

2шт.

3

555602R1

RING

drive gear housing brg. snap

2шт.

4

566632C91

BEARING ASSY., auger input shaft ball

2шт.

5

360936R1

RING

auger dr. input shaft brg. snap

2шт.

6

159838C1

SHAFT, auger drive output

1шт.

181696

1/2-20 x 1 C-Z hex-hd. cap

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

22770R1

WASHER

17/32 x 1-1/2 x 7 ga. C-Z

1шт.

7

654283R1

THRUST WASHER

drive shaft

3шт.

8

654338R1

THRUST WASHER

gear thrust

1шт.

8

169204C1

WASHER, gear shim

1шт.

9

159756C1

GEAR, elevator drive bevel, 18-T

1шт.

10

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 ast Woodruff B

1шт.

11

159839C1

SPACER, output shaft brg.

1шт.

12

152894C1

SPACER, auger elevator gear case input shaft

1шт.

13

152895C1

SPROCKET, auger elevator drive, 26T

1шт.

14

150532C1

KEY

drive sprocket

1шт.

15

152897C11

SHAFT ASSY., auger elev. dr. input

1шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znp. nylon insert

1шт.

16

585961R1

WASHER, input shaft coupling

4шт.

17

161457C1

WASHER, gear thurst

2шт.

18

654281C1

GEAR, cracking roll drive coupling

1шт.

19

156389C1

SPROCKET, auger elevator drive coupling, 21-T

1шт.

20

151401C1

BELLEVILLE WASHER

WASHER, auger elev. drive shaft input

1шт.
