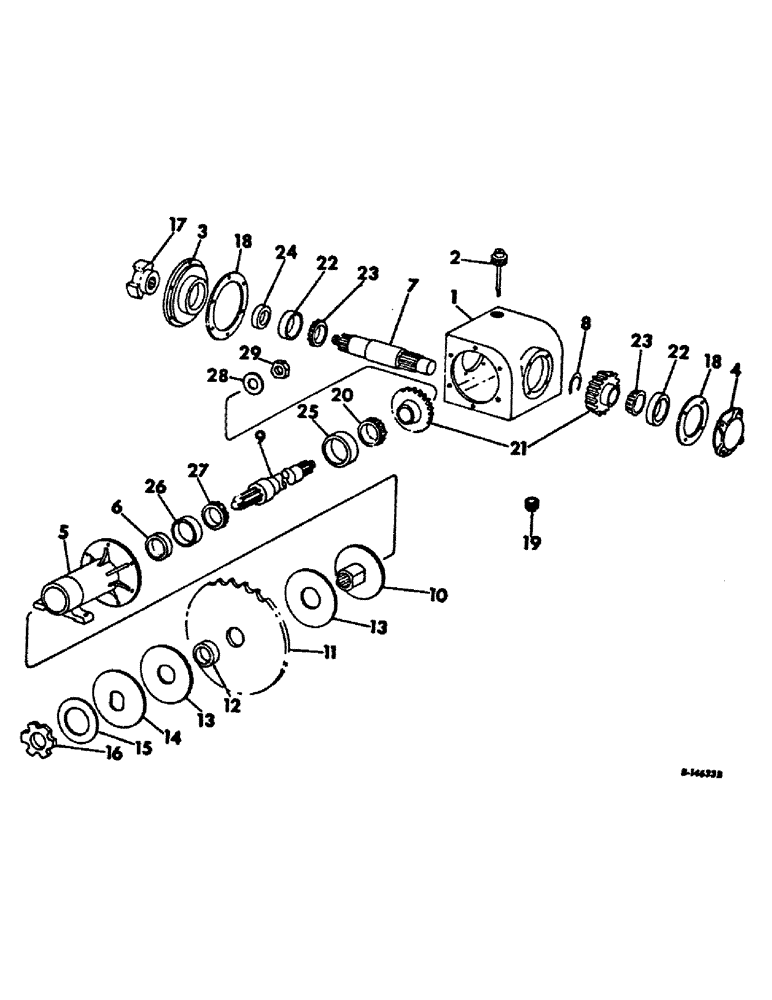

Запчасти Case IH 234 (G-04) - GRINDER AND SHELLER UNITS, MAIN DRIVE GEARS AND CASE (58) - ATTACHMENTS/HEADERS

1

156544C1

CASE, main drive

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8 x 1-1/2 hex-hd. cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga.

16шт.

2

161270C91

PLUG ASSY., gear case filler dipstick

1шт.

3

156545C11

HUB W/BRG. CUP GEAR CASE FRONT BRG., includes ref. no. 22

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd. cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

4

156549C11

RETAINER W/BRG. CUP, gear case rear brg., includes ref. no. 22

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd. cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

156550C11

HOUSING W/BRG. CUPS, main drive output, includes ref. nos. 25 and 26

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 hex-hd. cap

6шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 2 C-Z hex-hd. cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

22771R1

WASHER

21/32 x 1-1/4 x 22 ga.

4шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga.

10шт.

6

156553C91

SEAL, rear case output housing

1шт.

7

156554C1

SHAFT, main drive input

1шт.

8

564405R1

RING, SNAP

RING, main drive gear snap

1шт.

9

156557C91

SHAFT ASSY., main drive output

1шт.

10

156560C1

HUB, main drive slip clutch

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga. C-Z

4шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znp. nylon insert

1шт.

11

156563C91

SPROCKET W/BUSHING, slip clutch, 48T, includes ref. no. 12

1шт.

12

592954R1

BUSHING

slip clutch sprocket

1шт.

13

592952C1

FACING, main drive slip clutch

2шт.

14

592955R1

PLATE

main dr. slip clutch pressure

1шт.

15

460235R1

WASHER

slip clutch spring

3шт.

16

592957R1

COLLAR

slip clutch outer

1шт.

191151

SEALING STRIP

SCREW, 5/16 x 3/4 C-Z hex-soc-hd. cup

1шт.

17

155561C1

COUPLING, main drive

1шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znp. nylon insert

1шт.

18

168658C91

SHIMS, gear case, service package, Consists of

1шт.

156546C1

YELLOW .020

2шт.

156547C1

TRANS .0075

4шт.

675955R1

TRANS .005

2шт.

156548C1

BLUE .005

4шт.

672953R1

SHIM

YELLOW .020

1шт.

672954R1

SHIM

BLUE .007

2шт.

19

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4 automotive sq-hd. pipe drain

1шт.

20

156552C91

ROLLER BEARING

CONE, inner tapered roller brg.

1шт.

21

159374C91

GEAR SET, main drive, purch.

1шт.

22

13324D

BEARING CUP,2.391" ID x 3.001" OD x 0.952"

CUP, gear case front tapered roller brg.

2шт.

23

13330DB

BEARING

CONE, gear case front tapered roller brg.

2шт.

24

327134R91

GUARD ASSY.

SEAL, front brg. oil

1шт.

25

130503H

BEARING CUP

CUP, inner tapered roller brg.

1шт.

26

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

CUP, outer tapered roller brg.

1шт.

27

459454R91

ROLLER BEARING,1.563" ID x 1.01"

CONE, outer tapered roller brg.

1шт.

28

62177V

WASHER

main drive driven gear

3шт.

29

10495D

NUT

main drive shaft

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.
