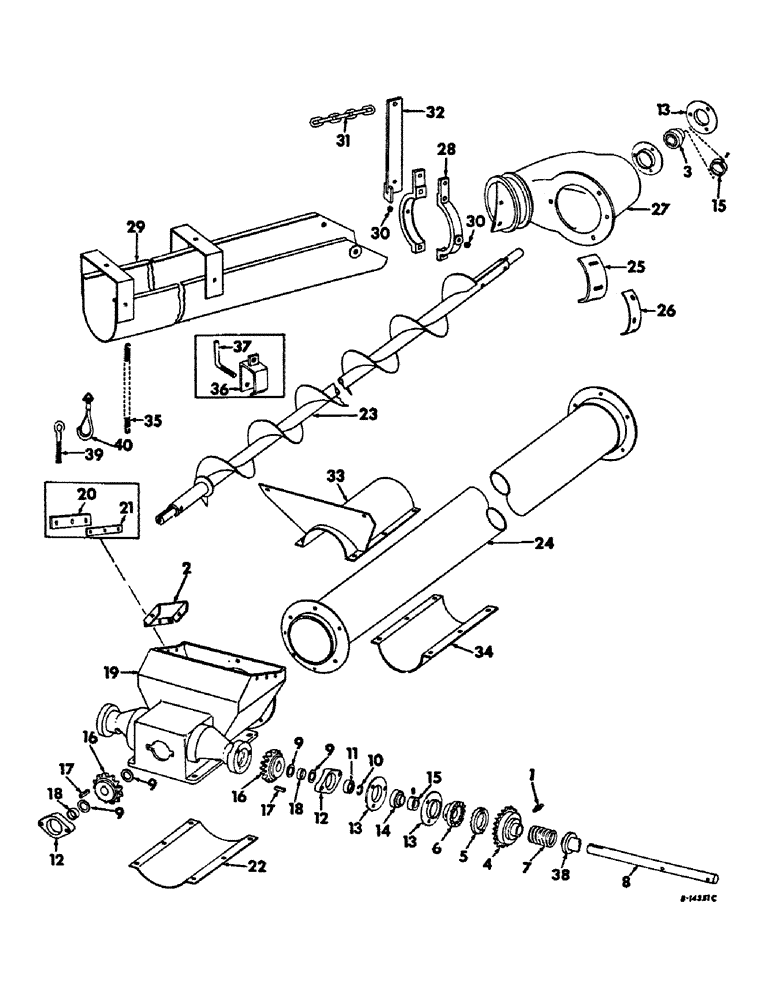

Запчасти Case IH 234 (F-16) - SHELLER, WAGON ELEVATOR, AUGER TYPE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28 straight lubrication
1шт.
2
159914C1
SUPPORT, auger housing extension, serial no. 1885 and above
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
5шт.
120376
NUT,5/16"-18, G5
5шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
3
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
ASSY., auger upper ball
1шт.
4
U1911
SPROCKET, auger drive slip clutch, 19-T
1шт.
5
U1288
RATCHET
auger drive slip clutch
1шт.
6
U1422
HUB, auger drive slip clutch ratchet
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
21965R1
HEADED PIN,3/8" x 2 3/8"
PIN, 3/8 x 2-3/8 C-Z std-hd.
1шт.
7
H39258
SPRING, auger drive slip clutch
1шт.
8
939345R1
SHAFT, auger drive
1шт.
9
654283R1
THRUST WASHER
auger drive shaft .060
1шт.
9
654338R1
THRUST WASHER
gear thrust .030
2шт.
9
169204C1
WASHER, gear shim .048
2шт.
10
937158R1
RING, SNAP
RING, auger drive shaft snap
1шт.
11
939346R1
SPACER
auger drive inner brg.
1шт.
12
654289R11
HOUSING ASSY.
HOUSING W/BEARING, auger drive shaft inner brg.
2шт.
18685R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2
BOLT, 3/8 x 1-1/2 C-Z sq-nk. crg.
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
13
462360R1
FLANGED BEARING
auger drive shaft brg.
4шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
3шт.
18474R1
BOLT,Hex, 5/16" - 18 x 1", Gr 2
5/16 x 1 C-Z hex-hd. mach.
3шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
14
455965R91
BALL BEARING,1.0005" ID x 52 mm OD x 15 mm
ASSY., auger drive shaft outer
1шт.
15
455102R11
COLLAR
W/SET SCREW, bearing
2шт.
16
939344R1
GEAR, auger drive, 18-T
2шт.
181696
1/2-20 x 1 C-Z hex-hd. cap
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
22770R1
WASHER
17/32 x 1-1/2 x 7 ga. C-Z
2шт.
17
587016R1
KEY, auger drive gear
2шт.
18
937130R1
SPACER, auger drive gear
2шт.
19
939336R1
HOUSING, auger boot, serial no. 1884 and below
1шт.
19
159879C1
HOUSING, unloader auger boot, serial no. 1885 and above
1шт.
20
151397C1
SEAL, auger hopper, serial no. 1884 and below
2шт.
21
939343R1
STRAP, hopper seal, serial no. 1885 and below
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
6шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
22
939347R1
COVER, clean-out
1шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 C-Z hex-hd. mach
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
23
939361R92
AUGER ASSY., unloader
1шт.
24
939348R91
PIPE ASSY., auger tube
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
6шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
25
151946C1
SEAL, auger discharge, gravity discharge spout
1шт.
26
151947C1
STRIP, auger discharge, gravity discharge spout
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
3шт.
120376
NUT,5/16"-18, G5
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
27
939358R1
HOUSING, tube top, gravity discharge spout
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
4шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
28
939368R1
CLAMP, spout att., gravity discharge spout
2шт.
18779R1
BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2
3/8 x 1-1/2 C-Z hex-hd.
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
29
939376R91
SPOUT ASSY., discharge, gravity discharge spout
1шт.
30
556587R1
SPACER
discharge trough pivot, gravity discharge spout
2шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 C-Z hex-hd. mach.
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
619856R1
WASHER
13/32 x 1 x 16 ga. C-Z
2шт.
31
575726R91
CHAIN ASSY., discharge trough coil, gravity discharge spout
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z sq-nk. crg.
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 C-Z hex-hd. mach.
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
619856T1
WASHER, 13/32 x 1 x 16 ga. C-Z
2шт.
32
939384R91
STRAP ASSY., trought hanger, gravity discharge spout
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
21964R1
HEADED PIN,3/8" x 1 1/2"
PIN, 3/8 x 1-1/2 C-Z std-hd.
1шт.
33
939389R91
CLAMP ASSY., elevator support
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z sq-nk. crg.
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
20803R1
WASHER
13/32 x 1 x 11 ga. C-Z
1шт.
34
939390R1
CLAMP, support
1шт.
16888R1
HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2
BOLT, 5/16 x 1-1/4 C-Z sq-nk. crg.
6шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
35
939393R1
SPRING
discharge trough
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga. C-Z
2шт.
36
939394R91
CLAMP ASSY., discharge trough, serial no. 1990 and below
2шт.
37
939396R1
BOLT, discharge trough clamp, serial no. 1990 and below
2шт.
38
M5510
NUT, auger drive slip clutch adj.
1шт.
443173
PIN, 5/16 x 1-1/4 groove
1шт.
39
161033C1
BOLT, discharge spring eye, serial no. 1991 and above
6шт.
120376
NUT,5/16"-18, G5
12шт.
21964R1
HEADED PIN,3/8" x 1 1/2"
WASHER, 11/32 x 3/4 x 11 ga. C-Z
12шт.
40
575728R91
HOOK ASSY., discharge spring, serial no. 1991 and above
2шт.
