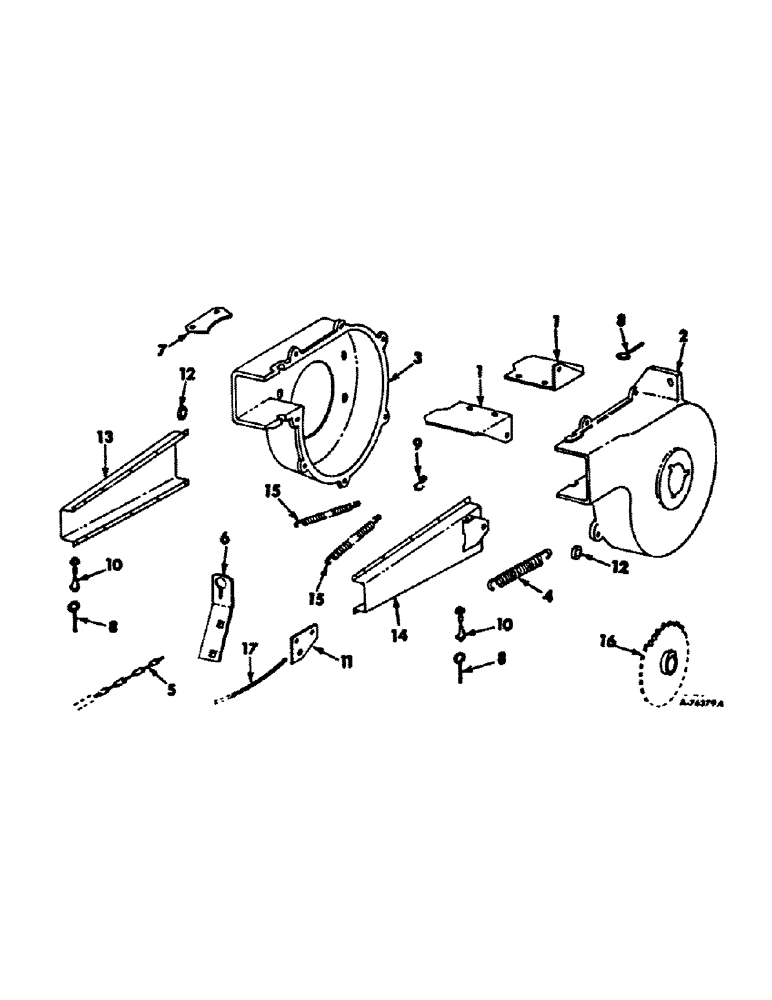

Запчасти Case IH 234 (F-15) - SHELLER, WAGON ELEVATOR FLINGER ATTACHMENT, FOR USE WITH SHELLER UNIT (58) - ATTACHMENTS/HEADERS

1

156528C1

SUPPORT, auger upper flight

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk. crg.

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

156529C1

HOUSING, auger top upper

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd. mach.

7шт.

120376

NUT,5/16"-18, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

156530C1

HOUSING, auger top lower

1шт.

4

937439R1

SPRING, auger discharge tube

1шт.

5

577515R91

CHAIN ASSY., load leveler control coil

1шт.

6

938202R1

BRACKET, load leveler chain

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

7

156523C1

RING, auger top lower housing retainer

2шт.

19008R1

PLOW BOLT,#3, 5/16" - 18 x 1 1/4", Gr 2

BOLT, 5/16 x 1-1/4 C-Z no. 3 plow

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

161033C1

BOLT, auger discharge tube spring, 7 used serial no. 1990 below & 1 used serial no. 1991 and above

1шт.

120376

NUT,5/16"-18, G5

1шт.

21496R1

WASHER

11/32 x 3/4 x 11 ga. C-Z

1шт.

9

457095R1

LINK, wagon spring anchor

1шт.

10

575728R91

HOOK ASSY., auger discharge tube spring, serial no. 1990 and below

2шт.

11

161025C1

BAR, auger discharge tube control

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

2шт.

12

558506R1

SPACER

discharge pivot

2шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 C-Z sq-nk. crg.

2шт.

124847R

NUT, 5/8 C-Z hex. jam

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21882R1

WASHER, 21/32 x 1-1/2 x 16 ga. C-Z

4шт.

13

156537C91

TUBE ASSY., elevator discharge, L.H.

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

10шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

10шт.

14

156539C91

TUBE ASSY., elevator discharge, R.H.

1шт.

15

939393R1

SPRING

wagon discharge, serial no. 1990 and below

2шт.

16

165317C1

SPROCKET, elevator drive, 28-T, serial no. 1990 and below

1шт.

17

ROPE, load leveler, order from bulk stock, 3/8 x 12-1/2 ft.

1шт.
