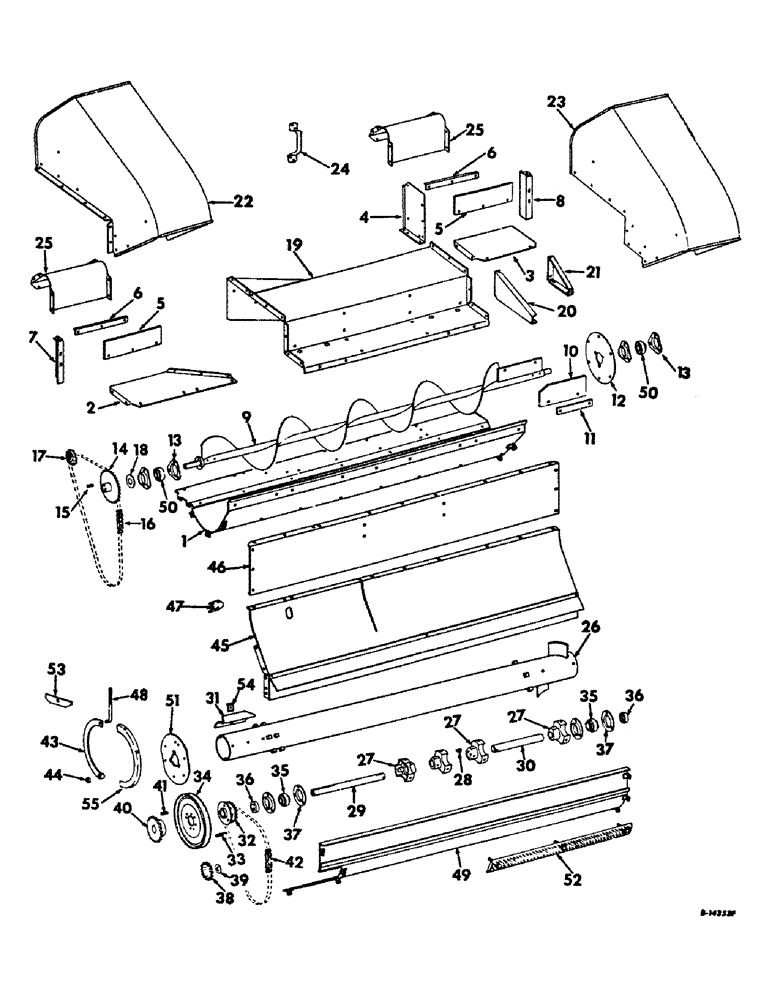

Запчасти Case IH 234 (F-06) - SHELLER, SHELLER EAR CONVEYOR AND ROTOR (58) - ATTACHMENTS/HEADERS

1

937221R92

TROUGH ASSY., ear corn auger

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

9шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

11шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

2шт.

2

151890C1

CHUTE, auger trough, L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss-hd. whiz lock

3шт.

3

937225R1

CHUTE, auger trough, R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss-hd. whiz lock

3шт.

4

937228R1

SIDE, auger trough chute, R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

5шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss-hd. whiz lock

5шт.

5

150853C1

SEAL, auger trough chute

2шт.

6

150854C1

STRAP, auger trough chute seal

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

7

937230R1

SIDE, hopper, L.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss-hd. whiz lock

1шт.

8

937231R1

SIDE, hopper, R.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss-hd. whiz lock

1шт.

9

937232R91

AUGER ASSY., ear corn, serial no. 1990 and below

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga. C-Z

3шт.

9

163556C91

AUGER ASSY., ear corn, serial no. 1991 and above

1шт.

181696

1/2-20 x 1 C-Z hex-hd. cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22770R1

WASHER

17/32 x 1-1/2 x 7 ga. C-Z

1шт.

10

937238R1

FLIGHT, ear corn auger

1шт.

11

937611R1

STRAP, auger flight retainer

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk. crg.

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

937239R1

FLANGE, ear corn auger

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

6шт.

13

571424R1

FLANGE

ear corn auger brg.

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

6шт.

14

937591R1

SPROCKET, ear corn auger driven, 21-T

1шт.

15

150532C1

KEY

auger driven sprocket

1шт.

16

CHAIN, auger drive roller, use 65 links from 10-ft. roll marked 569089R91, one connecting link 587372R91

1шт.

17

564989R91

DRIVE SPROCKET

SPROCKET ASSY., auger drive chain tightener, 9-T

1шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk. crg.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga.

3шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga. C-Z

2шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq. x 1-1/4 x 16 ga. C-Z

1шт.

18

654283R1

THRUST WASHER

auger drive shaft

3шт.

19

151699C91

COVER ASSY., auger trough

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

3шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

30шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss-hd. whiz lock

21шт.

20

938278R1

BRACKET, auger trough cover, L.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk. crg.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

21

938279R1

BRACKET, auger trough cover, R.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk. crg.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

938176R91

HOOD ASSY., fan, L.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

15шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss-hd. whiz lock

9шт.

23

938177R91

HOOD ASSY., fan, R.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss-hd. whiz lock

7шт.

24

937109R1

HANDLE, operator ladder

1шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

4шт.

938016T1

NUT, 1/4-20 C-Z whiz lock

4шт.

25

938252R1

DEFLECTOR, fan hood, L.H.

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

20шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss-hd. whiz lock

16шт.

26

937451R91

ROTOR ASSY., sheller

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 hex-hd. type 4

6шт.

366864R1

WASHER, 1/2 C-Z rib lock

6шт.

27

937454R1

HUB, rotor

4шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

22775R1

PIN

3/8 x 2-1/2 C-Z cot.

2шт.

28

117998

WOODRUFF KEY,#G, 3/8" x 1 1/2", HT

KEY, 3/8 x 1-1/2 ast. Woodruff G

1шт.

29

937457R1

SHAFT, rotor stub, L.H., serial no. 1990 and below

1шт.

137303

COTTER PIN,1/4" x 2 1/4"

PIN, SPLIT (COTTER), 1/4" x 2 1/4"

1шт.

22812R1

WASHER

1-15/32 x 2 x 16 ga. C-Z

15шт.

29

161120C1

SHAFT, rotor stub, L.H., serial no. 1991 and above

1шт.

86837293

SHAFT

1/2-20 x 1 C-Z hex-hd. cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22812R1

WASHER

15/32 x 2 x 16 ga. C-Z

19шт.

486801R1

WASHER

17/32 x 2 x 1/4 C-Z

1шт.

30

937458R1

SHAFT, rotor stud, R.H.

1шт.

31

153206C2

FLIGHT, cob discharge, adj., serial no. 2367 & above

3шт.

31

937459R2

FLIGHT, cob discharge, adj., serial no. 2366 & below

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 hex-hd. type 4

6шт.

366864R1

WASHER, 1/2 C-Z rib lock

6шт.

32

937460R91

SPROCKET ASSY., rotor driven 22-T, standard, serial no. 1990 & below

1шт.

32

159966C91

SPROCKET ASSY., rotor driven 18-T, high speed rotor drive 890 RPM

1шт.

32

165289C91

SPROCKET ASSY., rotor driven 20-T, standard, serial no. 1991 & above

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd. mach.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

33

937057R1

KEY, rotor driven sprocket

1шт.

34

564569R11

PULLEY ASSY.

PULLEY, rotor fan drive, 13 OD, 3 in. bore

1шт.

35

570043R91

BALL BEARING,1.4375" ID x 72 mm OD x 2.1"

ASSY., rotor stub shaft ball

2шт.

36

557113R11

COLLAR

W/SET SCREW, brg. locking

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex-soc-hd. cup-pt. set

1шт.

37

617863R1

FLANGED BEARING

rotor stub shaft brg.

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk. crg.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

38

629972R91

DRIVE SPROCKET,15T

SPROCKET ASSY., rotor drive chain tightener, 15-T

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 C-Z hex-hd. mach.

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga. C-Z

1шт.

21759R1

WASHER

21/32 x 2 x 11 ga. C-Z

2шт.

39

320993R1

SPACER,7/8" Tube x 1/2"

tightener bracket

1шт.

40

937464R91

SPROCKET ASSY., shelled corn auger drive, 15-T, serial no. 1990 and below

1шт.

40

155961C1

SPROCKET, shelled corn auger drive, 9-T, serial no. 1991 and above

1шт.

41

454353R1

KEY,3/8" Sq x 1", Par

3/8 x 1 sq. parallel

1шт.

42

CHAIN, rotor drive, use 93 links from 10-ft. roll marked 1793D, one connecting link 1786D

1шт.

43

156881C91

RETARDER ASSY., adj. ring, serial no. 2367 & above

1шт.

43

626953R91

RETARDER ASSY., adj. ring, serial no. 2366 & below

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

22804R1

HEADED PIN,1/2" x 2 1/2"

PIN, 1/2 x 2-1/4 C-Z std-hd.

1шт.

44

556587R1

SPACER

adj. retarder concave tie, serial no. 2366 & below

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd. mach.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

45

937467R91

COVER ASSY., concave front, serial no. 2366 & below

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

17шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16-18 x 3/4 C-Z slt-truss-hd. whiz lock

9шт.

46

153214C1

CHANNEL, concave front cover, serial no. 2367 & above

1шт.

46

937469R1

CHANNEL, concave front cover, serial no. 2366 & below

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

14шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

20шт.

47

937470R1

ANGLE, adj. retarder bolt, serial no. 2366 & below

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

2шт.

48

156883C1

BOLT, retarder adj., serial no. 2367 & above

1шт.

48

626781C1

BOLT, retarder adj., serial no. 2366 & below

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga. C-Z

1шт.

49

937472R91

COVER ASSY., concave rear, serial no. 2366 & below

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

16шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

10шт.

50

671681R91

BEARING ASSY,25.43mm ID x 52.09mm OD x 16mm W

ASSY., ear corn auger ball, 2 used serial no. 1990 and below, 1 used inner, serial no. 1991 and above

1шт.

139009

PRESSURE PIPE

SCREW, 1/4 x 1/4 hex-soc-hd. cup-pt. set

2шт.

50

155264C91

BALL BEARING,25.43mm ID x 52.09mm OD x 16mm W

ASSY., ear corn auger ball outer, 1 used, serial no. 1991 and above

1шт.

51

626952R1

COVER, rotor end, serial no. 2366 and below

1шт.

51

153207C1

COVER, rotor end, serial no. 2367 and above

1шт.

52

159949C11

BAR W/CAP SCREWS, concave, 1 used standard, 2 used high speed rotor drive 890 RPM

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga. C-Z

1шт.

53

159260C1

BRACE, retarder adj. bolt, serial no. 2367 & above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

54

163534C1

CLAMP, discharge flight, serial no. 3302 and above

3шт.

55

156882C1

SECTION, concave retarder, serial no. 2367 & above

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd. cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga. C-Z

3шт.

161078C91

HIGH SPEED ROTOR DRIVE, parts accessories, includes ref. no. 32, 159966C91 and ref. no. 52, 159949C11

2шт.
