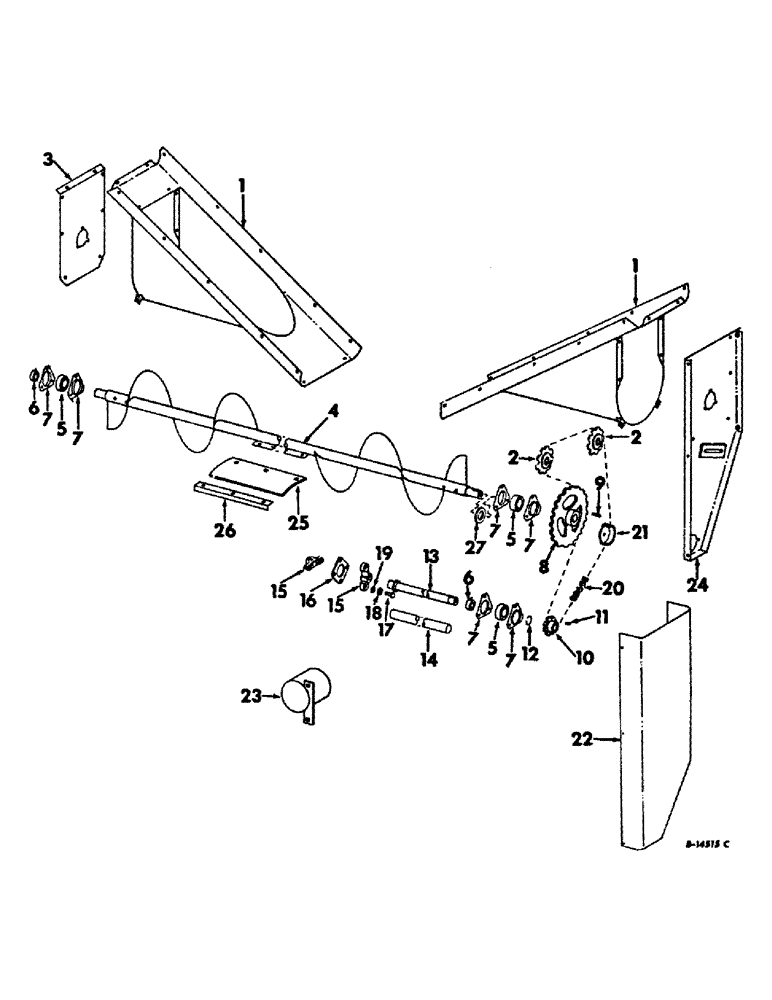

Запчасти Case IH 234 (E-07) - HOPPER, SWEET CORN COMPLETING PARTS (58) - ATTACHMENTS/HEADERS

1

164427C92

TROUGH ASSY., hopper auger

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

30шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

30шт.

2

564989R91

DRIVE SPROCKET

SPROCKET, drive tightener, 9T

2шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk. crg.

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga.

6шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga.

4шт.

607896R1

SQ HOLE WASHER,17/32" x 1 1/4" x .120", Sq Hole

17/32 sq x 1-1/4 x 11 ga.

2шт.

3

164432C1

PANEL, auger end, L.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

4

164436C92

AUGER ASSY., hopper

1шт.

181696

1/2-20 x 1 C-Z hex-hd. cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22770R1

WASHER

17/32 x 1-1/2 x 7 ga. C-Z

1шт.

5

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY., auger ball

3шт.

6

455102R11

COLLAR

W/SET SCREW, bearing locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd. cup-pt. set

2шт.

7

571424R1

FLANGE

bearing

6шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

9шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

9шт.

8

937591R1

SPROCKET, auger driven, 21-T

1шт.

9

150532C1

KEY

driven sprocket

1шт.

10

161286C1

SPROCKET, auger drive, 6-T

1шт.

11

587016R1

KEY, drive sprocket

1шт.

12

937158R1

RING, SNAP

RING, auger drive sprocket snap

1шт.

13

164440C11

SHAFT ASSY., auger drive

1шт.

86837293

SHAFT

1/2-20 x 1 C-Z hex-hd. cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

22770R1

WASHER

17/32 x 1-1/2 x 16 ga. C-Z

1шт.

14

164441C1

TUBE, auger drive shaft shield

1шт.

15

164442C1

HUB, auger drive coupling

2шт.

16

43549D

PLATE ASSY.

DISC, auger drive coupling

1шт.

17

43552DB

STEP BOLT,Hex, 3/8" - 24 x 1 15/16"

SCREW, auger drive coupling

4шт.

120369

NUT,3/8"-24, G5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

356588R1

RETAINER

coupling rubber washer

8шт.

19

43550D

RUBBER WASHER

drive coupling

8шт.

20

CHAIN ASSY., auger drive, use 61 links from 10-ft. roll marked 569089R91 1 connecting link 587372R91, 2 offset links 456929R91

1шт.

21

583619R1

BLOCK

auger drive chain tightener

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk. crg.

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga. C-Z

1шт.

22

164444C1

SHIELD, auger drive chain

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

23

168167C1

SHIELD, auger drive coupling

1шт.

24

164433C92

PANEL ASSY., auger end, R.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

25

168145C1

FLIGHT, hopper auger beater, serial no. 676 and above

1шт.

26

150854C1

STRAP, auger beater flight, serial no. 676 and above

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk. crg.

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

27

654283R1

THRUST WASHER

hopper auger

4шт.
