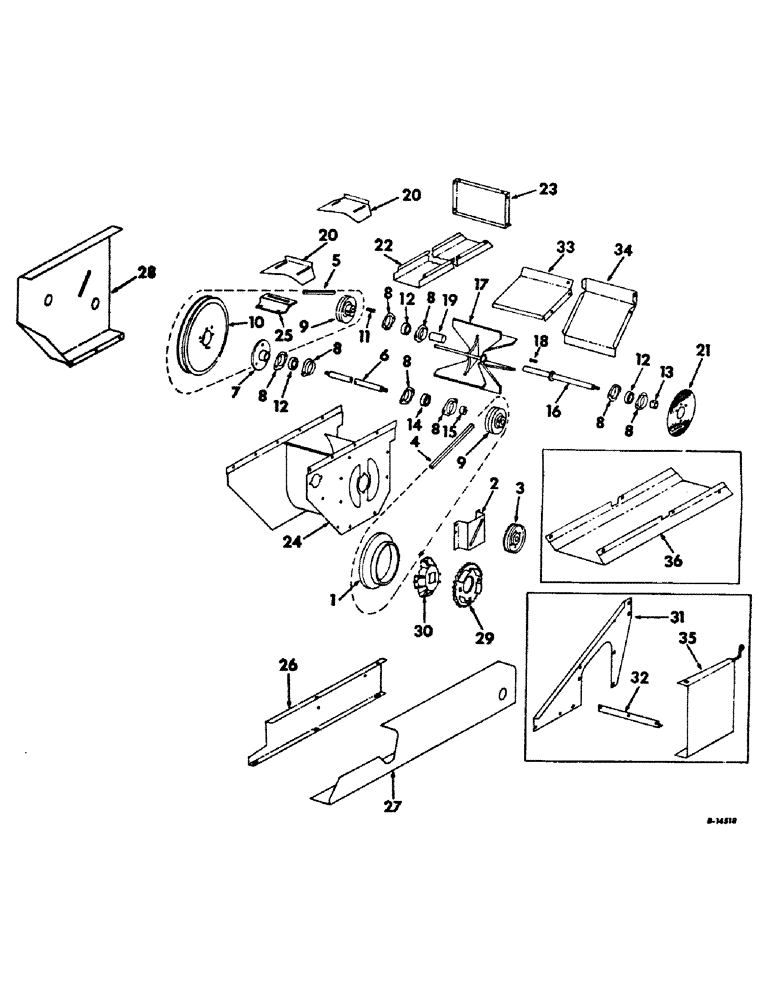

Запчасти Case IH 234 (D-06) - WAGON ELEVATOR, CHAIN TYPE, ELEVATOR FAN ATTACHMENT (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
161224C1
PULLEY, fan drive
1шт.
180145
BOLT,Hex, 7/16" - 14 x 1", Gr 5
SCREW, 7/16 x 1 C-Z hex-hd. cap
4шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
4шт.
2
161227C1
BRACKET, fan drive tightener pulley
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg.
1шт.
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
1/4 C-Z whiz lock
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
1шт.
939925R1
LOCK
NUT, 3/8 C-Z whiz lock
1шт.
937875R1
SCREW,Serr, 1/4" - 20
1/4 x 3/4 C-Z slt-truss-hd. whiz lock
2шт.
165420C1
BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl
SCREW, 3/8 x 1-1/4 C-Z hex-hd. whiz lock
1шт.
3
161431C91
PULLEY
ASSY., fan drive belt tightener
2шт.
20314R1
BOLT,Short NK, 1/2"-13 x 2 1/2", G2
1/2 x 2-1/2 C-Z sq-nk crg.
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
180183
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5
SCREW, 1/2 x 2-1/4 C-Z hex-hd. cap
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
178374R1
WASHER
17/32 x 1-1/4 x 16 ga.
2шт.
460908R1
WASHER
17/32 x 1-1/2 x 11 ga. C-Z
4шт.
559754R1
WASHER, 17/32 x 1-1/4 x 3/16
1шт.
22042R1
WASHER
17/32 x 2 x 11 ga. C-Z
2шт.
4
165502C1
V-BELT,0.63" W x 121.49" L
Fan Drive Lower 0.63" W x 121.49" L
1шт.
5
165503C1
BELT, fan drive upper
1шт.
6
161262C1
SHAFT, fan drive jack
1шт.
19696R1
LOCK NUT,1/2"-13, GB
NUT, 1/2 znp. nylon insert
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
7
161260C1
HUB, fan drive pulley
1шт.
22770R1
WASHER
17/32 x 1-1/2 x 7 ga. C-Z
2шт.
8
155265C1
FLANGE
bearing
8шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
6шт.
16888R1
HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2
BOLT, 5/16 x 1-1/2 C-Z sq-nk. crg.
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
8шт.
9
633282R1
SHEAVE
PULLEY, fan driven
2шт.
10
564569R11
PULLEY ASSY.
fan drive
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 C-Z hex-hd. mach.
3шт.
120377
NUT,3/8" - 16, Gr 5
3шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
11
150532C1
KEY
fan driven pulley
3шт.
12
673365R91
BALL BEARING,0.875" ID x 52 mm OD x 1.375"
ASSY., ball
3шт.
13
658006R11
COLLAR
W/SET SCREW, brg.
1шт.
14
666589R91
BALL BEARING,25.4mm ID x 52mm OD x 15mm W
BEARING ASSY., ball
1шт.
15
455102R11
COLLAR
W/SET SCREW, brg.
1шт.
16
161225C11
SHAFT ASSY., elevator fan
1шт.
19696R1
LOCK NUT,1/2"-13, GB
NUT, 1/2 znp. nylon insert
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
22770R1
WASHER
17/32 x 1-1/2 x 7 ga. C-Z
1шт.
17
575988R2
FAN, elevator
1шт.
18
126
KEY,1/4" Sq x 2 1/2", Par
1/4 x 2-1/2 sq-parallel
1шт.
19
161226C1
SPACER, fan inner
1шт.
20
578614R1
COVER, fan housing shutter, R.H.
1шт.
20
578615R1
COVER, fan housing shutter, L.H.
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
4шт.
935736R1
NUT, WING
NUT, 5/16 C-Z wing
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga. C-Z
4шт.
21
580028R1
SCREEN, elevator fan shield
1шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga. C-Z
1шт.
22
161237C1
EXTENSION, fan duct
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
10шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
10шт.
23
161238C1
SUPPORT, fan duct extension
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
6шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
6шт.
24
161232C91
HOUSING ASSY., elevator fan
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
9шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
9шт.
25
161236C1
BRACKET, upper fan belt tightener
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
2шт.
26
161259C11
SECTION ASSY., fan shield
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
3шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
3шт.
27
161268C1
SHIELD, fan belt, L.H.
1шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 C-Z hex-hd. mach.
5шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
28
161269V1
SHIELD, fan belt, R.H.
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk crg.
5шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
5шт.
29
937038R2
SPROCKET, elevator clutch, 30-T, husker serial no. 3339 and below hopper serial no. 611 and below
1шт.
30
632152R2
RETAINER
slip clutch, husker serial no. 3339 and below, hopper serial no. 611 and below
1шт.
31
937877R1
SIDE, ladder, R.H., husker serial no. 3339 and below, hopper serial no. 611 and below
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
2шт.
32
161231C1
ANGLE, ladder side brace, R.H., husker serial no. 3339 and below, hopper serial no. 611 and below
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
3шт.
33
161223C1
DEFLECTOR, fan duct upper
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
6шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
6шт.
34
163607C1
DEFLECTOR, fan duct lower
1шт.
18673T1
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
6шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
6шт.
35
937016R1
PANEL ASSY., load leveler, husker serial no. 3339 and below, hopper serial no. 611 and below
1шт.
36
164358C1
EXTENSION, elevator fan duct, for use w/wagon elevator ext.
1шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
6шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
6шт.
Выбрано товаров: 99
