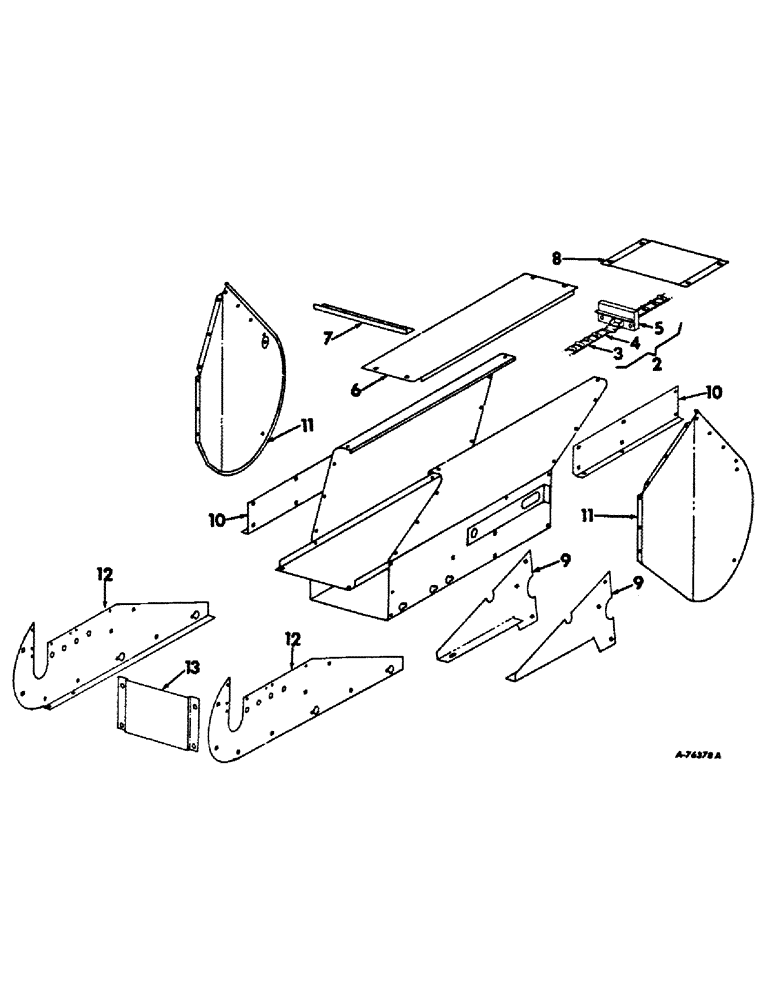

Запчасти Case IH 234 (D-05) - WAGON ELEVATOR, CHAIN TYPE, WAGON ELEVATOR EXTENSION ATTACHMENT FOR HUSKER OR HOPPER UNIT (58) - ATTACHMENTS/HEADERS

1

164343C91

EXTENSION ASSY., wagon elevator

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

12шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

12шт.

2

164348C91

CONVEYOR W/FLIGHTS, elevator extension, includes ref. nos. 3, 4 and 5

1шт.

3

62

LINK ASSY.

LINK, plain

39шт.

4

62CO

DRAG LINK

LINK, coupler

1шт.

5

938079R91

SECTION W/FLIGT, conveyor chain

1шт.

6

164355C1

CHANNEL, elevator extension cover

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

7

151932C1

ANGLE, elevator cover

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

8

164350C1

COVER, handhole

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

9

164356C1

SUPPORT, hitch, L.H.

1шт.

9

164357C1

SUPPORT, hitch, R.H.

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

6шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd. mach.

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

164353C1

ANGLE, hood, L.H.

1шт.

10

164354C1

ANGLE, hood, R.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

11

164351C11

SIDE ASSY., hood, L.H.

1шт.

11

164352C11

SIDE ASSY., hood, R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

12шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

21667R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3-1/2 C-Z std-hd.

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

12шт.

12

167898C1

PLATE, elevator boot reinforcement, L.H.

1шт.

12

167899C1

PLATE, elevator boot reinforcement, R.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

18шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

14шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

18шт.

938875R1

SCREW

1/4 x 3/4 C-Z whiz lock

14шт.

13

168052C1

DOOR, elevator bottom

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
