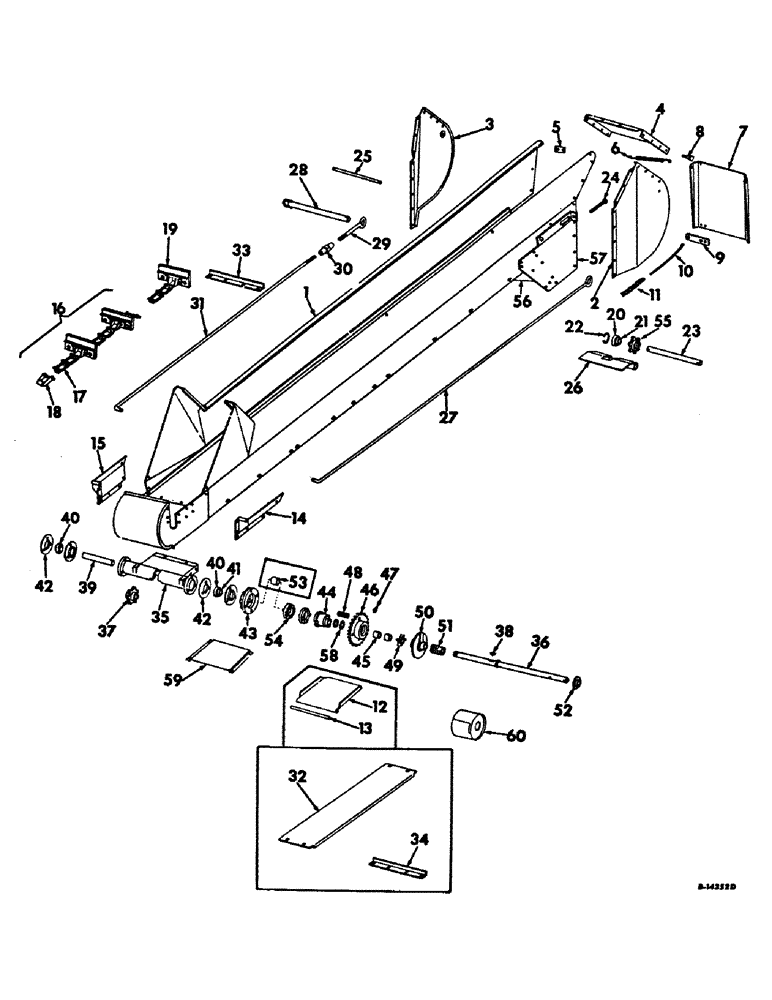

Запчасти Case IH 234 (D-02) - WAGON ELEVATOR, CHAIN TYPE, WAGON ELEVATOR AND DRIVE, CHAIN TYPE (58) - ATTACHMENTS/HEADERS

1

937000R93

ELEVATOR ASSY., includes ref. nos. 56 and 57

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 C-Z whiz lock

4шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 C-Z slt-truss-hd. whiz lock

4шт.

2

937012R11

SIDE ASSY., elevator hood, L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss-hd. whiz lock

8шт.

3

937013R11

SIDE ASSY., elevator hood, R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

8шт.

4

937015R1

COVER, hood

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

2шт.

5

559140R1

STRIP, load leveler spring

1шт.

6

42755D

SPRING

load leveler

1шт.

7

937016R11

PANEL ASSY., load leveler

1шт.

8

578440R1

BOLT, load leveler panel

2шт.

17044R1

LOCK NUT,3/8"-16, GB

NUT, 3/8 C-Z nylon insert

2шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

142619H

WASHER

13/32 x 3/4 x 11 ga. C-Z

2шт.

9

937017R1

BRACKET, load leveler rope, husker serial no. 3384 & below, hopper serial no. 611 & below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

8шт.

10

ROPE, load leveler, order from bulk stock, 3/8 x 12-1/2 foot

1шт.

11

577515R91

CHAIN ASSY., load leveler control coil

1шт.

12

937018R1

DOOR, elevator bottom, husker serial no. 4284 and below, hopper serial no. 675 and below

1шт.

13

150207C1

PIN, elevator door, husker serial no. 4284 and below, hopper serial no. 675 and below

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

14

937019R91

SIDE ASSY., elevator hopper, L.H.

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 C-Z whiz lock

7шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4-20 x 1/2 C-Z slt-truss-hd. whiz lock

7шт.

15

937020R91

SIDE ASSY., elevator hopper, R.H.

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

7шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

7шт.

16

937026R91

CONVEYOR ASSY.

CONVEYOR W/FLIGHTS, elevator, includes ref. nos. 17, 18 and 19

1шт.

17

62

LINK ASSY.

LINK, coupler

152шт.

18

62CO

DRAG LINK

LINK, coupler

1шт.

19

937079R91

CONVEYOR

elevator flight section, includes ref. no. 17

1шт.

20

586609R91

BALL BEARING

BEARING ASSY., elevator head shaft sprocket ball

1шт.

21

455102R11

COLLAR

W/SET SCREW, brg. lkg.

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd.

1шт.

22

555602R1

RING

elevator head shaft sprocket brg. snap

1шт.

23

937030R1

SHAFT, elevator head

1шт.

24

575245R1

BOLT, conveyor chain tightener

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

4шт.

25

937031R1

PIN, elevator head shield

1шт.

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

2шт.

26

937032R1

SHIELD, elevator head shaft

1шт.

27

937040R1

ROD, elevator support, L.H., used w/husker units

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

27

168557C1

ROD, elevator support, L.H., used w/hopper units

1шт.

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 C-Z std-hd

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

28

937041R11

PIPE ASSY., support rod anchor

1шт.

22442R1

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

1шт.

21748R1

WASHER

1-5/32 x 2-1/4 x 16 ga. C-Z

1шт.

29

937042R1

ROD, elevator support extension, R.H.

1шт.

30

M4175

TURNBUCKLE, elevator support, R.H., rod

1шт.

31

937043R1

ROD, elevator support, R.H., used w/husker units

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

31

168558C1

ROD, elevator support, R.H., used w/hopper units

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

1шт.

21957R1

HEADED PIN,5/8" x 2"

PIN, 5/8 x 2 C-Z std-hd.

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

32

151931C1

CHANNEL, elevator cover, for wagon elevator covers, special

3шт.

33

151932C1

STRAP, elevator cover

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

2шт.

34

151932C1

STRAP, elevator cover, for wagon elevator covers, special

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

12шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

12шт.

35

937034R2

HOUSING, elevator boot shaft

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

36

164556C11

SHAFT ASSY., elevator boot

1шт.

937539R1

NUT, 1 C-Z hex. jam lkg.

1шт.

138572

WASHER, 1 C-Z int-tooth lock

1шт.

37

937045R1

SPROCKET, conveyor chain drive, 7T

1шт.

38

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

39

937036R1

SPACER, conveyor chain sprocket, R.H.

1шт.

40

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY., elevator boot shaft ball

2шт.

41

455102R11

COLLAR

ASSY., bearing locking

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd. cup-pt. set

1шт.

42

462360R1

FLANGED BEARING

elevator boot shaft brg.

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

SCREW, 5/16 x 1 C-Z hex-hd. cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

43

632152R2

RETAINER

slip clutch

1шт.

44

937037R21

HOLDER W/BUSHINGS, slip clutch, includes ref. no. 45

1шт.

45

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

slip clutch holder

2шт.

46

937038R2

SPROCKET, elevator drive clutch, 30-T

1шт.

22820R1

BOLT, 7/16 x 3-1/4 dld sq-nk. crg.

4шт.

425-127

SLOTTED NUT,7/16"-14, G5

7/16 C-Z slt-hex.

4шт.

121224

SUPPORT

3/32" x 1"

4шт.

607891R1

WASHER

15/32 x 1 x 16 ga. C-Z

4шт.

47

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

48

MA32024

VALVE SPRING

SPRING, slip clutch

4шт.

49

579256R1

COLLAR, throw-out clutch

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

553686R1

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, 3/16" x 1 1/2", Slotted

1шт.

50

579255R1

HUB, throw-out clutch

1шт.

51

10A

SPRING, throw-out clutch

1шт.

52

M82160

COLLAR, throw-out clutch spring

1шт.

432-1228

COTTER PIN,3/16" x 1 3/4"

PIN, SPLIT (COTTER), 3/16" x 1 3/4"

1шт.

53

937039R1

SPACER, elevator drive clutch, L.H., serial no. 4132 and below

1шт.

54

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

2шт.

55

937044R1

SPROCKET, elevator headshaft, 7-T

1шт.

56

937007R1

EXTENSION, bottom channel upper

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

6шт.

57

937004R1

SHEET, ball rod anchor

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

58

654283R1

THRUST WASHER

elevator drive clutch

6шт.

59

168052C1

DOOR, elevator bottom, husker serial no. 4285 and above, hopper serial no. 676 and above

1шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

60

577877R91

SHIELD ASSY., husker serial no. 4285 and above, hopper serial no. 676 and above

1шт.
