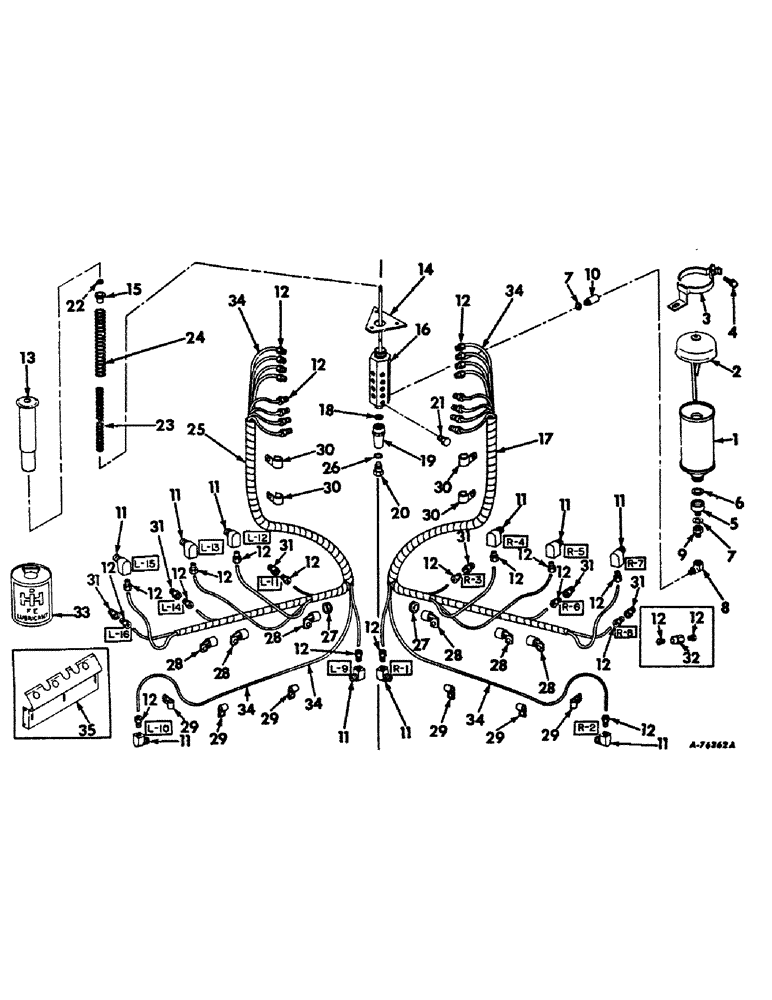

Запчасти Case IH 234 (C-13) - HUSKER, MULTI-LUBER ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

156271C91

RESERVOIR ASSY., luber

1шт.

156272C91

CAP ASSY., reservoir

1шт.

3

156273C91

CLAMP ASSY., reservoir support

1шт.

4

156274C1

SCREW, reservoir clamp thumb

1шт.

120399

NUT, 5/16-18 C-Z square machine

1шт.

5

156275C1

ADAPTER, reservoir

1шт.

6

156276C1

WASHER

reservoir gasket

1шт.

7

156277C1

WASHER, reservoir copper

2шт.

8

120499

ELBOW

1/4 90 deg. street

1шт.

9

156278C1

REDUCER, reservoir

1шт.

10

156279C1

ADAPTER, inlet

1шт.

11

156280C11

ELBOW W/NUT, includes ref. no. 12

10шт.

12

156281C1

TUBE NUT,50" Length

NUT, tube connector compression

32шт.

13

156291C91

PLUNGER ASSY., manual push rod

1шт.

14

156287C11

BAR ASSY., mounting plate

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4 x 1/2 C-Z hex-hd. cap

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

15

156295C1

BUSHING, spring guide

1шт.

16

156292C91

BODY AND PLUNGER ASSY., includes ref. nos. 15, 22, 23 and 24

1шт.

17

156285C91

HARNESS ASSY., R.H.

1шт.

18

156289C1

WASHER, aluminum gasket

1шт.

19

156290C1

CONNECTION, nose

1шт.

20

156288C1

PLUG, nose

1шт.

21

156286C1

PLUG, port

2шт.

22

156296C1

WASHER, horseshoe

1шт.

23

156293C1

SPRING, inner

1шт.

24

156294C1

SPRING, outer

1шт.

25

156284C91

HARNESS ASSY., L.H.

1шт.

26

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

copper

1шт.

27

117965

GROMMET,5/8" ID x 1 11/64" x .062"

rubber

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4-20 C-Z whiz lock

3шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

3шт.

28

156270C1

CLIP, multi-luber harness

6шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

29

362127R1

CLIP

multi-luber harness small

8шт.

30

363444R1

CLAMP,J, 9/16" Insul, 3/8" Bolt

CLIP, multi-luber harness large

5шт.

31

156282C11

CONNECTOR, ELEC

CONNECTOR W/NUT, male, includes ref. no. 12

6шт.

32

156297C11

UNION

W/NUTS, tubing splice, includes ref. no. 12

1шт.

33

156576C91

GREASE

FLUID, grease, one quart container

1шт.

33

587813R92

GREASE

FLUID, grease, five gallon container

1шт.

34

TUBE, nylon, 1/8 OD x 50-ft. long, order one ft. increments from 50-ft. roll marked 997140R1 specify cut or uncut

1шт.

35

937620R21

SHIELD ASSY., husk conveyor chain inner, L.H., serial no. 1850 and below

1шт.

35

937621R21

SHIELD ASSY., husk conveyor chain inner, right, serial no. 1850 and below

1шт.
