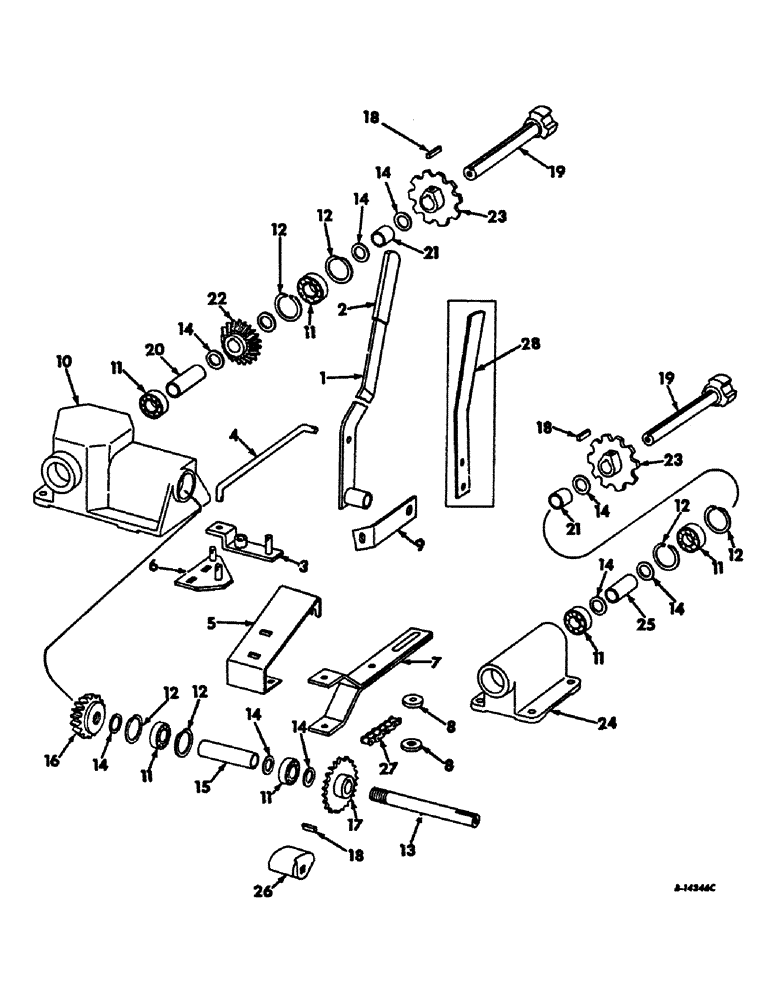

Запчасти Case IH 234 (C-08) - HUSKER, ELEVATOR CONTROL AND HUSKER DRIVE (58) - ATTACHMENTS/HEADERS

1

937843R91

LEVER ASSY., elevator throw-out

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga. znd.

1шт.

2

632519R1

GRIP

throw-out control lever handle

1шт.

3

161044C91

LEVER ASSY., elevator throw-out lower, when ordering ref. 3 for machines serial no. 1884 and below, ref. nos. 5 & 6 must be serviced also

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

178372R1

WASHER

.406 x 1.25 x .054 znd.

6шт.

4

937852R1

ROD, elevator throwout

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga. C-Z

2шт.

5

161048C1

BRACKET, elevator throw-out yoke pivot, when ordering ref. 5 for machines serial no. 1884 and below, ref. nos. 3 & 6 must be serviced also.

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd. sq-nk. crg.

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd. hex-hd. mach.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga. znd.

1шт.

6

161045C11

BRACKET ASSY., yoke pivot adjusting, when ordering ref. 6 for machines serial no. 1884 and below ref. nos. 3 & 5 must be serviced also.

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd. sq-nk. crg.

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

PIN, 3/16 x 1 C-Z cotter

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21903R1

WASHER

17/32 x 3/4 x 16 ga. znd.

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga. zn.

6шт.

619856R1

WASHER

13/32 x 1 x 16 ga. znd.

2шт.

7

161046C91

YOKE ASSY., elevator control throw-out, includes ref. no. 8

1шт.

8

575924R1

WASHER

DISC, throw-out yoke

2шт.

575923R1

RIVET

throw-out disc

2шт.

9

151450C1

STRAP, throw-out pivot support

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd. hex-hd. mach.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga. znd.

1шт.

10

937740R1

HOUSING, elevator drive gear

1шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 C-Z hex-hd. mach.

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

21902R1

WASHER, 15/32 x 1-1/2 x 16 ga. C-Z

1шт.

11

586609R91

BALL BEARING

BEARING ASSY., drive shaft ball

6шт.

12

555602R1

RING

drive shaft brg. snap

6шт.

13

937125R1

SHAFT, elevator drive

1шт.

14

654283R1

THRUST WASHER

elevator drive shaft and husker drive shaft

1шт.

14

654338R1

THRUST WASHER

gear thrust

2шт.

14

169204C1

WASHER, gear shim

2шт.

15

150527C1

SPACER, elevator drive shaft

1шт.

16

654281R1

PINION

GEAR, elevator drive shaft driven, 18-T

1шт.

17

937743R1

SPROCKET, elevator drive, 19-T

1шт.

86837293

SHAFT

1/2 x 1 C-Z hex-hd. cap

1шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

550610R1

WASHER

17/32 x 1-1/2 x 3/16

1шт.

18

587016R1

KEY, elevator & husker drive sprocket

4шт.

19

937744R91

COUPLING

SHAFT ASSY., husker drive, not used w/grinder unit drive

2шт.

19

159759C91

SHAFT ASSY., husker drive, parts accessories, for use w/grinder unit drive

2шт.

181696

1/2 x 1 C-Z hex-hd. cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

22770R1

WASHER

17/32 x 1-1/2 x 7 ga. C-Z

2шт.

20

937747R1

SPACER, husker drive shaft brg., L.H.

1шт.

21

571823R1

SPACER,1 1/4" Tube x 1"

husking roll drive sprocket, L.H.

2шт.

22

935611R1

PINION

GEAR, elevator drive, 18-T

1шт.

23

937748R1

SPROCKET ASSY.

SPROCKET, husking roll drive, 10-T

2шт.

24

937750R1

HOUSING, husker drive shaft brg., R.H.

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd. mach.

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga. C-Z

1шт.

25

937749R1

SPACER, husker drive shaft brg., R.H.

1шт.

26

583620R1

BLOCK

elevator drive chain tightener

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga. C-Z

1шт.

27

CHAIN, elevator drive, use 61 links from 10-ft. roll marked 611362R91, one connecting link 574532R91

1шт.

28

151449C1

LEVER, throw-out extension, Farmall 544, 656, 706, 756, 806, 856, 1206 and 1256 tractors

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd. hex-hd. mach.

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
