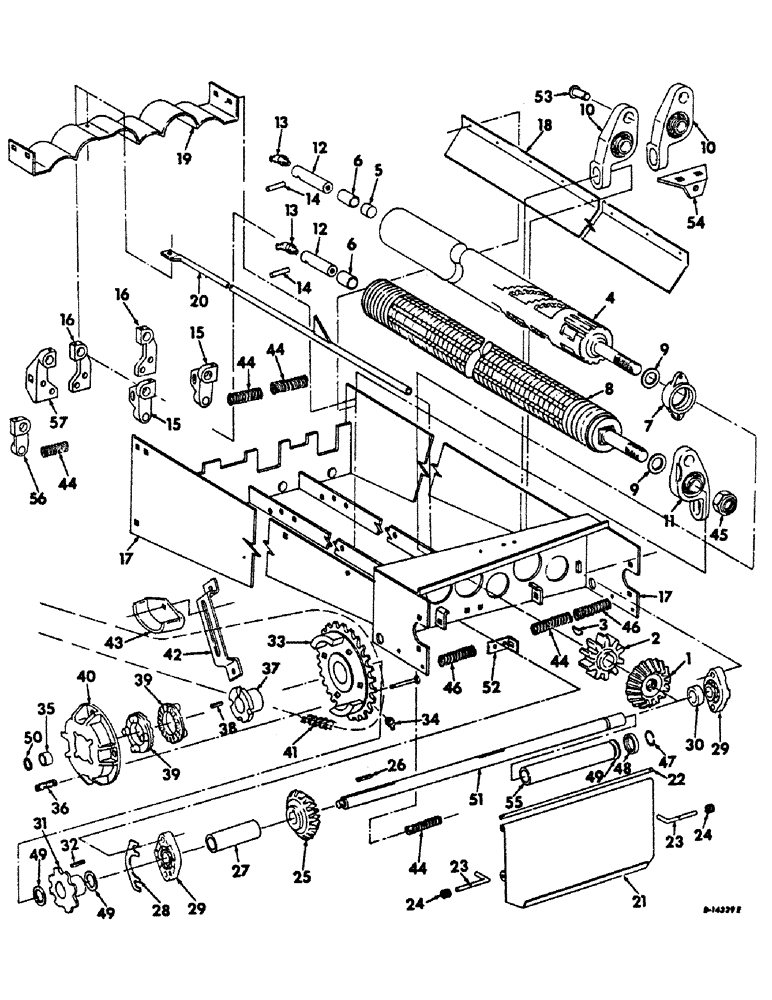

Запчасти Case IH 234 (C-02) - HUSKER, HUSKERS ROLL AND DRIVE (58) - ATTACHMENTS/HEADERS

1

654281R1

PINION

GEAR, L.H., husker roll driven, 18T

1шт.

1

654280R1

PINION

GEAR, R.H., husker roll driven, 18T

1шт.

2

155963C1

GEAR, husker roll shaft, 10T

12шт.

3

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

12шт.

4

937551R91

ROLL ASSY., husker, L.H., unit R.H. thread, includes ref. nos. 5 and 6

1шт.

4

937552R91

ROLL ASSY., husker, R.H., unit L.H. thread, includes ref. nos. 5 and 6

1шт.

5

589724R1

SPACER, husker roll bushing

6шт.

6

575073R1

BUSHING, husker roll

12шт.

7

155359C11

HOUSING ASSY., roll inner shaft brg.

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

12шт.

8

938289R91

ROLL

ASSY., rubber laminated type, includes ref. no. 6

6шт.

9

654283R1

THRUST WASHER

husker roll

14шт.

10

155360C11

HOUSING ASSY., roll outer shaft, L.H.

3шт.

11

155361C11

HOUSING ASSY., roll outer shaft, R.H.

3шт.

12

155670C2

SHAFT, husker roll lower

12шт.

13

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 67 deg. lub.

12шт.

14

19967R1

DOWEL,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 hardened dowel

12шт.

15

155364C1

SUPPORT, roll lower pivot, L.H.

3шт.

18713R1

SCREW,Short NK, 1/2"-13 x 4 1/2", G2

BOLT, 1/2 x 4-1/4 C-Z sq-nk. crg.

3шт.

22817R1

BOLT, 1/2 x 4-1/2 C-Z sq-nk. crg.

3шт.

231-1448

NUT,1/2"-13, GB

1/2 C-Z nylon insert

6шт.

16

155362C1

SUPPORT, roll lower fixed, L.H.

3шт.

271501

SOCKET

NUT, 7/16 znd. hex.

6шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 znd. hex-hd.

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.

17

155350C91

BRACKET ASSY., husker roll, L.H.

1шт.

17

155351C91

BRACKET ASSY., husker roll, R.H.

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk. crg.

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

10шт.

1203982

WASHER, 3/8 C-Z med. lock

12шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga.

4шт.

551658R1

WASHER

25/32 x 1-1/4 x 22 ga.

6шт.

18

937550R1

DEFLECTOR, husker roll router

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

16шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znd. truss-hd.

16шт.

19

937657R1

SHIELD, husker roll lower end

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

2шт.

18508T1

BOLT, 3/8 x 3/4 C-Z sq-nk. crg.

2шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

151429C91

PIPE ASSY., husker roll divider

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd. mach.

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

155377C11

SHIELD ASSY., roll drive gear

2шт.

22

U16800

ROD, drive gear shield

2шт.

648002

KNIFE

1/8" x 3/4"

4шт.

23

611044R1

AXLE PIN,6.35mm OD

PIN, locking

4шт.

24

606245R1

SPRING

locking pin

4шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

4шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga. C-Z

4шт.

25

155276C1

GEAR

husker roll drive, 18T

2шт.

26

577147R1

KEY

husker roll drive gear

2шт.

27

155277C1

SPACER, drive gear center

2шт.

28

155281C1

SHIM

bearing housing

8шт.

29

155284C11

HOUSING

ASSY., roll dr. shaft brg.

4шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 C-Z sq-nk. crg.

4шт.

18797R1

BOLT

7/16 x 1-3/4 C-Z hex-hd.

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

30

557995R11

COLLAR

W/SET SCREW, brg lkg.

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 hex-sco-hd.

2шт.

31

654967R1

SPROCKET, husk conveyor drive, 8T

2шт.

32

577147R1

KEY

husk conveyor drive sprocket

2шт.

33

155279C1

SPROCKET, husker roll driven, 18T

2шт.

34

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 PTF 30 degree angle

2шт.

35

634902R1

SPACER

slip clutch

2шт.

22820R1

BOLT, 7/16 x 3-1/4 C-Z dld

8шт.

425-127

SLOTTED NUT,7/16"-14, G5

NUT, 7/16 C-Z slt-hex.

8шт.

121224

SUPPORT

3/32" x 1"

8шт.

607891R1

WASHER

15/32 x 1 x 16 ga. C-Z

24шт.

36

28395H

SPRING

husker roll drive slip

8шт.

37

155280C1

HOLDER, husker roll drive slip

2шт.

10495D

NUT

3/4-16 slt. hex.

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

38

577147R1

KEY

slip clutch holder

2шт.

39

B12170

RATCHET,Clutch Slip, 94.49mm

husker roll drive slip

4шт.

40

632152R2

RETAINER

slip clutch pressure

2шт.

41

CHAIN, husker roll drive, use 65 links from 10-ft. roll marked 569089R91, one offset link 456929R91, one connecting link 587372R91

2шт.

42

937565R1

BRACKET, drive chain tightener

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 C-Z sq-nk. crg.

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

43

583619R1

BLOCK

drive chain tightener, L.H.

1шт.

43

583620R1

BLOCK

drive chain tightener, R.H.

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

44

154890C1

VALVE SPRING

SPRING, husker roll adj.

8шт.

45

937539R1

NUT, 1-8 hex. jam lock

10шт.

138572

WASHER, 1 C-Z int-tooth lock

10шт.

46

360626R2

SPRING

husker roll adj upper end

4шт.

47

575186R1

SNAP RING

RING, drive shaft snap

3шт.

48

935856R1

BUSHING

snap ring spacer

2шт.

49

162677C1

WASHER

husker roll drive shaft

14шт.

50

151401C1

BELLEVILLE WASHER

WASHER, spring

4шт.

51

155275V1

SHAFT, roll drive

2шт.

52

155643C1

SUPPORT, inner bolt anchor

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk. crg.

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

53

155979C1

PIN, roll pivot

2шт.

54

155980C1

ANGLE, roll pivot

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

4шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga.

2шт.

55

155622C1

SPACER, drive shaft rear

2шт.

56

155365C1

SUPPORT, roll lower pivot, R.H.

1шт.

18713R1

SCREW,Short NK, 1/2"-13 x 4 1/2", G2

BOLT, 1/2 x 4-1/4 C-Z sq-nk. crg.

3шт.

22817R1

BOLT, 1/2 x 4-1/2 C-Z sq-nk. crg.

3шт.

231-1448

NUT,1/2"-13, GB

1/2 C-Z nylon insert

6шт.

57

155363C1

SUPPORT, roll lower fixed, R.H.

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

6шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 hex-hd. mach.

6шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

6шт.
