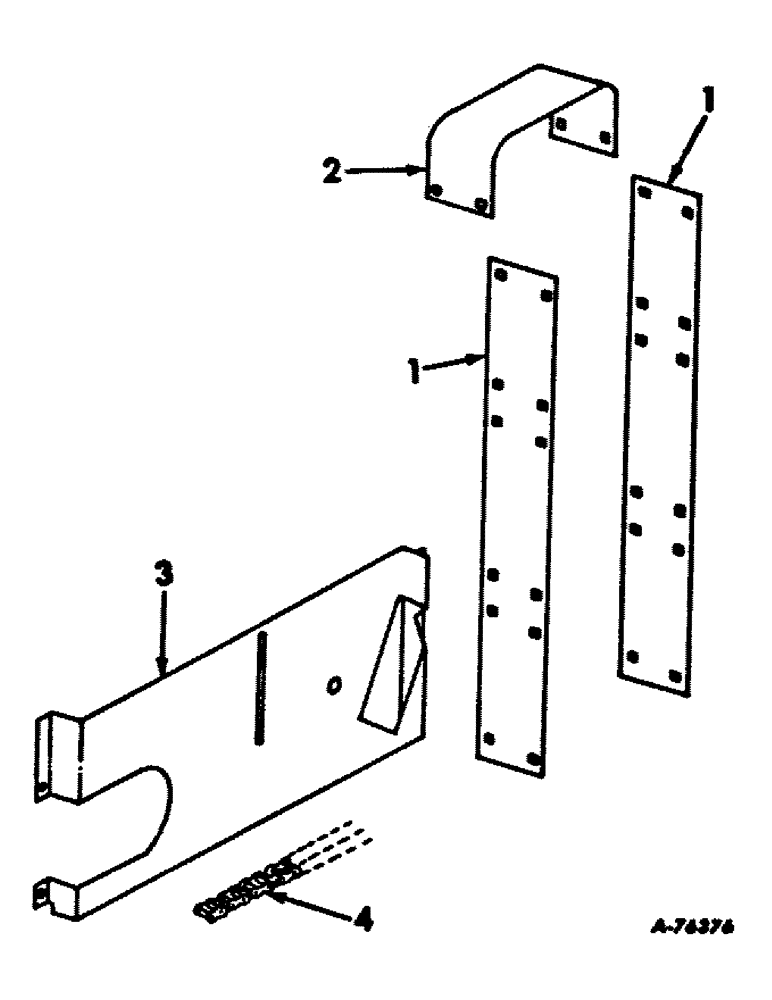

Запчасти Case IH 234 (A-39) - BASIC CORN HARVESTER, TRASH ROLL RELOCATION PARTS, FOR 234 SWEET CORN HARVESTER S/N 5782 AND BELOW (58) - ATTACHMENTS/HEADERS

1

164362C1

EXTENSION, trash roll hood side

4шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

40шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

40шт.

2

164363C1

EXTENSION, trash roll hood top

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

3

164364C1

BRACKET, trash roll outer support, L.H.

1шт.

3

164365C1

BRACKET, trash roll outer support, R.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

4

CHAIN ASSY., trash roll drive extension, use 5 links from a 10-ft. roll marked 1791D, 1 connecting link 1310D and 1 offset link 1315D

1шт.

2753972R1

PRODUCT GRAPHIC, McCormick

1шт.

163627C91

KIT, product graphic, Consists of the following

1шт.

1000618R5

DECAL

PRODUCT GRAPHIC, be careful

1шт.

1000619R5

PRODUCT GRAPHIC, be careful

1шт.

1000621R5

PRODUCT GRAPHIC, be careful

1шт.

1001655R1

PRODUCT GRAPHIC, safety

1шт.

202707C1

DECAL

PRODUCT GRAPHIC, be careful

1шт.

2754032R1

PRODUCT GRAPHIC

service model no.

2шт.

168541C1

PRODUCT GRAPHIC, be careful, L.H.

1шт.

168542C1

PRODUCT GRAPHIC, be careful, R.H.

1шт.
