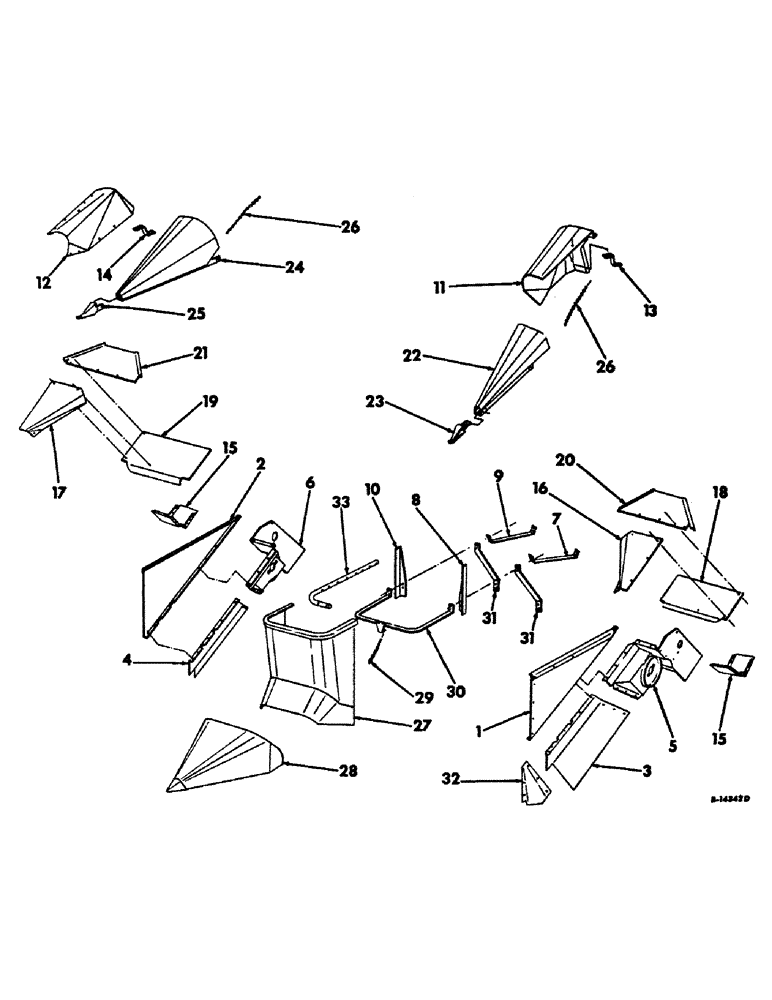

Запчасти Case IH 234 (A-36) - BASIC CORN HARVESTER, GATHERER SHIELDS AND DIVIDERS (58) - ATTACHMENTS/HEADERS

1

938104R2

SHIELD, inner gatherer upper, L.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

11шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

11шт.

2

938105R2

SHIELD, inner gatherer upper, R.H.

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

11шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

11шт.

3

938106R1

SHIELD, inner gatherer lower, L.H., serial no. 6782 and below

1шт.

3

173176C1

SHIELD, inner gatherer lower, L.H., serial no. 6783 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

9шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

9шт.

4

938107R1

SHIELD, inner gatherer lower, R.H., serial no. 6782 and below

1шт.

4

173177C1

SHIELD, inner gatherer lower, R.H., serial no. 6783 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

9шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

9шт.

5

169223C1

SECTION ASSY., inner gatherer rear, LH, serial no. 6782 and below

1шт.

5

173198R1

SECTION ASSY., inner gatherer rear, LH, serial no. 6783 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-kn. crg.

3шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-kn. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

2шт.

6

169224C1

SECTION ASSY., inner gatherer rear, R.H., serial no. 6782 and below

1шт.

6

173199C1

SECTION ASSY., inner gatherer rear, R.H., serial no. 6783 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg.

3шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

10шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

3шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

2шт.

7

938117R1

NUT

SUPPORT, shield upper, L.H., serial no. 6782 and below

1шт.

7

173192C1

SUPPORT, shield upper, L.H., serial no. 6783 and above

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk. crg.

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

8

938120R2

ANGLE, shield support, L.H.

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 hex-hd. mach.

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

938118R1

SUPPORT, shield upper, R.H., serial no. 6782 and below

1шт.

9

173193C1

SUPPORT, shield upper, R.H., serial no. 6783 and above

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk. crg.

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

938121R2

ANGLE, shield support, R.H.

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 hex-hd. mach.

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

11

938093R91

SHIELD ASSY., outer gatherer, L.H., serial no. 5767 and below

1шт.

11

168559C1

SHIELD ASSY., outer gatherer, L.H., serial no. 5768 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

7шт.

172449

SCREW,Hex, 5/8" - 18 x 1/2"

5/16 x 1/2 C-Z hex-hd. cap

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

12

938094R91

SHIELD ASSY., outer gatherer, R.H., serial no. 5767 and below

1шт.

12

168560C1

SHIELD ASSY., outer gatherer, R.H., serial no. 5768 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

7шт.

172449

SCREW,Hex, 5/8" - 18 x 1/2"

5/16 x 1/2 C-Z hex-hd. cap

3шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

938101R1

BRACKET, outer gatherer shield, L.H., serial no., Serial Range: 501-600

1шт.

13

154959C1

BRACE, outer gatherer shield, serial no., Serial Range: 601-5767

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

3шт.

120376

NUT,5/16"-18, G5

3шт.

134238R1

WASHER

11/32 x 1 x 16 ga. C-Z

1шт.

14

938102R1

BRACKET, outer gatherer shield, R.H., serial no., Serial Range: 501-600

1шт.

14

154959C1

BRACE, outer gatherer shield, R.H., serial no., Serial Range: 601-5767

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

3шт.

120376

NUT,5/16"-18, G5

3шт.

134238R1

WASHER

11/32 x 1 x 16 ga. C-Z

1шт.

15

938110R1

SHIELD, outer gatherer drive shaft

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

18шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

18шт.

16

938099R1

SECTION, beater cover extension outer, L.H., serial no. 5782 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

2шт.

17

938100R1

SECTION, beater cover extension outer, R.H., serial no. 5782 and below

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

2шт.

18

938111R91

COVER ASSY., beater, L.H., serial no. 6782 and below

1шт.

18

173172C1

COVER ASSY., beater, L.H., serial no. 6783 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18" C-Z whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

6шт.

19

938112R91

COVER ASSY., beater, R.H., serial no. 6782 and below

1шт.

19

173173C1

COVER ASSY., beater, R.H., serial no. 6783 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange whiz lock

6шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

6шт.

20

937191R1

COVER, beater rear, L.H., serial no. 6782 and below, not for Farmall 1206 tractor

1шт.

20

173200C1

COVER, beater rear, L.H., serial no. 6783 and above

1шт.

20

155230C1

COVER, beater rear, L.H., for Farmall 1206 tractor

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

2шт.

21

937192R1

COVER, beater rear, R.H., not for Farmall 1206 tractor, serial no. 6782 and below

1шт.

21

173201C1

COVER, beater rear, R.H., serial no. 6783 and above

1шт.

21

155231C1

COVER, beater rear, R.H., for Farmall 1206 tractor

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-1 C-Z whiz lock

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

2шт.

22

589510R92

DIVIDER ASSY.

POINT ASSY., divider outer, L.H., includes ref. no. 23

1шт.

23

U911

POINT, divider outer, L.H.

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 C-Z sq-nk. crg.

2шт.

20582R1

BOLT, 1/2 x 6-1/2 C-Z sq-nk. crg.

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

231-1448

NUT,1/2"-13, GB

1/2 znp. nylon insert

1шт.

120697

SCREW, 1/4 x 3/4 C-Z slt-fl-hd.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

24

589511R92

DIVIDER ASSY.

POINT ASSY., divider outer, R.H., includes ref. no. 25

1шт.

25

U912

END ASSY.

POINT, divider outer, R.H.

1шт.

18686R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT, 3/8 x 2-1/4 C-Z sq-nk. crg.

2шт.

20582R1

BOLT, 1/2 x 6-1/2 C-Z sq-nk. crg.

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

231-1448

NUT,1/2"-13, GB

1/2 znp. nylon insert

1шт.

120697

SCREW, 1/4 x 3/4 C-Z slt-fl-hd.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

26

937717R91

CHAIN ASSY., outer divider support

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd. mach.

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga. C-Z

2шт.

27

937718R91

DIVIDER ASSY., upper center, serial no. 6782 and below

1шт.

27

173188C1

DIVIDER ASSY., upper center, serial no. 6783 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

21шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

18шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

3шт.

28

937710R91

DIVIDER ASSY., lower center, serial no. 6782 and below

1шт.

28

173184C1

DIVIDER ASSY., lower center, serial no. 6783 and above

1шт.

21515R1

BOLT, 1/2 x 3-3/4 C-Z sq-nk. crg.

2шт.

231-1448

NUT,1/2"-13, GB

1/2 znp. nylon insert

2шт.

29

155623C91

CHAIN ASSY., center divider support

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd. mach.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga. C-Z

1шт.

30

937722R91

SUPPORT ASSY., center divider front, serial no. 6782 and below

1шт.

30

173196C1

SUPPORT ASSY., center divider front, serial no. 6783 and above

1шт.

31

938119R1

SUPPORT, shield lower, serial no. 6782 and below

2шт.

31

173194C1

SUPPORT, shield lower, serial no. 6783 and above

1шт.

31

173195C1

SUPPORT, shield lower, serial no. 6783 and above

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

32

173206C1

EXTENSION, inner gatherer shield lower, L.H., serial no. 6783 and above

1шт.

32

173207C1

EXTENSION, inner gatherer shield lower, R.H., serial no. 6783 and above

1шт.

33

173204C1

PIPE, upper center divider stiffener, L.H., serial no. 6783 and above

1шт.

33

173205C1

PIPE, upper center divider stiffener, R.H., serial no. 6783 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

14шт.

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

5/16 x 1-1/4 C-Z whiz lock

14шт.
