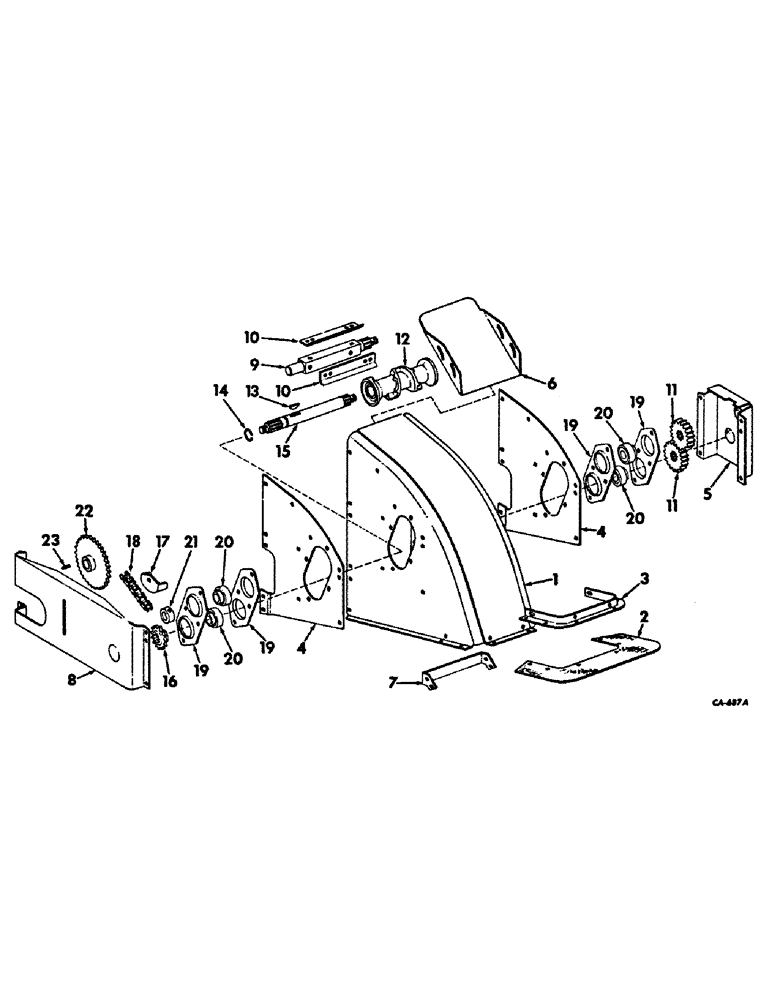

Запчасти Case IH 234 (A-34) - BASIC CORN HARVESTER, TRASH ROLLS, KNIFE TYPE, SERIAL NO. 5783 AND ABOVE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
169232C1
HOOD ASSY., trash roll
2шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk. crg.
12шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
12шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
24шт.
2
938284R1
SEAL, elevator hood
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
12шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
12шт.
3
938285R1
ANGLE, elevator hood seal support
2шт.
930017R1
NUT, 5/16 C-Z whiz lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z whiz lock
8шт.
4
169241C2
REINFORCEMENT, hood outer, L.H.
2шт.
4
169242C2
REINFORCEMENT, hood outer, R.H.
2шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 C-Z sq-nk. crg
12шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
12шт.
5
169248C1
SHIELD, trash roll gear, L.H.
1шт.
5
169249C1
SHIELD, trash roll gear, R.H.
1шт.
18763R1
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
5/16 x 1/2 C-Z sq-nk. crg.
6шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
4шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
10шт.
6
169246C1
SHIELD, trash roll front
2шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
8шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
8шт.
7
169247C1
SHIELD, trash roll, rear
2шт.
8
169243C1
SHIELD, trash roll drive chain, L.H.
1шт.
8
169244C1
SHIELD, trash roll drive chain, R.H.
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk. crg.
10шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
10шт.
9
169238C1
SHAFT, upper trash roll
2шт.
102609R1
LOCK NUT,3/4"-16
NUT, 3/4 znp. nylon insert
2шт.
467750R1
WASHER
25/32 x 1-1/2 x 11 ga. C-Z
2шт.
10
169240C1
SECTION, trash roll knife
8шт.
181694
BOLT,Hex, 1/2" - 20 x 7/8"
SCREW, 1/2-20 x 7/8 hex-hd cap
16шт.
11
580849R1
PINION
GEAR, trash roll 29T
4шт.
12
169237C1
ROLL, trash lower
2шт.
13
88745
WOODRUFF KEY,#28, 5/16" x 2 1/8", HT
KEY, 5/16 x 2-1/8 Woodruff
2шт.
14
156510C1
RING, lower trash roll snap
2шт.
15
169239C1
SHAFT, lower trash roll
2шт.
102609R1
LOCK NUT,3/4"-16
NUT, 3/4 znp. nylon insert
4шт.
607890R1
WASHER
1-7/32 x 1-3/4 x 16 ga. C-Z
10шт.
467750R1
WASHER
25/32 x 1-1/2 x 11 ga. C-Z
4шт.
21713R1
WASHER,25/32" x 1 3/4" x .120"
1-7/32 x 1-3/4 x 11 ga. C-Z
4шт.
16
155216C1
SPROCKET ASSY.
SPROCKET, trash roll driven 11T
2шт.
17
939324R1
BLOCK, trash roll drive chain tightener
2шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga. C-Z
2шт.
18
CHAIN ASSY., trash roll drive roller, use 55 links from 10-ft. roll marked 611362R91, 1 connecting link 574532R91 and 2 offset links 612612R91
2шт.
19
169236C1
FLANGE, bearing double
8шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
BOLT, 5/16 x 1/2 C-Z sq-nk crg.
8шт.
20485R1
BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd
7/16 x 3/4 C-Z sq-nk crg.
8шт.
425-147
JAM NUT,Jam, 7/16"-14, G5
7/16 C-Z hex-jam
8шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz lock
8шт.
131718R1
WASHER, 7/16 C-Z int-tooth lock
8шт.
20
566634R91
BEARING
ASSY., trash roll ball
8шт.
21
557117R11
COLLAR
COLLAR ASSY., bearing locking
2шт.
115321
SET SCREW,Hex Skt, 5/16"-18 x 5/16"
SCREW, 5/16 x 5/16 hex-soc-hd. cup-pt set
2шт.
22
152895C1
SPROCKET, trash roll drive 26T
2шт.
23
150532C1
KEY
trash roll drive sprocket
2шт.
Выбрано товаров: 61
