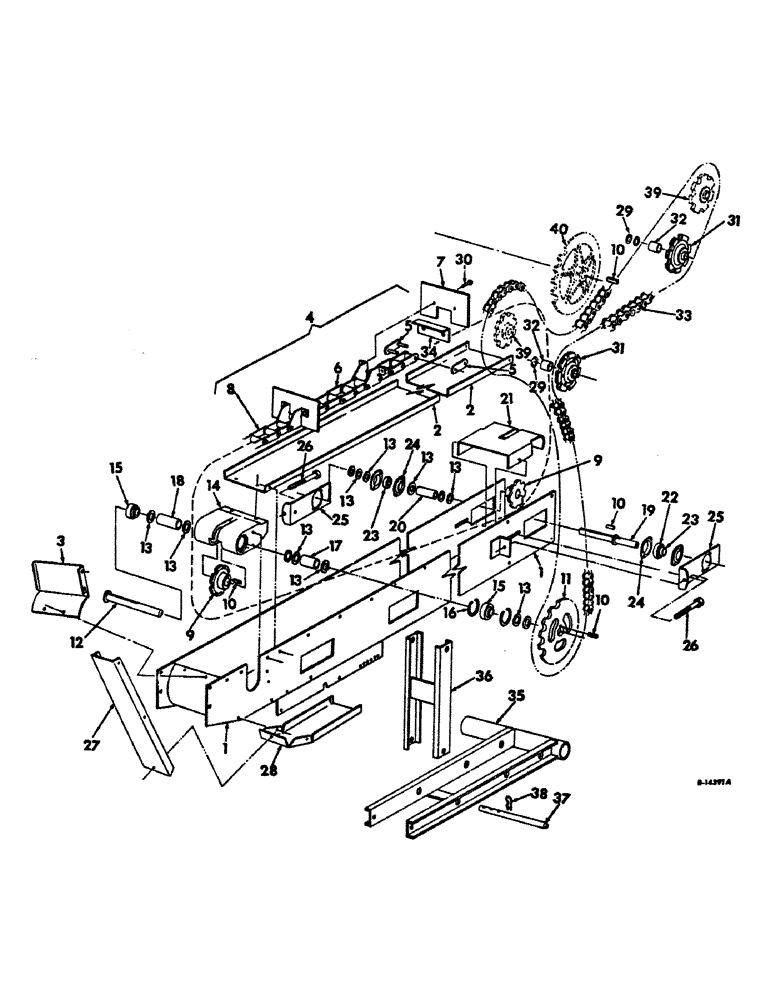

Запчасти Case IH 234 (A-28) - BASIC CORN HARVESTER, ELEVATOR HOUSING AND CONVEYOR DRIVE (58) - ATTACHMENTS/HEADERS

1

169221C1

HOUSING ASSY., elevator, L.H.

1шт.

1

169222C1

HOUSING ASSY., elevatro, R.H.

1шт.

2

937095R1

CHANNEL, chain deck

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg.

30шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

30шт.

3

937093R1

SHIELD, elevator front, L.H.

1шт.

3

937094R1

SHIELD, elevator front, R.H.

1шт.

14986R1

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

6шт.

4

937061R91

CONVEYOR W/FLIGHTS, elevator

2шт.

5

937913R91

DRAG LINK

LINK, connecting

2шт.

6

631253R91

LINK

roller

2шт.

7

937063R1

RUBBER FLIGHT

FLIGHT, conveyor chain

37шт.

8

937080R91

CONVEYOR ASSY., flight section

1шт.

9

937131R1

SPROCKET ASSY.

SPROCKET, conveyor chain, 7T

4шт.

10

150532C1

KEY

conveyor drive sprocket

8шт.

11

937066R1

SPROCKET, elevator driven, 16T

2шт.

86837293

SHAFT

1/2-20 x 1 C-Z hex-hd. cap

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

22770R1

WASHER

17/32 x 1-1/2 x 7 ga.

2шт.

12

937064R11

SHAFT ASSY., elevator drive

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

13

654283R1

THRUST WASHER

elevator drive shaft brg.

1шт.

14

938298R1

HOUSING, drive shaft brg., L.H.

1шт.

14

938299R1

HOUSING, drive shaft brg., R.H.

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

4шт.

120376

NUT,5/16"-18, G5

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 C-Z hex-hd. cap

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

15

586609R91

BALL BEARING

BEARING ASSY., elevator drive shaft

4шт.

16

555602R1

RING

elevator drive shaft brg.

4шт.

17

937065R1

SPACER, elevator drive shaft outer

2шт.

18

151182C1

SPACER, elevator drive shaft inner

2шт.

19

937072R11

SHAFT ASSY., elevator head

2шт.

181696

1/2-20 x 1 C-Z hex-hd. cap

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

22770R1

WASHER

17/32 x 1-1/2 x 7 ga.

2шт.

20

935188R1

SPACER, elevator head shaft inner

2шт.

21

937074R1

SHIELD, elevator head shaft

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

22

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY., elevator head shaft, inner and outer ball

4шт.

23

455102R11

COLLAR

W/SET SCREW, outer brg. lkg.

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd. cup-pt set

2шт.

24

155265C1

FLANGE

elevator head shaft brg.

8шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg.

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

8шт.

25

937073R2

BRACKET, conveyor chain tightener

4шт.

26

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

conveyor chain tightener

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

12шт.

27

937070R1

CHANNEL, elevator drive front

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

4шт.

28

937071R1

SHIELD, elevator drive lower

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

8шт.

29

379017R1

WASHER, idler sprocket

6шт.

30

937033R1

RIVET, flight to att. link

2шт.

31

151306C91

SPROCKET ASSY., outer gatherer, beater & elevator drive chain idler

4шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2 x 3 C-Z sq-nk. crg.

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga. C-Z

4шт.

32

48193K

SPACER, idler sprocket

4шт.

33

CHAIN, outer gatherer, beater and elevator drive, use 79 links from 10-ft. roll marked 569090R91, 1 connecting links 587368R91 and 1 roller link 567007R91

2шт.

34

152229C2

STRAP, elevator chain flight

37шт.

937033R1

RIVET, flight to attaching link

74шт.

35

937081R91

STAND ASSY., snapping unit support, L.H.

1шт.

35

937082R91

STAND ASSY., snapping unit support, R.H.

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

22805R1

PIN, 1/2 x 5-7/8 C-Z std-hd.

2шт.

36

937085R91

BRACE ASSY., snapping unit support

2шт.

37

937088R1

PIN, snapping unit stand

4шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

4шт.

18561R1

LOCK PIN,1/4" x 3", Slotted

Pin, 1/4" x 3", Slotted

4шт.

38

517843R1

COTTER PIN

PIN, 3/16 quick attachable

4шт.

39

SPROCKET, outer gatherer, beater and elevator drive 7-T, refer to gatherer drive gear case listing

1шт.

40

SPROCKET, beater driven 25-T, refer to elevator, cover, shield and auger beater listing

1шт.
