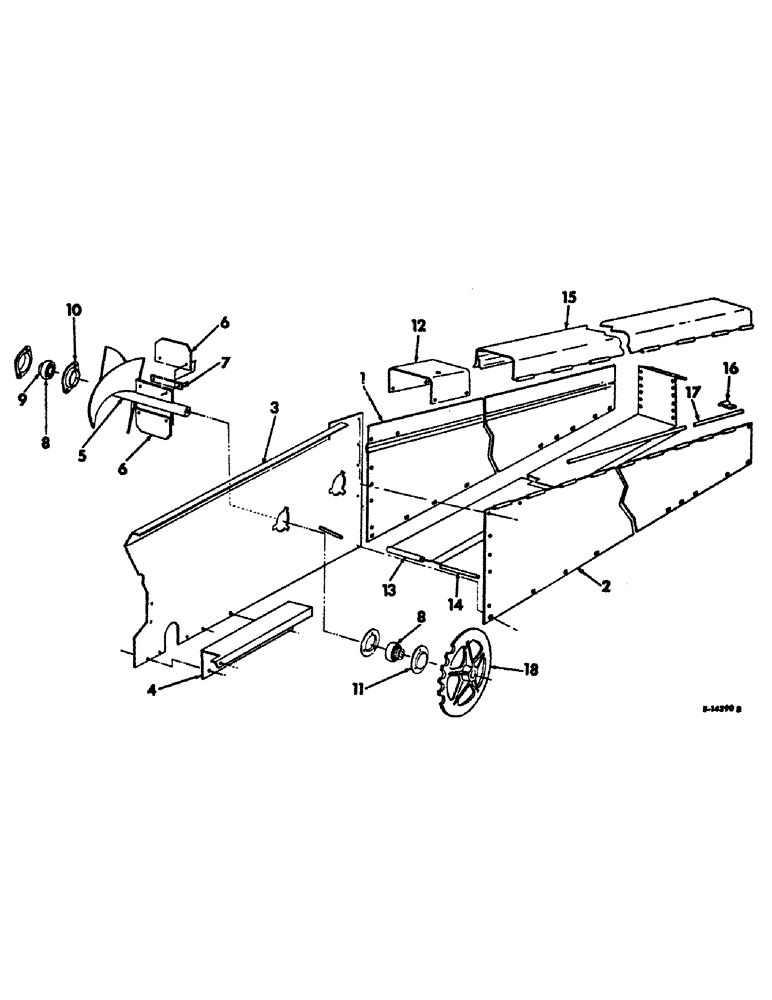

Запчасти Case IH 234 (A-27) - BASIC CORN HARVESTER, SNAPPING UNIT ELEVATOR, CHAIN, SHIELD AND AUGER BEATER (58) - ATTACHMENTS/HEADERS

1

155449C11

SIDE ASSY., elevator inner, L.H.

1шт.

1

155450C11

SIDE ASSY., elevator inner, R.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

4шт.

2

155459C1

SIDE, elevator outer, L.H.

1шт.

2

155460C1

SIDE, elevator outer, R.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

4шт.

3

937091R1

SHEET, side reinforcement, L.H.

1шт.

3

937092R1

SHEET, side reinforcement, R.H.

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg.

10шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

16шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss-hd. whiz lock

6шт.

4

937068R1

SHIELD, elevator drive upper left

1шт.

4

937069R1

SHIELD, elevator drive upper right

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

8шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

5

150406C91

AUGER ASSY., beater, L.H.

1шт.

5

150407C91

AUGER ASSY., beater, R.H.

1шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga.

12шт.

6

937078R1

FLIGHT, beater

4шт.

7

939326R1

STRAP, beater flight reinforcement

4шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16 x 1-1/4 C-Z sq-nk. crg.

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ASSY., beater ball

4шт.

9

455102R91

COLLAR

COLLAR ASSY., beater brg. locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4 hex-soc-hd.

2шт.

10

155265C1

FLANGE

beater shaft inner brg.

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

4шт.

11

462360R1

FLANGED BEARING

beater shaft outer brg.

4шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

6шт.

12

151399C1

CHANNEL, cover reinforcement

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

8шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

8шт.

13

155589C91

DEFLECTOR ASSY., elevator

2шт.

14

155455C1

PIN, elevator deflector pivot

2шт.

648002

KNIFE

1/8" x 3/4"

4шт.

15

169220C1

DOOR ASSY., elevator

2шт.

16

155452C1

CLAMP, elevator door hinge pin

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

4шт.

17

155454C1

ROD, elevator door hinge

2шт.

18

151305C1

SPROCKET, beater driven, 25-T

2шт.

181696

1/2-20 x 1 C-Z hex-hd. cap

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

550610R1

WASHER

17/32 x 1-1/2 x 3/16

2шт.
