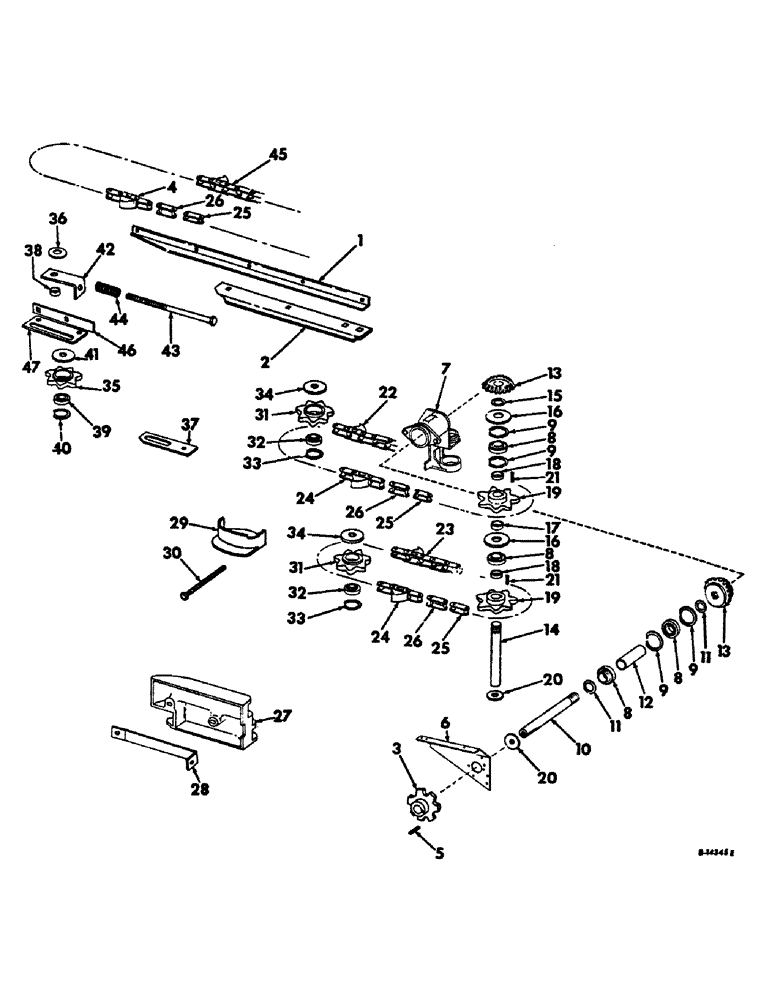

Запчасти Case IH 234 (A-22) - BASIC CORN HARVESTER, GATHERER CHAINS AND DRIVE (58) - ATTACHMENTS/HEADERS

175670C91

HOUSING ASSY., outer gatherer gear, L.H., parts accessories, serial no. 601 and above, includes ref. nos. 3, 5, 7 thru 21

1шт.

175671C91

HOUSING ASSY., outer gatherer gear, R.H., parts accessories, serial no. 601 and above, includes ref. nos. 3, 5, 7 thru 21

1шт.

1

937156R1

ANGLE, inner gatherer chain upper guide, L.H.

1шт.

1

937157R1

ANGLE, inner gatherer chain upper guide, R.H.

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 znd. sq-nk. crg.

5шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd. sq-nk. crg.

5шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

10шт.

2

151472C1

STRIP, inner gatherer chain lower guide, L.H.

1шт.

2

151473C1

STRIP, inner gatherer chain lower guide, R.H.

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

4шт.

3

151304C1

SPROCKET, outer gatherer, beater and elevator drive 7T

2шт.

86837293

SHAFT

1/2-20 x 1 C-Z hex-hd. cap

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

4

156230C91

CHAIN, inner gatherer L.H., service flight

1шт.

4

156231C91

CHAIN, inner gatherer R.H., service flight

1шт.

5

150532C1

KEY

drive shaft sprocket

2шт.

6

937123R1

BRACKET, outer gatherer support, L.H., serial no., Serial Range: 501-600

1шт.

6

154960C2

BRACKET, outer gatherer support, L.H., serial no. 601 and above

1шт.

6

937124R1

BRACKET, outer gatherer support, R.H., serial no., Serial Range: 501-600

1шт.

6

154961C2

BRACKET, outer gatherer support, R.H., serial no. 601 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd. mach.

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 C-Z slt-truss hd. whiz lock

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

937159R1

HOUSING, outer gatherer gear, L.H., serial no., Serial Range: 501-600

1шт.

7

154957C1

HOUSING, outer gatherer gear, L.H., serial no. 601 and above

1шт.

7

937160R1

HOUSING, outer gatherer gear, R.H., serial no., Serial Range: 501-600

1шт.

7

154958C1

HOUSING, outer gatherer gear, R.H., serial no. 601 and above

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 hex-hd. mach.

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

142619H

WASHER

13/32 x 3/4 x 11 ga. C-Z

4шт.

8

586609R91

BALL BEARING

BEARING ASSY., outer gatherer gear, housing ball

8шт.

9

555602R1

RING

outer gather gear housing

8шт.

10

937125R1

SHAFT, outer gatherer drive, L.H.

1шт.

10

937126R1

SHAFT, outer gatherer drive, R.H.

1шт.

11

654283R1

THRUST WASHER

drive shaft

12шт.

11

654338R1

THRUST WASHER

gear thrust

2шт.

11

169204C1

WASHER, gear thrust

2шт.

12

937127R1

SPACER, outer gatherer drive shaft

2шт.

13

654281R1

PINION

GEAR, outer gatherer bevel, L.H. 18T

2шт.

13

654280R1

PINION

GEAR, outer gatherer bevel, R.H. 18T

2шт.

14

937128R1

SHAFT, outer gatherer driven, L.H.

1шт.

14

937129R1

SHAFT, outer gatherer driven, R.H.

1шт.

15

654283R1

THRUST WASHER

outer gatherer driven

2шт.

15

654338R1

THRUST WASHER

gear thrust

2шт.

15

169204C1

WASHER, gear thrust

2шт.

16

654284R1

WASHER

outer gatherer driven

4шт.

17

152261C1

SPACER,1 1/4" Tube x 1 7/8"

outer gatherer driven

2шт.

18

937130R1

SPACER, outer gatherer driven, shaft upper & lower

4шт.

19

937131R1

SPROCKET ASSY.

SPROCKET, outer gatherer chain drive 7-T

4шт.

181696

1/2-20 x 1 C-Z hex-hd. cap

2шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

20

357020R1

WASHER

drive sprocket

4шт.

21

150532C1

KEY

gatherer chain drive sprocket

4шт.

22

937132R91

CHAIN (AG)

CHAIN W/FLIGHTS, outer gatherer upper 30 links

2шт.

23

937133R91

CHAIN (AG)

CHAIN W/FLIGHTS, outer gatherer lower 24 links

2шт.

24

631322R91

CHAIN ASSY., outer gatherer service flight, includes ref. nos. 25 & 26

1шт.

25

631253R91

LINK

gatherer chain lower

1шт.

26

937913R91

DRAG LINK

LINK, gatherer chain connecting

1шт.

27

150370C1

GUIDE, outer gatherer chain, L.H., serial no., Serial Range: 501-600

1шт.

27

154948C1

GUIDE, outer gatherer chain, L.H., serial no., Serial Range: 601-5767

1шт.

27

165831C1

GUIDE, outer gatherer chain, L.H., serial no. 5768 and above

1шт.

27

150371C1

GUIDE, outer gatherer chain, R.H., serial no., Serial Range: 501-600

1шт.

27

154949C1

GUIDE, outer gatherer chain, R.H., serial no., Serial Range: 601-5767

1шт.

27

165832C1

GUIDE, outer gatherer chain, R.H., serial no. 5768 and above

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk. crg.

2шт.

20907R1

BOLT, 5/16 x 3-3/4 hex-hd. mach.

4шт.

120376

NUT,5/16"-18, G5

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

28

937142R1

SUPPORT, outer gatherer chain guide, serial no., Serial Range: 501-600

2шт.

28

154956C1

SUPPORT, outer gatherer chain guide, serial no. 601 and above

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT, 5/16 x 1/2 C-Z sq-nk. crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 C-Z whiz lock

2шт.

29

151470C2

GUIDE

outer gatherer chain adj.

4шт.

30

151471C1

BOLT,Hex, 7/16" - 14 x 5 1/2", Full Thd

outer gatherer chain adj.

4шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

21763R1

WASHER

15/32 x 3/4 x 11 ga. C-Z

4шт.

31

937139R1

SPROCKET ASSY.

SPROCKET, outer gatherer idler 7-T

4шт.

18172R1

BOLT

3/4 x 3 C-Z hex-hd. mach.

4шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga. C-Z

12шт.

477243R1

WASHER,25/32" x 2" x .060"

25/32 x 2 x 16 ga. C-Z

4шт.

20825R1

WASHER

25/32 x 2 x 11 ga. C-Z

8шт.

32

586156R91

BEARING

ASSY., gatherer idler sprocket ball

4шт.

33

357323R1

RING, SNAP

RING GTHR. IDLER SPRKT. BRG. SNAP

4шт.

34

937150R1

WASHER

gatherer idler dust cap

4шт.

35

937139R1

SPROCKET ASSY.

SPROCKET, inner gatherer idler 7-T

2шт.

18172R1

BOLT

3/4 x 3 C-Z hex-hd. mach.

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

21753R1

WASHER

25/32 x 1-1/2 x 16 ga.

6шт.

477243R1

WASHER,25/32" x 2" x .060"

25/32 x 2 x 16 ga. C-Z

2шт.

36

619505R1

WASHER

inner gatherer idler

2шт.

37

152227C1

STRAP

idler sprocket adj. wear, serial no. 6782 and below

2шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z no. 3 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

38

152228C1

BUSHING, inner gatherer lower sprocket, serial no., Serial Range: 501-600

2шт.

38

154984C1

BUSHING

inner gatherer lower sprocket, serial no. 601 and above

2шт.

39

586156R91

BEARING

ASSY., gatherer idler sprocket ball

2шт.

40

357323R1

RING, SNAP

RING, gatherer idler sprocket brg. snap

2шт.

41

937150R1

WASHER

gatherer idler dust cap

2шт.

42

937141R1

BRACKET, inner gatherer idler sprocket adjusting

2шт.

43

457197R1

BOLT,Hex, 1/2" - 13 x 10 1/2", Gr 20

inner gatherer idler sprocket adj.

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

231-1448

NUT,1/2"-13, GB

1/2 znp. nylon insert

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga. C-Z

2шт.

44

631018R1

SPRING, inner gatherer idler sprocket adj.

2шт.

45

938287R91

CHAIN (AG)

CHAIN W/FLIGHTS, inner gatherer, L.H.

1шт.

45

938288R91

CHAIN (AG)

CHAIN W/FLIGHTS, inner gatherer, R.H.

1шт.

46

173209C1

PLATE, inner gatherer idler bracket wear, serial no. 6783 and above

2шт.

47

173208C1

STRAP, idler gatherer sprocket adj. wear, serial no. 6783 and above

2шт.
