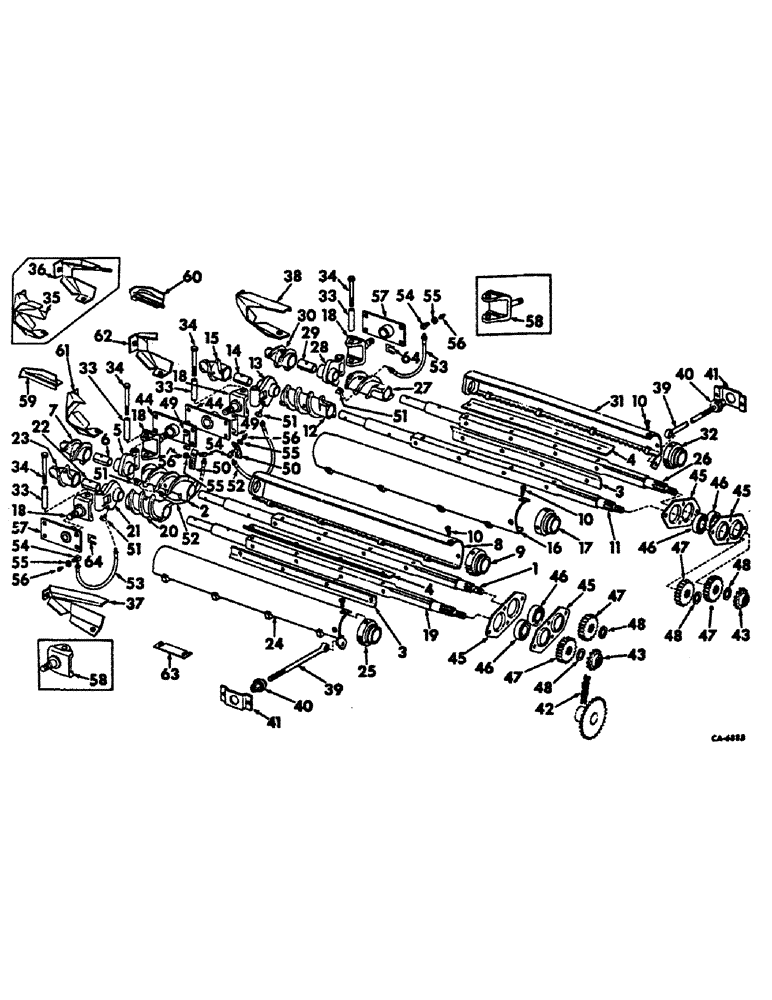

Запчасти Case IH 234 (A-20) - BASIC CORN HARVESTER, STALK ROLL & DRIVE, LIVE POINT ROLLS SERIAL NO. 5768 AND ABOVE (58) - ATTACHMENTS/HEADERS

165726C91

ROLL & STRIPPER ASSY., stalk roll inner, L.H. includes ref. nos. 1 thru 10

1шт.

1

170528C91

SHAFT ASSY., stalk roll inner L.H., includes ref. no. 2

1шт.

2

165740C2

SECTION, inner stalk roll helix, L.H.

1шт.

173703C1

PIN

5/16 x 2-1/4 groove hard

2шт.

164368C91

SET, stalk roll knife, parts accessories, includes ref. nos. 3 and 4

1шт.

3

164360C1

KNIFE

SECTION, stalk roll knife, L.H.

78шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2 x 7/8 C-Z hex-hd. cap

32шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

32шт.

4

164361C1

KNIFE

SECTION, stalk roll knife, R.H.

8шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2 x 7/8 C-Z hex-hd. cap

32шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

32шт.

5

165744C11

SUPPORT

ASSY., roll lower inner, L.H., includes ref. no. 6

1шт.

6

165746C1

BEARING

BUSHING, lower support

1шт.

7

165749C1

POINT, stalk roll inner front, L.H.

1шт.

173703C1

PIN

5/16 x 2-1/4 groove hard

1шт.

8

165751C91

SHIELD ASSY., stripper inner, L.H.

1шт.

9

938270R1

GEAR, stripper control inner, L.H.

1шт.

10

938275R91

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 3/4"

SCREW W/LOCK WASHER, control gear

8шт.

165727C91

ROLL & STRIPPER ASSY., stalk roll inner, R.H., includes ref. nos. 3, 4, 10 thru 17

1шт.

11

170529C91

SHAFT ASSY., stalk roll inner, R.H., includes ref. no. 12

1шт.

12

165741C2

SECTION, inner stalk roll helix, R.H.

1шт.

173703C1

PIN

5/16 x 2-1/4 groove hard

2шт.

13

165745C11

SUPPORT

ASSY., roll lower, inner, R.H., includes ref. no. 14

1шт.

14

165746C1

BEARING

BUSHING, lower support

1шт.

15

165750C1

POINT

roll inner front, R.H.

1шт.

173703C1

PIN

5/16 x 2-1/4 groove hard

1шт.

16

165752C91

SHIELD ASSY., stripper, inner, R.H.

1шт.

17

938271R1

GEAR, stripper control inner, R.H.

1шт.

18

165826C1

ANCHOR, stalk roll support

4шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 C-Z nylon insert

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

22241R1

WASHER

1-3/32 x 1-3/4 x 16 ga.

8шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga.

4шт.

165728C91

ROLL & STRIPPER ASSY., stalk roll outer, L.H., inlcudes ref. nos. 3, 4, 10, 19 thru 25

1шт.

19

170530C91

SHAFT ASSY., stalk roll outer, L.H., includes ref. no. 20

1шт.

20

165742C2

SECTION, outer stalk roll helix, L.H.

1шт.

173703C1

PIN

5/16 x 2-1/4 groove hard

2шт.

21

165745C11

SUPPORT

ASSY., roll lower outer L.H., includes ref. no. 22

1шт.

22

165746C1

BEARING

BUSHING, lower support

1шт.

23

165750C1

POINT

stalk roll outer, L.H.

1шт.

173703C1

PIN

5/16 x 2-1/4 groove hard

1шт.

24

165753C91

SHIELD ASSY., stripper outer, L.H.

1шт.

25

151667C1

GEAR, stripper control outer, L.H.

1шт.

165729C91

ROLL & STRIPPER ASSY., stalk roll outer, R.H., includes ref. nos. 3, 4, 10, 26 thru 32

1шт.

26

170531C91

SHAFT ASSY., stalk roll outer, R.H., includes ref. no. 27

1шт.

27

165743C2

SECTION, outer stalk roll helix, R.H.

1шт.

173703C1

PIN

5/16 x 2-1/4 groove hard

2шт.

28

165744C11

SUPPORT

ASSY., roll lower outer, R.H., includes ref. no. 29

1шт.

29

165746C1

BEARING

BUSHING, lower support

1шт.

30

165749C1

POINT, stalk roll outer, R.H.

1шт.

173703C1

PIN

5/16 x 2-1/4 groove hard

1шт.

31

165754C91

SHIELD ASSY., stripper outer, R.H.

1шт.

32

151668C1

GEAR, stripper control outer, R.H.

1шт.

33

165827C1

BUSHING

stalk roll support

4шт.

34

165828C1

BOLT

stalk roll support

4шт.

125250

SLOTTED NUT,1/2"-20, G8

NUT, 1/2 C-Z slt. hex.

4шт.

121224

SUPPORT

3/32" x 1"

4шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

8шт.

35

165734C92

SHIELD ASSY., stalk roll point inner, L.H., serial no. 6782 and below

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 C-Z hex-hd. tap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

36

165735R92

SHIELD ASSY., stalk roll point inner, R.H., serial no. 6782 and below

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 C-Z hex-hd. tap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

37

165736C92

SHIELD ASSY., stalk roll point outer, L.H.

2шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 C-Z hex-hd. tap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

38

165737C92

SHIELD

ASSY., stalk roll point outer, R.H.

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 C-Z hex-hd. tap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

39

938274R1

BOLT, stripper plate control

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 hex-hd. mach.

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 C-Z hex. jam

2шт.

40

632213R1

NUT, stripper plate control

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 C-Z hex. jam

2шт.

41

938276R1

BRACKET, stripper plate control nut

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

4шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

42

CHAIN ASSY., stalk roll drive, use 33 links from 10-ft. roll marked 611362R91, 2 connecting links 574532R91 and 1 roller link 612611R91

1шт.

43

155216C1

SPROCKET ASSY.

SPROCKET, stalk roll drive 11T

2шт.

44

165829C91

BRACKET ASSY., stalk roll support inner

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

8шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

45

585899R1

PLATE ASSY.

FLANGE, stalk roll rear brg. double

4шт.

46

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

ASSY., stalk roll rear ball

4шт.

47

580849R1

PINION

GEAR, stalk roll

4шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4 C-Z nylon insert

4шт.

178139

WASHER, 1-3/16 C-Z med. lock

4шт.

607890R1

WASHER

1-7/32 x 1-3/4 x 16 ga.

4шт.

48

584253R1

WASHER

25/32 x 1-3/4 x 3/16 hard

4шт.

49

161475C1

SHIM, stalk roll anchor

8шт.

50

169020C2

SUPPORT, inner roll lube hose

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg.

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

4шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z whiz lock

2шт.

51

580257R1

ADAPTER,60 Degree, 1/8"-27

1/8 60 degree lub. elbow

4шт.

52

580268R91

HOSE ASSY.

inner bank lube 16 inch

2шт.

53

584162R91

HOSE,0.19" ID x 7.00"

Outer Bank Lube 0.19" ID x 7.00"

2шт.

54

580258R1

ELBOW

90 degree bank lube

4шт.

55

581873R1

TUBE NUT,4.8 mm Length

1/8-27 bank lube elbow

4шт.

56

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str. lube

4шт.

57

165833C91

BRACKET ASSY., stalk roll support outer

2шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex-hd. mach.

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga.

8шт.

58

167266C1

ANCHOR, stalk roll support outer, serial no. 5767 and below

2шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 nylon insert

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

22241R1

WASHER

1-3/32 x 1-3/4 x 16 ga.

4шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga.

2шт.

59

173210C2

GUIDE, inner gatherer chain wear, L.H., serial no. 6783 and above

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd. no. 3 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

60

173211C2

GUIDE, inner gatherer chain wear, R.H., serial no. 6783 and above

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd. no. 3 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

61

173213C1

SHIELD ASSY., stalk roll point inner, L.H., serial no. 6783 and above

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 C-Z hex-hd. tap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

62

173214C1

SHIELD ASSY., stalk roll point inner, R.H., serial no. 6783 and above

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16 x 3/4 C-Z hex-hd. tap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

63

174443C1

SHIM, stalk roll knife section

1шт.

64

175273C1

SHIM

stalk roll support anchor

1шт.
