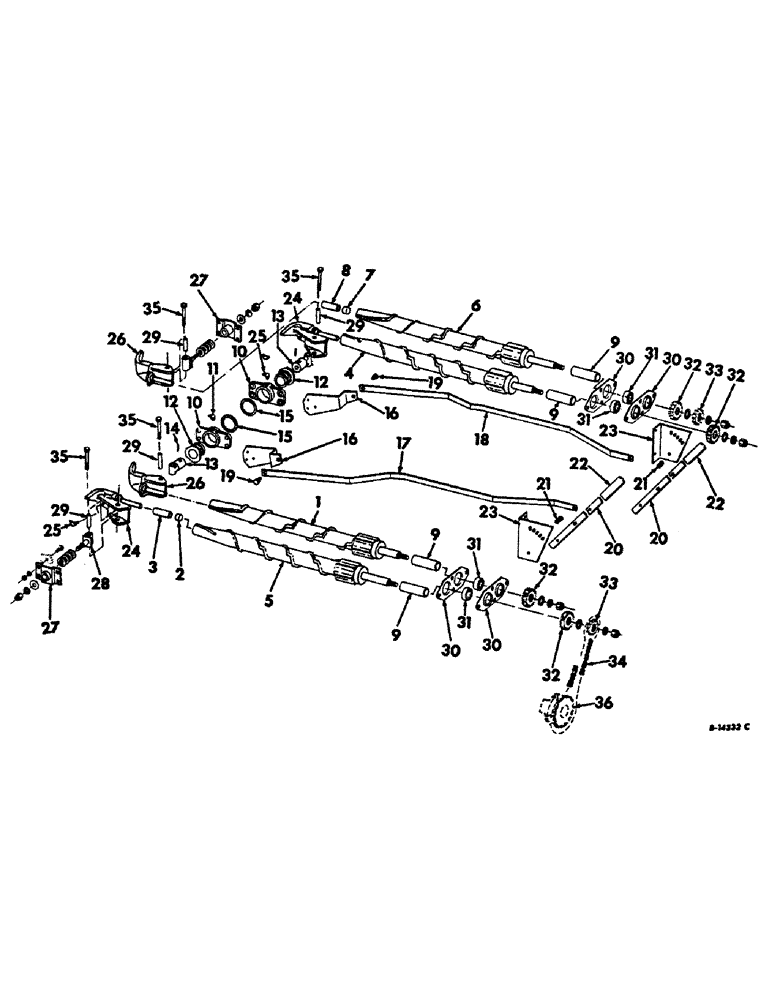

Запчасти Case IH 234 (A-18) - BASIC CORN HARVESTER, STALK ROLL AND DRIVE, DEEP POCKET SPECIAL SERIAL NO. 5767 AND BELOW (58) - ATTACHMENTS/HEADERS

1

155247C91

ROLL ASSY., stalk inner L.H., includes ref. nos. 2 and 3, serial no., Serial Range: 501-600

1шт.

1

155036C91

ROLL ASSY., stalk inner L.H., includes ref. nos. 2 and 3, serial no., Serial Range: 601-5767

1шт.

107564

RIVET, 3/8 x 2-1/2 small b-hd.

1шт.

2

349373R1

PLUG

1-1/4 cup

2шт.

3

575024R1

BUSHING, stalk roll lower

2шт.

4

155248C91

ROLL ASSY., stalk inner R.H., includes ref. nos. 7 and 8, serial no., Serial Range: 501-600

1шт.

4

155037C91

ROLL ASSY., stalk inner R.H., includes ref. nos. 7 and 8, serial no., Serial Range: 601-5767

1шт.

107564

RIVET, 3/8 x 2-1/2 small b-hd.

1шт.

5

155249C91

ROLL ASSY., stalk outer L.H., includes ref. nos. 2 and 3, serial no., Serial Range: 501-600

1шт.

5

155038C91

ROLL ASSY., stalk outer L.H., includes ref. nos. 2 and 3, serial no., Serial Range: 601-5767

1шт.

107564

RIVET, 3/8 x 2-1/2 small b-hd.

1шт.

6

155250C91

ROLL ASSY., stalk outer R.H., includes ref. nos. 7 and 8, serial no., Serial Range: 501-600

1шт.

6

155039C91

ROLL ASSY., stalk outer R.H., includes ref. nos. 7 and 8, serial no., Serial Range: 601-5767

1шт.

107564

RIVET, 3/8 x 2-1/2 snall b-hd.

1шт.

7

349373R1

PLUG

1-1/4 cup

2шт.

8

575024R1

BUSHING, stalk roll lower

2шт.

9

937914R1

SPACER, stalk roll rear shaft, serial no., Serial Range: 501-600

1шт.

9

155043C1

SPACER, stalk roll rear shaft, serial no., Serial Range: 601-5767

8шт.

10

150831C1

HOUSING, stalk roll control cam, serial no. 501 to 600, serial no., Serial Range: 601-5767

2шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 C-Z hex-hd. mach.

8шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga. C-Z

8шт.

11

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 degree angle lub.

2шт.

12

150832C1

CAM, stalk roll control, L.H.

1шт.

12

150833C1

CAM, stalk roll control, R.H.

1шт.

13

150834C1

ANCHOR, control cam support

2шт.

14

150835C1

PIN, stalk roll control cam

2шт.

15

150836C1

SHIM, control cam housing

8шт.

16

150837C1

LEVER, inner stalk roll cam

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd. mach.

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

17

151943C1

STRAP, stalk roll cam link, L.H., serial no., Serial Range: 501-600

1шт.

17

155041C1

STRAP, stalk roll cam link, L.H., serial no., Serial Range: 601-5767

1шт.

18

151944C1

STRAP, stalk roll cam link, R.H., serial no., Serial Range: 501-600

1шт.

18

155042C1

STRAP, stalk roll cam link, R.H., serial no., Serial Range: 601-5767

1шт.

19

578440R1

BOLT, stalk roll control lever

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

150839C11

LEVER ASSY., inner stalk roll

2шт.

22818R1

BOLT, 3/8 x 2-1/4 C-Z dld. hex-hd.

2шт.

125127

NUT

3/8 C-Z slt. hex.

2шт.

121224

SUPPORT

3/32" x 1"

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga. C-Z

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga. C-Z

2шт.

21

2189A

SPRING, stalk roll control lever

2шт.

22

632519R1

GRIP

stalk roll control lever

2шт.

23

150841C1

BRACKET, control lever quadrant, L.H.

1шт.

23

150842C1

BRACKET, control lever quadrant, R.H.

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex. hd. mach.

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

24

161112C91

SUPPORT ASSY., stalk roll lower, L.H., serial no., Serial Range: 601-5767

2шт.

24

161114C91

SUPPORT ASSY., stalk roll lower, L.H., serial no., Serial Range: 501-600

2шт.

25

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 degree angle lub.

4шт.

26

161111C91

SUPPORT ASSY., stalk roll lower, R.H., serial no., Serial Range: 601-5767

2шт.

26

161113C91

SUPPORT ASSY., stalk roll lower, R.H., serial no., Serial Range: 501-600

2шт.

27

937917R91

HUB ASSY., stalk roll support, serial no., Serial Range: 501-600

2шт.

27

155054C91

HUB ASSY., stalk roll support, anchor outer, serial no., Serial Range: 601-5767

2шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

28

937916R1

ANCHOR, stalk roll support outer

2шт.

102609R91

NUT, 3/4-16 znp. nylon insert

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

22181R1

WASHER, 1-3/32 x 1-3/4 x 16 ga. C-Z

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga. C-Z

2шт.

29

158783C1

BUSHING

stalk roll support anchor, serial no., Serial Range: 601-5767

4шт.

29

580184R1

BUSHING, stalk roll support anchor, serial no., Serial Range: 501-600

4шт.

30

585899R1

PLATE ASSY.

FLANGE, stalk roll rear brg. double

4шт.

31

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

ASSY., stalk roll rear ball

4шт.

32

580849R1

PINION

GEAR, stalk roll

4шт.

33

586318R1

PINION

SPROCKET, stalk roll driven 13-T, serial no., Serial Range: 501-600

4шт.

33

586251R1

SPROCKET, stalk roll driven 16-T, serial no., Serial Range: 601-5767

2шт.

34

CHAIN, stalk roll drive, use 33 links from 10-ft. roll marked 611362R91, 2 connecting links 574532R91 and 1 roller link 612611R91

2шт.

35

161160C1

BOLT,Hex, 1/2" - 20 x 4", Drilled

stalk roll lower support

4шт.

125250

SLOTTED NUT,1/2"-20, G8

NUT, 1/2-20 C-Z slt. hex.

4шт.

121224

SUPPORT

3/32" x 1"

4шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

8шт.

36

SPROCKET, stalk roll drive 23-T, refer to snapping unit drive gear case listing

1шт.
