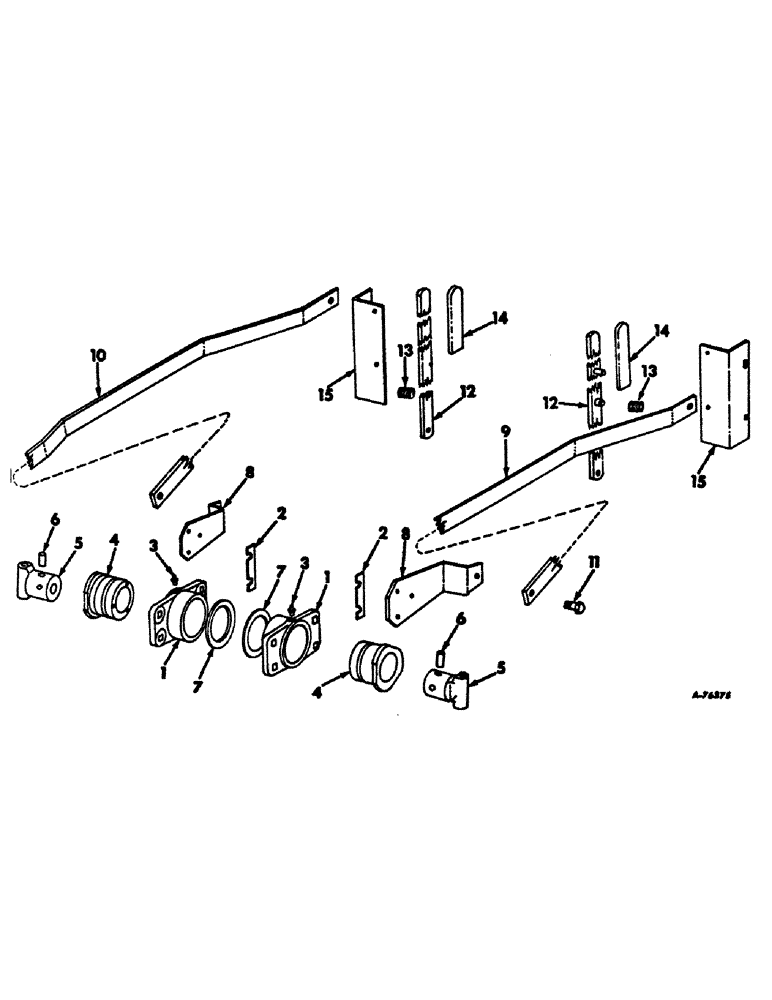

Запчасти Case IH 234 (A-16) - BASIC CORN HARVESTER, STALK ROLL CLEAN-OUT CONTROL ATTACHMENT SERIAL NO. 5767 AND BELOW (58) - ATTACHMENTS/HEADERS

1

155040C1

HOUSING, stalk roll control cam

2шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 C-Z hex-hd. mach.

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga. C-Z

8шт.

2

161475C1

SHIM, stalk roll control cam

16шт.

3

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 degree angle lub., control cam housing

2шт.

4

150832C1

CAM, stalk roll control, L.H.

1шт.

4

150833C1

CAM, stalk roll control, R.H.

1шт.

5

150834C1

ANCHOR, control cam support

2шт.

6

150835C1

PIN, stalk roll control cam

2шт.

7

150836C1

SHIM, control cam housing

8шт.

8

150837C1

LEVER, stalk roll cam

2шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 C-Z hex-hd. mach.

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

9

155041C1

STRAP, stalk roll control link, L.H.

1шт.

10

155042C1

STRAP, stalk roll control cam, R.H.

1шт.

11

578440R1

BOLT, stalk roll control lever

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

150839C11

LEVER ASSY., stalk roll control

2шт.

22818R1

BOLT, 3/8 x 2-1/4 C-Z dld. hex-hd. mach.

2шт.

425-126

SLOTTED NUT,3/8"-16, G5

NUT, 3/8 C-Z slt. hex.

2шт.

121224

SUPPORT

3/32" x 1"

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga. C-Z

2шт.

178373R1

WASHER

17/32 x 1 x 16 ga. C-Z

2шт.

13

2189A

SPRING, stalk roll control lever

2шт.

14

632519R1

GRIP

stalk roll control lever

2шт.

15

165453C1

BRACKET, roll control quadrant, L.H.

1шт.

15

165454C1

BRACKET, roll control quadrand, R.H.

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd. mach.

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
