Запчасти Case IH 234 (A-14) - BASIC CORN HARVESTER, STALK ROLL AND DRIVE, STRIPPER TYPE REGUALR SERIAL 5767 AND BELOW (58) - ATTACHMENTS/HEADERS

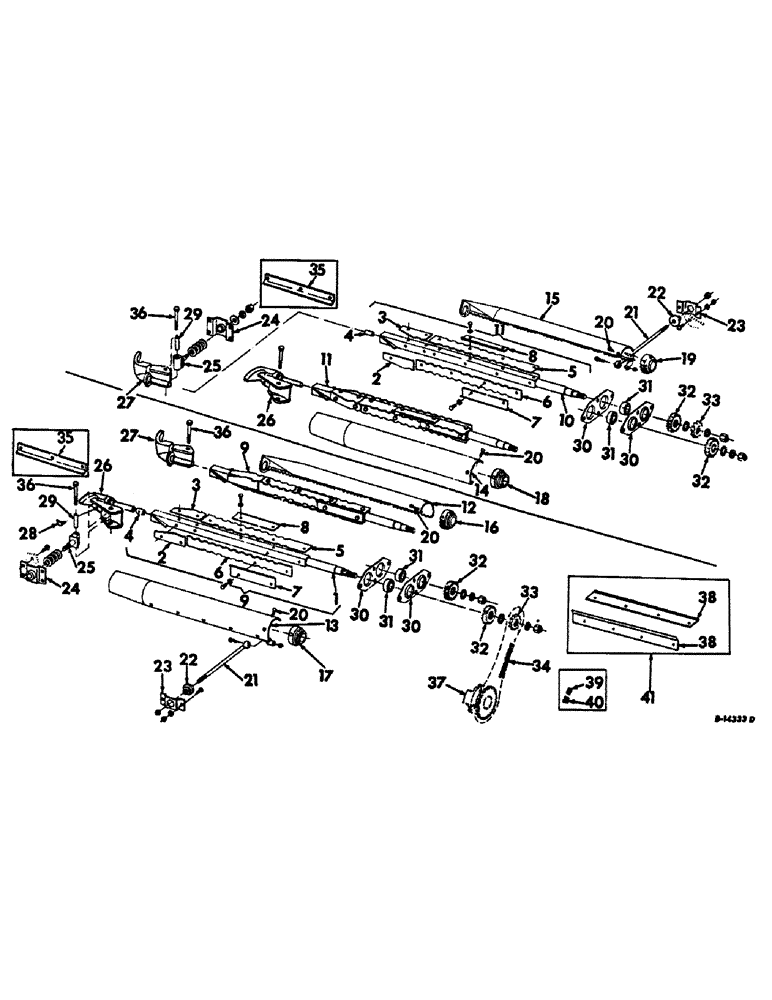

Схема запчастей Case IH 234 - (A-14) - BASIC CORN HARVESTER, STALK ROLL AND DRIVE, STRIPPER TYPE REGUALR SERIAL 5767 AND BELOW (58) - ATTACHMENTS/HEADERS
32
29
18
39
28
6
8
5
7
20
29
32
2
36
31
38
19
16
30
31
11
36
31
37
22
3
41
10
15
26
11
35
35
12
25
21
5
32
27
20
30
22
32
30
3
25
20
26
27
9
40
34
33
7
20
23
8
14
38
13
30
31
24
4
9
4
17
24
2
6
23
21
36
33

Артикул

Название

Примечание

Количество

1

155048C91

SHAFT ASSY., stalk roll inner L.H., serial no., Serial Range: 601-5767

1шт.

1

151673C91

SHAFT ASSY., stalk roll inner L.H., serial no., Serial Range: 501-600

1шт.

1

155050C91

SHAFT ASSY., stalk roll outer L.H., serial no., Serial Range: 601-5767

1шт.

1

151675C11

SHAFT ASSY., stalk roll outer L.H., serial no., Serial Range: 501-600

1шт.

2

938136R1

VALVE BLOCK

SECTION, stalk roll front no. 1

8шт.

134909

WASHER

RIVET, 5/16 x 2-1/4 small f-hd.

2шт.

3

938137R1

VALVE BLOCK

SECTION, stalk roll front no. 2

8шт.

134909

WASHER

RIVET, 5/16 x 2-1/4 small f-hd.

2шт.

4

589813R1

BUSHING

stalk roll shaft

8шт.

5

654298R1

VALVE BLOCK

SECTION, stalk roll rear no. 1

8шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2 x 7/8 C-Z hex-hd. cap

32шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

32шт.

6

654299R1

VALVE BLOCK

SECTION, stalk roll rear no. 2

8шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2 x 7/8 C-Z hex-hd. cap

8шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

8шт.

7

935627R2

LUG

stalk roll no. 1

8шт.

86837293

SHAFT

1/2-20 x 1 C-Z hex-hd. cap

60шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

16шт.

8

935628R2

LUG

stalk roll no. 2

8шт.

181696

1/2-20 x 1 C-Z hex-hd. cap

60шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

16шт.

9

938130R91

ROLL ASSY., stalk inner L.H., serial no., Serial Range: 501-600

1шт.

9

155044C91

ROLL ASSY., stalk inner L.H., serial no., Serial Range: 601-5767

1шт.

9

938132R91

ROLL ASSY., stalk outer L.H., serial no., Serial Range: 501-600

1шт.

9

155046C91

ROLL ASSY., stalk outer L.H., serial no., Serial Range: 601-5767

1шт.

10

151674C91

SHAFT ASSY., stalk roll inner R.H., serial no., Serial Range: 501-600

1шт.

10

155049C91

SHAFT ASSY., stalk roll inner R.H., serial no., Serial Range: 601-5767

1шт.

10

151676C91

SHAFT ASSY., stalk roll outer R.H., serial no., Serial Range: 501-600

1шт.

10

155051C91

SHAFT ASSY., stalk roll outer R.H., serial no., Serial Range: 601-5767

1шт.

11

938131R91

ROLL ASSY., stalk inner R.H., serial no., Serial Range: 501-600

1шт.

11

155045C91

ROLL ASSY., stalk inner R.H., serial no., Serial Range: 601-5767

1шт.

11

938133R91

ROLL ASSY., stalk outer R.H., serial no., Serial Range: 501-600

1шт.

11

155047C91

ROLL ASSY., stalk outer R.H., serial no., Serial Range: 601-5767

1шт.

12

938256R92

SHIELD ASSY., stalk roll stripper, inner, L.H.

1шт.

13

938263R92

SHIELD ASSY., stalk roll stripper, outer, L.H.

1шт.

14

938257R92

SHIELD ASSY., stalk roll stripper, inner, R.H.

1шт.

15

938264R92

SHIELD

ASSY., stalk roll stripper, outer, R.H.

1шт.

16

938270R1

GEAR, stripper plate control, inner, L.H.

1шт.

17

151667C1

GEAR, stripper plate control, outer, L.H.

1шт.

18

938271R1

GEAR, stripper plate control, inner, R.H.

1шт.

19

151668C1

GEAR, stripper plate control, outer, R.H.

1шт.

20

938275R91

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 3/4"

SCREW W/LOCK WASHER, control gear

8шт.

21

938274R1

BOLT, stripper plate control

2шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 C-Z hex-hd. mach.

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 C-Z hex. jam

2шт.

22

632213R1

NUT, stripper plate control

2шт.

124847

COLLAR

5/8 C-Z hex. jam

2шт.

23

938276R1

BRACKET, stripper plate control nut

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

24

937917R91

HUB ASSY., stalk roll support anchor, inner, serial no., Serial Range: 501-600

2шт.

24

155054C91

HUB ASSY., stalk roll support anchor, inner, serial no., Serial Range: 601-5767

2шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z hex. hd. mach.

8шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga. C-Z

8шт.

25

937916R1

ANCHOR, stalk roll support, inner

2шт.

102609R1

LOCK NUT,3/4"-16

NUT, 3/4-16 znp. nylon insert

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga. C-Z

2шт.

22241R1

WASHER

1-3/32 x 1-3/4 x 16 ga. C-Z

4шт.

26

161112C91

SUPPORT ASSY., stalk roll lower, L.H.

2шт.

27

161111C91

SUPPORT ASSY., stalk roll lower, R.H.

2шт.

28

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 degree angle lub.

4шт.

29

158783C1

BUSHING

stalk roll support anchor, serial no., Serial Range: 601-5767

4шт.

29

580184R1

BUSHING, stalk roll support anchor, serial no., Serial Range: 501-600

4шт.

30

585899R1

PLATE ASSY.

FLANGE, stalk roll rear brg. double

4шт.

31

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

ASSY., stalk rear ball

4шт.

32

580849R1

PINION

GEAR, stalk roll

4шт.

33

586318R1

PINION

SPROCKET, stalk roll driven 13-T, serial no., Serial Range: 501-600

2шт.

33

155216C1

SPROCKET ASSY.

SPROCKET, stalk roll driven 11-T, serial no. 601 to 5767, also used special to increase RPM on stripper rolls serial no., Serial Range: 501-600

2шт.

34

CHAIN, stalk roll drive, use 33 links from 10-ft. roll marked 611362R91 and one connecting link 574532R91

2шт.

35

153765C2

LUG, stalk roll no. 1 3-hole, special

1шт.

36

161160C1

BOLT,Hex, 1/2" - 20 x 4", Drilled

stalk roll lower support

4шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

4шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

4шт.

115551

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

8шт.

37

SPROCKET, stalk roll drive 23-T, refer to snapping unit drive gear case listing

1шт.

38

164360C1

KNIFE

SECTION, stalk roll knife, L.H.

8шт.

38

164361C1

KNIFE

SECTION, stalk roll knife, R.H., for 234 sweet corn harvester

8шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2 x 7/8 C-Z hex-hd. cap

64шт.

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

64шт.

39

574532R91

CLIP, SPRING

LINK, stalk roll drive connecting, for 234 sweet corn harvester

2шт.

40

612611R91

LINK

stalk roll drive roller, for 234 sweet corn harvester

2шт.

41

164368C91

SET, stalk roll knife, Consists of

1шт.

164360C1

KNIFE

SECTION L.H.

8шт.

164361C1

KNIFE

SECTION R.H.

8шт.

Выбрано товаров: 88
