(A-13[1]) - WEED KNIFE ATTACHMENT FOR LIVE POINT ROLLS SERIAL NO. 5768 AND ABOVE

Запчасти Case IH 234 (A-13[1]) - WEED KNIFE ATTACHMENT FOR LIVE POINT ROLLS SERIAL NO. 5768 AND ABOVE (58) - ATTACHMENTS/HEADERS

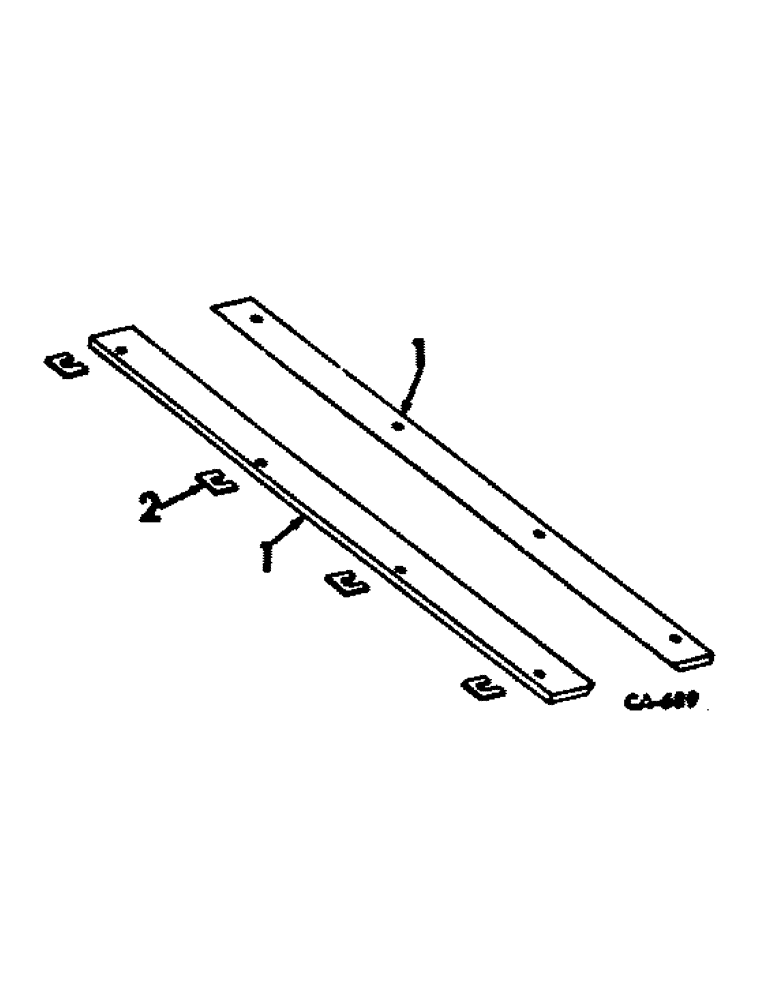

Схема запчастей Case IH 234 - (A-13[1]) - WEED KNIFE ATTACHMENT FOR LIVE POINT ROLLS SERIAL NO. 5768 AND ABOVE (58) - ATTACHMENTS/HEADERS
2
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

165761C1

BLADE, stalk roll weed knife inner

2шт.

1

165762C1

BLADE, stalk roll weed knife outer

2шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16 x 1 C-Z hex-hd. cap

16шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

16шт.

2

151670C1

SHIM

stalk roll weed knife

48шт.
