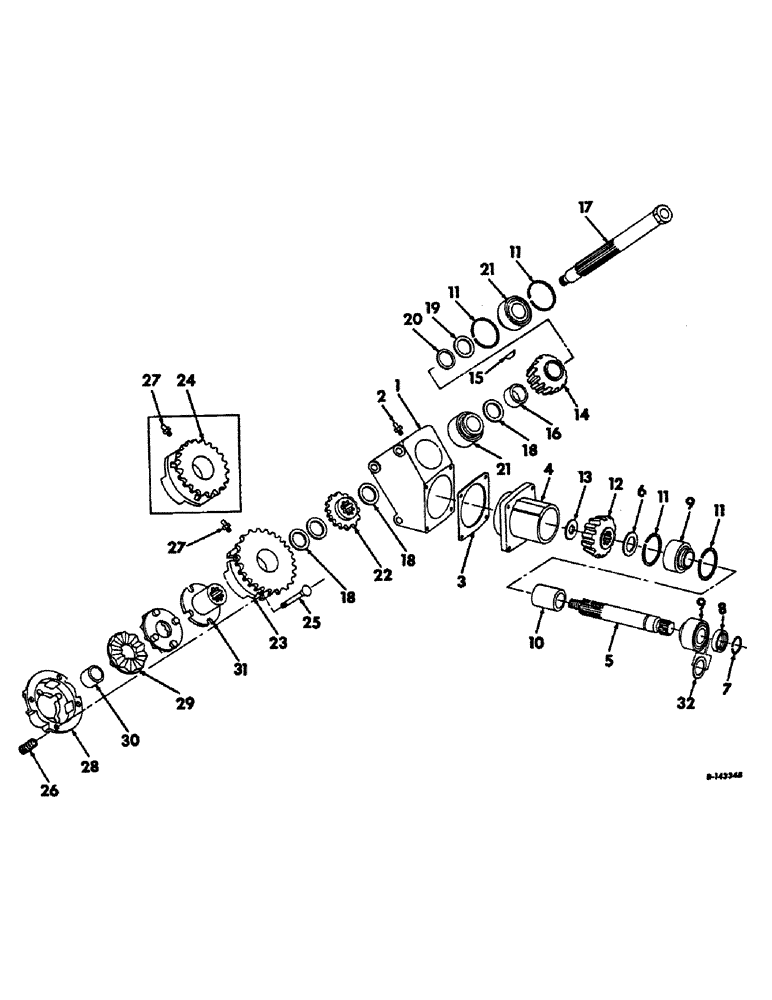

Запчасти Case IH 234 (A-11) - BASIC CORN HARVESTER, SNAPPING UNIT DRIVE GEARCASE (58) - ATTACHMENTS/HEADERS

175667C91

CASE W/SLIP CLUTCH, gear, parts accessories, includes ref. nos. 1 thru 32

2шт.

1

936850R1

CASE, gear

2шт.

18716R1

BOLT,Short NK, 1/2"-13 x 6", G2

1/2 x 6 C-Z sq-nk. crg.

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga. C-Z

6шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

3

155970C91

SHIM, gear case, service package, Consists of

2шт.

YELLOW .020

2шт.

TRANSMATTE .0075

2шт.

BLUE .005-

2шт.

4

936851R1

HOUSING, input shaft brg.

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-3/4 C-Z hex-hd. cap

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

5

936859R1

SHAFT, input

2шт.

10495D

NUT

3/4-16 slt. hex., jam

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

6

581074R1

WASHER, input shaft

4шт.

7

575186R1

SNAP RING

RING, input shaft spacer

2шт.

8

935856R1

BUSHING

COLLAR, input shaft

2шт.

9

586649R91

BEARING

ASSY., input shaft ball

4шт.

10

152926C1

SPACER

input shaft brg.

2шт.

11

360936R1

RING

brg. snap

8шт.

12

936856R1

GEAR, drive 15-T

2шт.

13

151401C1

BELLEVILLE WASHER

WASHER, spring

2шт.

14

936858R1

GEAR, driven 15-T

2шт.

15

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

KEY, 5/16 x 1 ast. Woodruff B

2шт.

16

150533C1

SPACER, driven gear

2шт.

17

936857R11

SHAFT ASSY., output

2шт.

10495D

NUT

3/4-16 slt. hex. jam

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

178139

WASHER, 1-3/16 C-Z med. lock

2шт.

18

581074R1

WASHER, drive sprocket

16шт.

19

161457C1

WASHER, driven gear

2шт.

20

585961R1

WASHER, gear case upper brg.

2шт.

21

566632R91

BALL BEARING

ASSY., output shaft ball

4шт.

22

586318R1

PINION

SPROCKET, gatherer drive 13-T

2шт.

23

155215C1

SPROCKET, stalk roll drive 23-T, serial no. 601 and above, not 234 sweet corn harvester, not live point rolls

2шт.

24

938277R1

SPROCKET, stalk roll drive 27-T, serial no. 501 to 600, also used special to increase RPM on stripper rolls, serial no. 601 and above, standard on 234 sweet corn harv., for live point rolls

2шт.

25

587021R1

BOLT,Sq Nk, 7/16" - 14 x 3", Drilled

slip clutch spring

8шт.

425-127

SLOTTED NUT,7/16"-14, G5

NUT, 7/16-14 C-Z slt. hex.

8шт.

121224

SUPPORT

3/32" x 1"

8шт.

607891R1

WASHER

15/32 x 1 x 16 ga. C-Z

8шт.

26

28395H

SPRING

stalk roll drive slip clutch

8шт.

27

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

28

632152R2

RETAINER

PLATE, slip clutch pressure

2шт.

10495D

NUT

3/4-16 slt-hex. jam

2шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga. C-Z

2шт.

29

B12170

RATCHET,Clutch Slip, 94.49mm

slip clutch

4шт.

155685C1

SPACER

slip clutch

2шт.

31

632129R1

BUSHING

HOLDER, slip clutch ratchet

2шт.

32

162677C1

WASHER

bearing collar

2шт.
