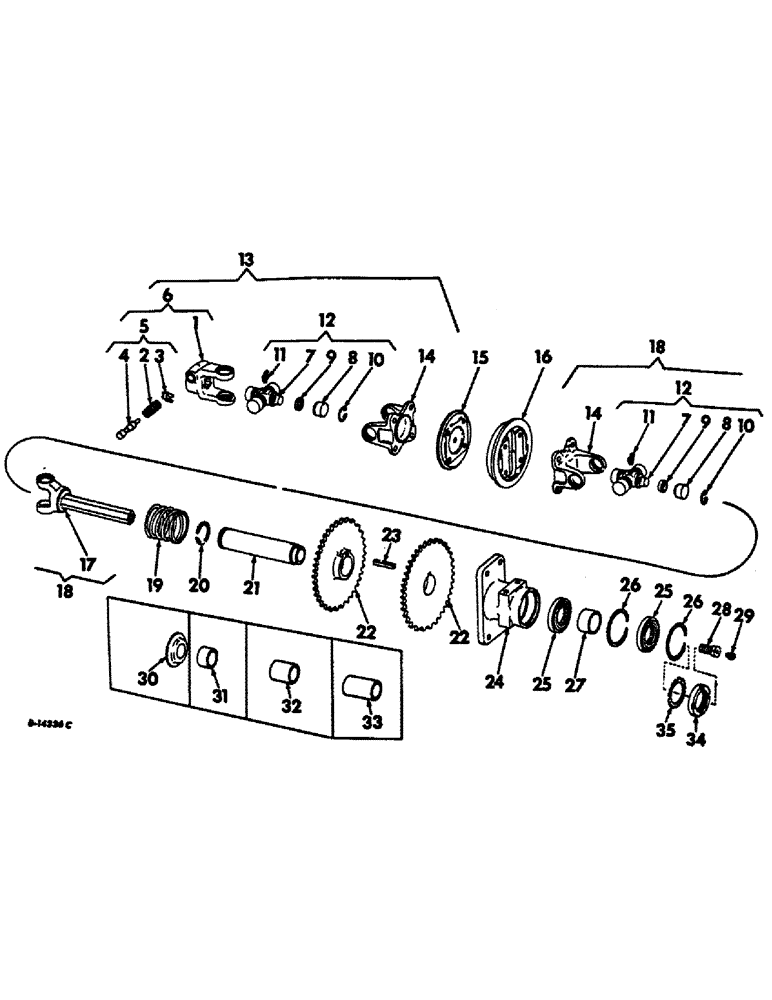

Запчасти Case IH 234 (A-08) - BASIC CORN HARVESTER, MAIN PTO DRIVE, 540 AND 1000 RPM (58) - ATTACHMENTS/HEADERS

1

YOKE - not serviced separately

1шт.

2

455347R1

VALVE SPRING

SPRING

1шт.

3

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X

1шт.

4

PIN - not serviced separately

1шт.

5

153126C91

KIT ASSY., locking pin - 540 RPM

1шт.

5

631976R91

PIN

KIT ASSY., locking pin - 1000 RPM

1шт.

6

631975R91

YOKE W/LOCKING PIN KIT - 540 RPM

1шт.

6

937176R91

YOKE W/LOCKING PIN KIT - 1000 RPM

1шт.

7

SPIDER, not serviced separately

2шт.

8

661671R91

JOINT

BEARING ASSY., needle cup

8шт.

9

661714R1

WASHER, cork

16шт.

10

495962R1

RING

SNAP RING

16шт.

11

271284

YOKE

lubrication

2шт.

12

660116R91

NUT

SPIDER ASSY.

2шт.

13

937046R91

JOINT ASSY., main drive front, universal, 540 RPM, Farmall M, SM, SMTA, 300, 350, 400, 450, 460, 504, 544, 560, 656 and 666, Oliver 1600, 1650, 1800, 1850, and Case 730 and 830 tractors

1шт.

13

937055R91

JOINT ASSY., main drive front, universal, 1000 RPM, Farmall 544, 656, 706, 756, 766, 806, 826, 856, 966, 1026, 1066, 1206, 1256, & 1456, Ford 6000, John Deere 3010, 3020, 4010 & 4020 tractors

1шт.

14

939453R1

YOKE, flange

2шт.

15

937048R1

COUPLING, main drive front

1шт.

19042R1

BOLT,7/16"-14 x 1 1/2", G2, Full Thd

7/16-14 x 1-1/2 C-Z no. 3 plow

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

16

937047R1

COUPLING, main drive rear

1шт.

19042R1

BOLT,7/16"-14 x 1 1/2", G2, Full Thd

7/16-14 x 1-1/2 C-Z no. 3 plow

4шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

17

939448R91

YOKE W/SHAFT, short, Farmall M, SM, SMTA, 300, 350, 400, 450, 460, 560, 706, 756, 826, 1206, 1256, 1456, Oliver 1600 & 1650, Case 730 & 830

1шт.

17

155759C91

YOKE W/SHAFT, long, Farmall 504, 544, 656, 666, 766, 806, 856, 966, 1026 & 1066, Ford 6000, Oliver 1800 & 1850, Deere 3010, 3020, 4010 & 4020 tractors.

1шт.

18

937049R91

JOINT ASSY., main drive rear, universal, short, Farmall M, SM, SMTA, 300, 350, 400, 450, 460, 560, 706, 756, 826, 1206, 1256 & 1456, Oliver 1600, 1650, Case 730 & 830

1шт.

18

151457C91

JOINT ASSY., main drive rear, universal, long, Farmall 504, 544, 656, 666, 766, 806, 856, 966, 1026 & 1066, Ford 6000, Oliver 1800, 1850, John Deere 3010, 3020, 4010 & 4020 tractors

1шт.

22813R1

WASHER, 1-11/32 x 1-3/4 x 11 ga. C-Z

5шт.

19

381493R1

SPRING

main drive shaft

1шт.

20

512892R1

RING, SNAP

RING, main drive shaft snap

1шт.

21

937056R1

SHAFT, main drive

1шт.

22811R1

WASHER

2-1/32 x 2-3/4 x 14 ga. znp.

2шт.

22

937054R1

SPROCKET ASSY.

SPROCKET, main drive 20-T, 1000 RPM, Farmall 544, 656, 706, 756, 766, 806, 826, 856, 966, 1026, 1066, 1206, 1256 & 1456, Ford 6000, John Deere 3010, 3020, 4010 & 4020 tractors

2шт.

22

937050R1

SPROCKET, main drive 37-T, 540 RPM, Farmall M, SM, SMTA, 300, 350, 400, 450, 460, 504, 544, 560, 656 and 666, Oliver 1600, 1650, 1800, 1850 and Case 730 and 830 tractors

2шт.

23

937057R1

KEY, main drive sprocket

1шт.

24

937051R1

HOUSING, main drive shaft brg.

1шт.

18790R1

BOLT

3/8 x 5-1/2 C-Z hex-hd. mach.

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16 x 1 C-Z hex-hd. cap.

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16 x 1-1/4 C-Z hex-hd. cap.

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga. C-Z

4шт.

25

937052R91

BEARING ASSY., main drive shaft ball

2шт.

26

512891R1

RING, SNAP

RING, main drive shaft brg. snap

2шт.

27

937053R1

SPACER, main drive shaft brg.

1шт.

28

937058R1

BOLT, main drive rear joint shaft

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

608081R1

WASHER

21/32 x 1-1/4 x 11 ga. C-Z

1шт.

29

16964R91

FITTING

1/4-28 90 degree angle lub.

1шт.

30

151458C1

RETAINER, main drive spring, Farmall 504, 544, 656, 666, 766, 806, 856, 966, 1026 & 1066, Ford 6000, Oliver 1800, 1850, John Deere 3010, 3020, 4010 & 4020 tractors

1шт.

31

151459C1

SPACER, main drive shaft, 1/2 in. long, Farmall 756, 806, 826, 856, 1256, 1456, Ford 6000, Oliver 1800, 1850, Deere 3010, 3020, 4010 & 4020 tractors

1шт.

32

151460C1

SPACER, main drive shaft, 1 in. long, Farmall 504, 544, 656, 666, 766, 806, 856, 966, 1026 & 1066, Ford 6000, Oliver 1800, 1850, John Deere 3010, 3020, 4010 & 4020 tractors.

1шт.

33

563348R1

SPACER, main drive shaft, 1-1/2 in. long, Farmall 504, 544, 656, 666, 766, 806, 856, 966, 1026 & 1066, Ford 6000, Oliver 1800, 1850, John Deere 3010, 3020, 4010 & 4020 tractors.

1шт.

34

131-1036

BEARING LOCK NUT,Bearing, 1.7717" Bore

NUT, N-09 4 slot brg. lock

1шт.

35

127689

WASHER, LOCK

WASHER, W-09 brg. lock

1шт.
