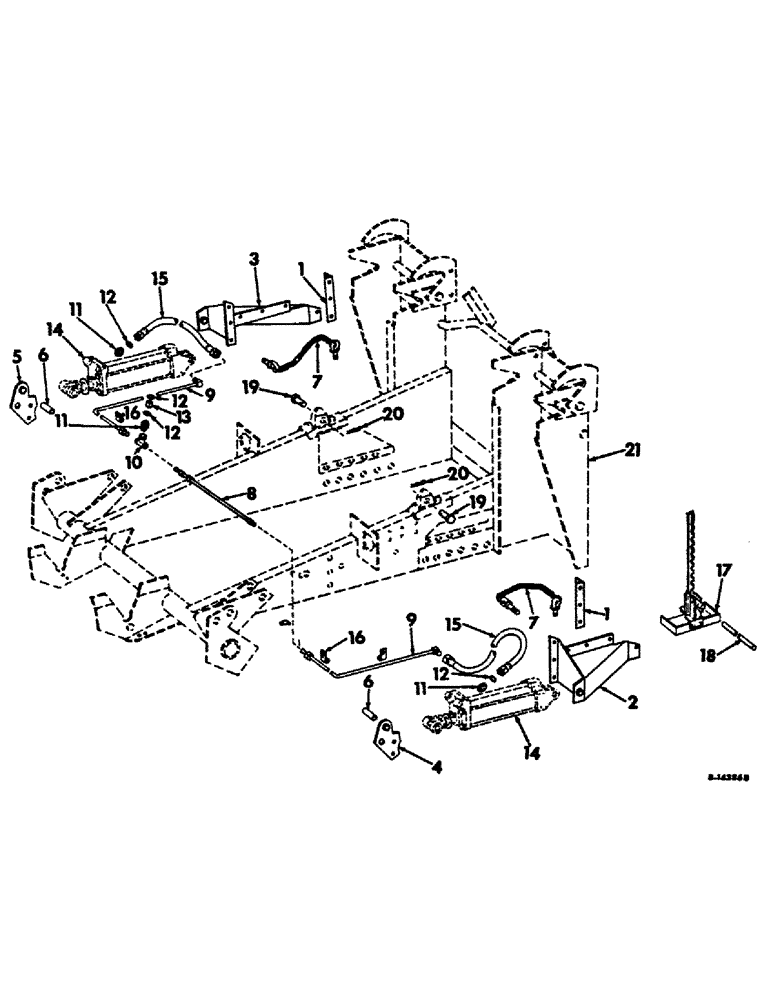

Запчасти Case IH 234 (A-06) - BASIC CORN HARVESTER, CYLINDER LIFT (58) - ATTACHMENTS/HEADERS

1

155370C1

ANGLE, hyd. cyl. lift anchor, reinforcement

2шт.

2

154984C91

ANCHOR ASSY., hyd. cyl. lift rear L.H.

1шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 C-Z hex-hd. mach.

3шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z hex-hd. mach.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

3

154895C91

ANCHOR ASSY., hyd. cyl. lift rear R.H.

1шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 C-Z hex-hd. mach.

3шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z hex-hd. mach.

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

4

151174C91

ANCHOR ASSY., hyd. cyl. front L.H.

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 C-Z hex-hd. mach.

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

151175C91

ANCHOR ASSY., hyd. cyl. front R.H.

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 C-Z hex-hd. mach.

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

578631R1

SPACER, hyd. cyl. front anchor

2шт.

17276R1

BOLT

7/8 x 5-1/2 C-Z hex-hd. mach.

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

131047

WASHER,7/8"

7/8"

2шт.

668752R1

WASHER

29/32 x 1-1/4 x 16 ga. C-Z

2шт.

21220R1

WASHER

29/32 x 1-1/4 x 11 ga. C-Z

2шт.

7

150540C91

CHAIN ASSY., main frame support

2шт.

21922R1

BOLT, 5/8 x 13 C-Z hex-hd. mach.

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga. C-Z

2шт.

8

154133C91

TUBE ASSY., cyl. hyd. center

1шт.

9

151466C91

TUBE ASSY., cyl. hyd.

2шт.

10

9410306

TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br

9/16-18 flared tube swivel

1шт.

11

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, hyd. cyl. tube

3шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 O.D. tube

4шт.

13

584802R1

CONNECTOR, ELEC

CONNECTOR, hyd. cyl. tube

1шт.

14

CYLINDER ASSY., hydraulic, not furnished w/corn harcester, two matched stand A.S.A.E. single action or double action converted w/breather cylinders 2-1/2 in. min to 3-1/2 in. max. dia. x 8 in. stroke, refer to tractor parts catalogs

1шт.

15

633213R91

HOSE ASSY., hyd. cyl.

2шт.

16

589980R2

CLIP

CLAMP, hyd. tube

4шт.

18769R1

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 2

5/16 x 2-1/2 C-Z hex-hd. mach.

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

152303C92

JACK ASSY., main frame

2шт.

18

152302C1

ROD, main frame jack

2шт.

19

22807R1

CLEVIS PIN

PIN, main frame support

2шт.

20

517843R1

COTTER PIN

PIN, 3/16 quick attachable

2шт.

21

FRAME ASSY., main, refer to main frame and main drive jackshaft listing

1шт.
