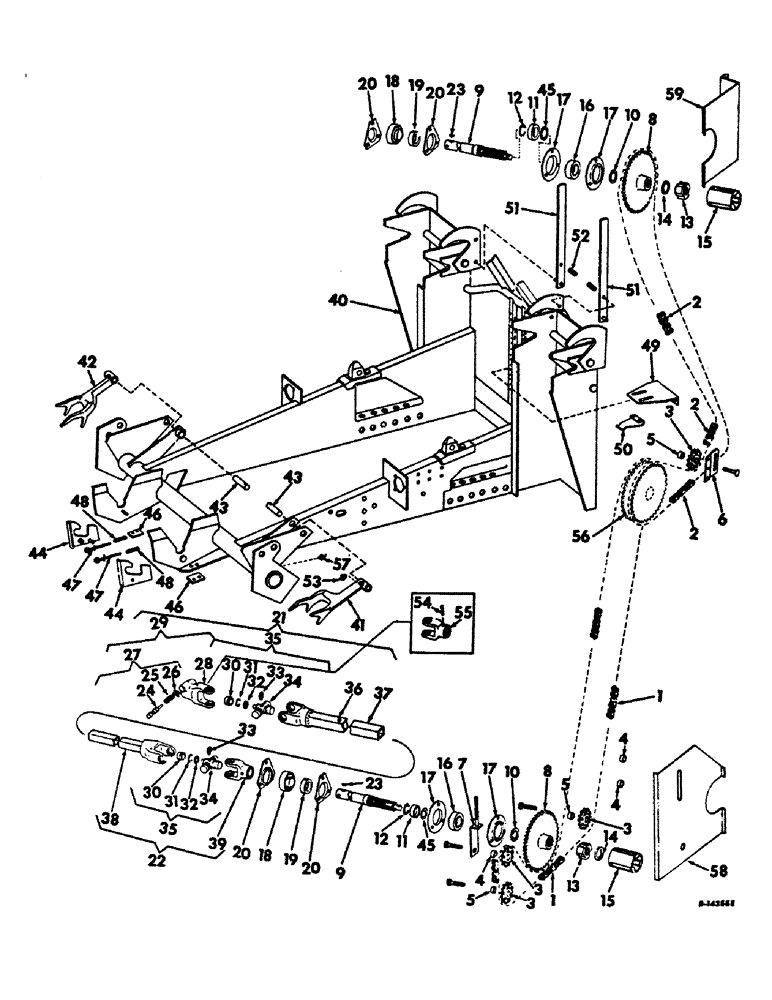

Запчасти Case IH 234 (A-02) - BASIC CORN HARVESTER, MAIN FRAME AND MAIN DRIVE JACKSHAFT (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
CHAIN, main drive LH, Use 125 links from 10-ft roll marked 1793D & 1 connecting link 1786D
1шт.
2
CHAIN, main drive RH, Use 93 links from 10-ft roll marked 1793D & 1 connecting link 1786D
1шт.
3
629972R91
DRIVE SPROCKET,15T
SPROCKET ASSY, idler
4шт.
18723R1
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 2
BOLT, 5/8 x 2-3/4 C-Z sq-nk crg
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
608701R1
WASHER
21/32 x 1-1/4 x 16 ga C-Z
5шт.
22810R1
SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole
21/32 x 1-1/4 x 16 ga sq
6шт.
4
558506R1
SPACER
tightener sprocket & shield
3шт.
5
577715R1
SPACER,16.69mm ID x 22.23mm OD x 10.32mm L
idler sprocket
3шт.
6
937116R1
BRACKET, main dr chain RH tightener
1шт.
271501
SOCKET
NUT, 7/16 znd hex
2шт.
180147
SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5
7/16 x 1-1/4 hex-hd cap
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
7
151405C11
PLATE ASSY, drive chain tightener
1шт.
NLS
NO LONGER SERVICED
NUT, 7/16 C-Z hex
2шт.
8
937114R1
SPROCKET, main driven 37-T
2шт.
9
937115R2
SHAFT, main drive
2шт.
10
151400C1
WASHER, main drive shaft
4шт.
11
935856R1
BUSHING
main drive shaft
2шт.
12
575186R1
SNAP RING
RING, main drive shaft
2шт.
13
632151R1
COUPLING
main drive
2шт.
102609R1
LOCK NUT,3/4"-16
NUT, 3/4-16 znp nylon insert
2шт.
13
159757C1
COUPLING, jackshaft drive, special w/grinder
2шт.
14
151401C1
BELLEVILLE WASHER
WASHER, spring
2шт.
15
937119R1
COUPLING, main drive sleeve
2шт.
15
159758C1
COUPLING, jackshaft drive sleeve, special w/grinder
2шт.
16
565672R91
BALL BEARING,1.25" ID x 72 mm OD x 1.53125"
ASSY, main dr shaft rear
2шт.
17
617863R1
FLANGED BEARING
main drive shaft rear brg
4шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z sq-nk crg
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
469668R1
WASHER
13/32 x 3/4 x 16 ga C-Z
6шт.
18
617668R91
BALL BEARING
ASSY, main dr shaft front
2шт.
19
557995R11
COLLAR
W/SET SCREW, brg lkg
2шт.
192450
SET SCREW,Hex Soc, 5/16"-18 x 5/16"
SCREW, 5/16 x 5/16 hex-soc-hd
2шт.
20
662649R1
RETAINER
FLANGE, main drive shaft front brg
4шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z sq-nk crg
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
21
937112R91
JOINT ASSY, universal tube front
2шт.
22
937113R91
JOINT ASSY, universal tube rear
2шт.
21951R1
PIN,5/16" x 2 1/4"
5/16 x 2-1/4 C-Z std-hd
2шт.
648002
KNIFE
1/8" x 3/4"
2шт.
23
88907
WOODRUFF KEY,#B, 5/16" x 1", HT
KEY, 5/16 x 1 ast Woodruff B.
2шт.
24
PIN - not serviced separately
2шт.
25
455347R1
VALVE SPRING
SPRING
2шт.
26
661406R1
LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk
X
2шт.
27
455346R21
PIN
KIT, locking pin
2шт.
28
YOKE - not serviced separately
2шт.
29
939451R91
YOKE W/LOCKING PIN KIT
2шт.
30
661655R91
BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"
CUP ASSY, needle
8шт.
31
661657R1
RING
SNAP RING
8шт.
32
661656R1
SEAL, cork oil
8шт.
33
219-40
LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF
lubrication
2шт.
34
SPIDER - not serviced separately
2шт.
35
659262R91
U-JOINT SPIDER
SPIDER ASSY, universal
2шт.
36
19688R1
LUBE NIPPLE,1/4"-28 x .44" lg
FITTING, 1/4-28NF straight lub
2шт.
37
939449R91
YOKE W/TUBE 13.468 mm L
2шт.
38
939450R91
YOKE W/SHAFT
2шт.
39
939452R1
YOKE - not Oliver 1600 tractor
2шт.
40
154673C91
FRAME ASSY, main
1шт.
22244R1
LOCK NUT
3/4 znd nylon insert
2шт.
178375R1
WASHER
25/32 x 1-1/4 x 16 ga C-Z
2шт.
41
150378C1
FORK, snapping unit lift LH
1шт.
42
150379C1
FORK, snapping unit lift RH
1шт.
43
939458R1
PIN, snapping unit lift
2шт.
17244R1
LOCK PIN,5/16" x 1 1/4", Slotted
PIN, 5/16" x 1 1/4", Slotted
2шт.
44
937996R91
LOCK ASSY, front support LH
1шт.
44
937997R91
LOCK ASSY, front support RH
1шт.
18481R1
COTTER PIN,3/16" x 1"
PIN, SPLIT (COTTER), 3/16" x 1"
2шт.
178374R1
WASHER
17/32 x 1-1/4 x 16 ga
2шт.
45
162677C1
WASHER
bearing collar
2шт.
46
938000R1
STRAP, front lock
2шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z sq-nk crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
47
938001R11
PIN ASSY, front lock spring
2шт.
469668R1
WASHER
13/32 x 3/4 x 16 ga C-Z
2шт.
48
MA1574
SPRING
fork lock
2шт.
49
938002R1
BRACKET, main drive support
1шт.
18695R1
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
BOLT, 7/16 x 1-1/4 C-Z sq-nk crg
2шт.
271501
SOCKET
NUT, 7/16 C-Z hex
2шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
2шт.
50
938003R1
GUIDE, support
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
BOLT, 3/8 x 3/4 C-Z sq-nk crg
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
619856R1
WASHER
13/32 x 1 x 16 ga C-Z
2шт.
51
938009R11
LEVER ASSY, pivot lock
2шт.
17148R1
BOLT,Short NK, 1/2"-13 x 2 1/4", G2
1/2 x 2-1/4 C-Z sq-nk crg
2шт.
19696R1
LOCK NUT,1/2"-13, GB
NUT, 1/2 C-Z Esna stop
2шт.
178373R1
WASHER
17/32 x 1 x 16 ga C-Z
2шт.
52
67205D
SPRING
pivot lock lever
2шт.
53
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28 straight lub
2шт.
54
457216R1
HEADED PIN,5/16" x 2 1/4"
PIN, snapping unit drive yoke
2шт.
648002
KNIFE
1/8" x 3/4"
2шт.
55
152262C1
YOKE, Oliver, 1600, 1650, 1800 and 1850 tractors
1шт.
56
SPROCKET, main drive 37-T, refer to main PTO drive listing
1шт.
57
332040
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
FITTING, 1/8-27 90 degree angle lub
2шт.
58
168408C1
SHIELD ASSY, LH
1шт.
21776R1
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 2
BOLT, 5/8 x 3-1/4 C-Z sq-nk crg
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
608701R1
WASHER
21/32 x 1-1/4 x 16 ga
4шт.
59
168409C1
SHIELD ASSY, RH
1шт.
19703R1
BOLT, 5/8 x 1-1/4 znd sq-nk crg
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
608701R1
WASHER
21/32 x 1-1/4 x 16 ga C-Z
1шт.
Выбрано товаров: 110
