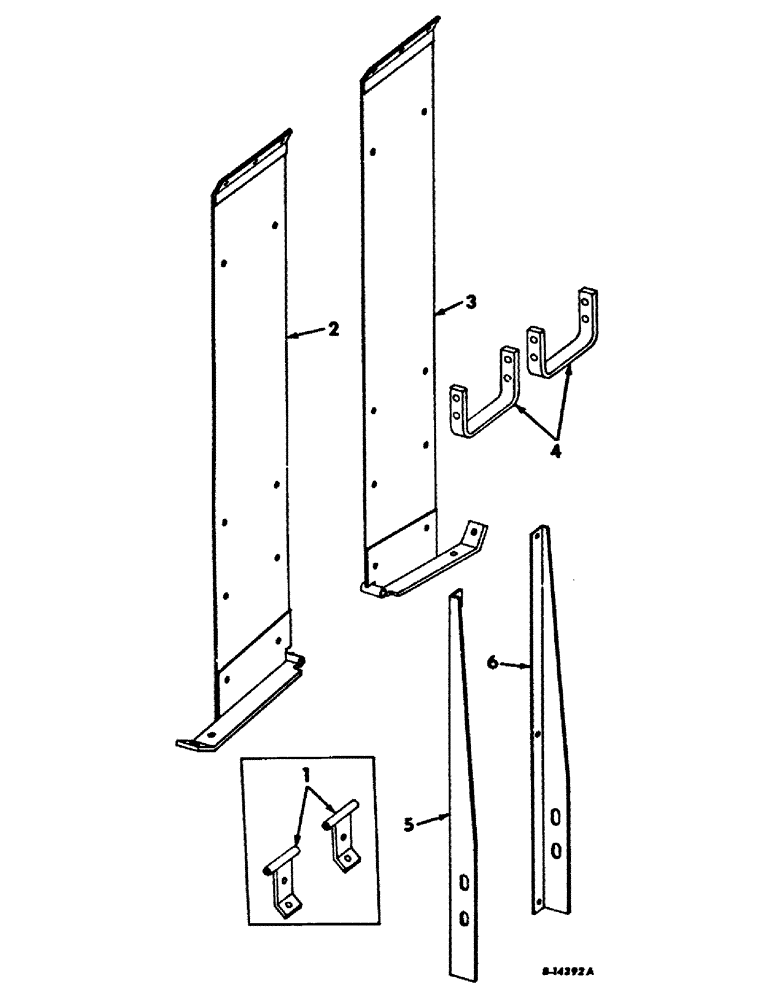

Запчасти Case IH 234 (B-10) - TRACTOR MOUNTINGS, CENTER DIVIDER EXTENSION, CHANNEL AND ANGLE (39) - FRAMES AND BALLASTING

1

939501R91

BRACE ASSY., center divider pivot, Farmall M, Super M, 300, 350, 400, 450, 504, 544, Deere 3010, 3020, Case 730, 830 & Oliver 1600 & 1650 tractors

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

4шт.

18711R1

BOLT,Short NK, 1/2"-13 x 3 1/2", G2

1/2 x 3-1/2 C-Z sq-nk. crg.

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 ESNA stop

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

939417R91

SECTION ASSY., extension, L.H., 6 inch, Farmall SMTA, 460, 560 and Ford 6000 tractors

1шт.

2

939408R91

SECTION ASSY., extension, L.H., 9 inch, Farmall 656, 706 serial no. 37236 and below, Oliver 1800 and 1850 tractors

1шт.

2

152927C91

SECTION ASSY., extension, L.H., 12 inch, Farmall 666 tractor, Deere 4010 and 4020 tractors

1шт.

2

939503R91

SECTION ASSY., extension, L.H., 15 inch, Farmall 706 serial no. 37237 & above, 756 and 826 tractors

1шт.

2

939512R91

SECTION ASSY., extension, L.H., 18 inch, Farmall 766, 806, 856, 966, 1026, 1066, 1206, 1256, & 1456 tractors

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk. crg.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

231-1448

NUT,1/2"-13, GB

1/2 znp. nylon insert

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

939418R91

SECTION ASSY., extension, R.H., 6 inch, Farmall SMTA, 460, 560 and Ford 6000 tractors

1шт.

3

939409R91

SECTION ASSY., extension, R.H., 9 inch, Farmall 656, 706 serial no. 37236 and below, Oliver 1800 and 1850 tractors

1шт.

3

152928C91

SECTION ASSY., extension, R.H., 12 inch, Farmall 666 tractor, Deere 4010 and 4020 tractors

1шт.

3

939504R91

SECTION ASSY., extension, R.H., 15 inch, Farmall 706 serial no. 37237 and & above, 756 and 826 tractors

1шт.

3

939513R91

SECTION ASSY., extension, R.H., 18 inch, Farmall 766, 806, 856, 966, 1026, 1066, 1206, 1256 & 1456 tractors

1шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

2шт.

20314R1

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk. crg.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

8шт.

231-1448

NUT,1/2"-13, GB

1/2 znp. nylon insert

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z whiz lock

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

939425R1

CHANNEL, support, 6 inch, Farmall SMTA, 460, 560 and Ford 6000 tractors

2шт.

4

939416R1

CHANNEL, support, 9 inch, Farmall 656, 706 serial no. 37236 and below, Oliver 1800 and 1850 tractors

2шт.

4

152963C1

CHANNEL, support, 12 inch, Farmall 666 tractor, Deere 4010 and 4020 tractors

2шт.

4

939511R1

CHANNEL, support, 15 inch, Farmall 706 serial no. 37237 & above, 756 and 826 tractors

2шт.

4

939520R1

CHANNEL, support, 18 inch, Farmall 766, 806, 856, 966, 1026, 1066, 1206, 1256 & 1456 tractors.

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 hex-hd. mach.

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

5

938120R2

ANGLE, supt., L.H., serial no. 6782 & below, Farmall 460, 560, 656, 706, 756, 826, SMTA, Ford 6000, Oliver 1800 & 1850, Deere 4010 & 4020 tractors

1шт.

6

938121R2

ANGLE, supt., R.H., serial no. 6782 & below, Farmall 460, 560, 656, 706, 756, 826, SMTA, Ford 6000, Oliver 1800 & 1850, Deere 4010 & 4020 tractors

1шт.
