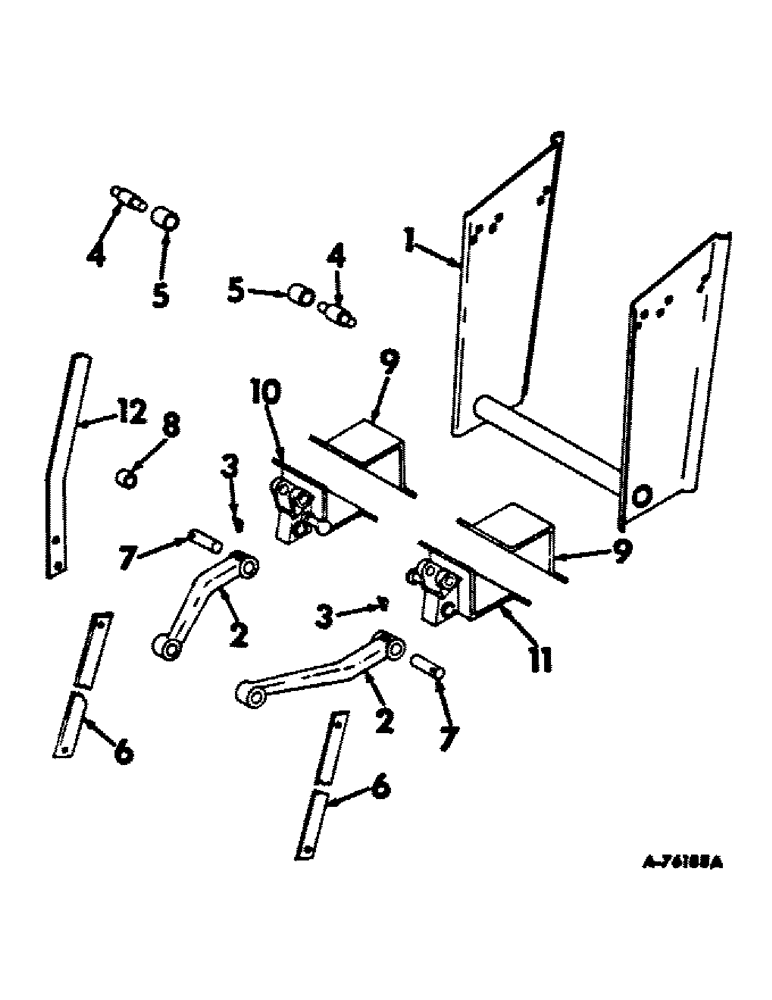

Запчасти Case IH 234 (B-09) - TRACTOR MOUNTINGS, MAIN FRAME SUPPORT, BRACKET AND CLAMP DEERE 3010, 3020, 4010, AND 4020 TRACTOR (39) - FRAMES AND BALLASTING

1

151260C91

BRACKET ASSY., main frame front support

1шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8 x 1-1/2 C-Z sq-nk. crg.

6шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

6шт.

1251574

WASHER, 5/8 C-Z med. lock

6шт.

2

151270V1

ARM, rockshaft lift pivot, not used w/cylinder lift

2шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg. lub., not used w/cylinder lift

2шт.

4

151271C1

PIN, rockshaft lift, not used w/cylinder lift

2шт.

5

610184R1

SPACER, rockshaft lift pin, not used w/cylinder lift

2шт.

6

151272C1

STRAP, rockshaft lift link, not used w/cylinder lift

2шт.

7

939458R1

PIN, rockshaft lift arm pivot, not used w/cylinder lift

2шт.

441015R1

LOCK PIN,5/16" x 2 1/4", Slotted

2шт.

8

151459C1

SPACER, main drive shaft, 1/2 inch

2шт.

9

151267C1

CLAMP, rear support

2шт.

10

151263C91

BRACKET ASSY., rear support lower, L.H.

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 2 C-Z hex-hd. cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

151264C91

BRACKET ASSY., rear support lower, R.H.

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

4шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 2 C-Z hex-hd. cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

151449C1

LEVER, throw-out extension

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd. mach.

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
