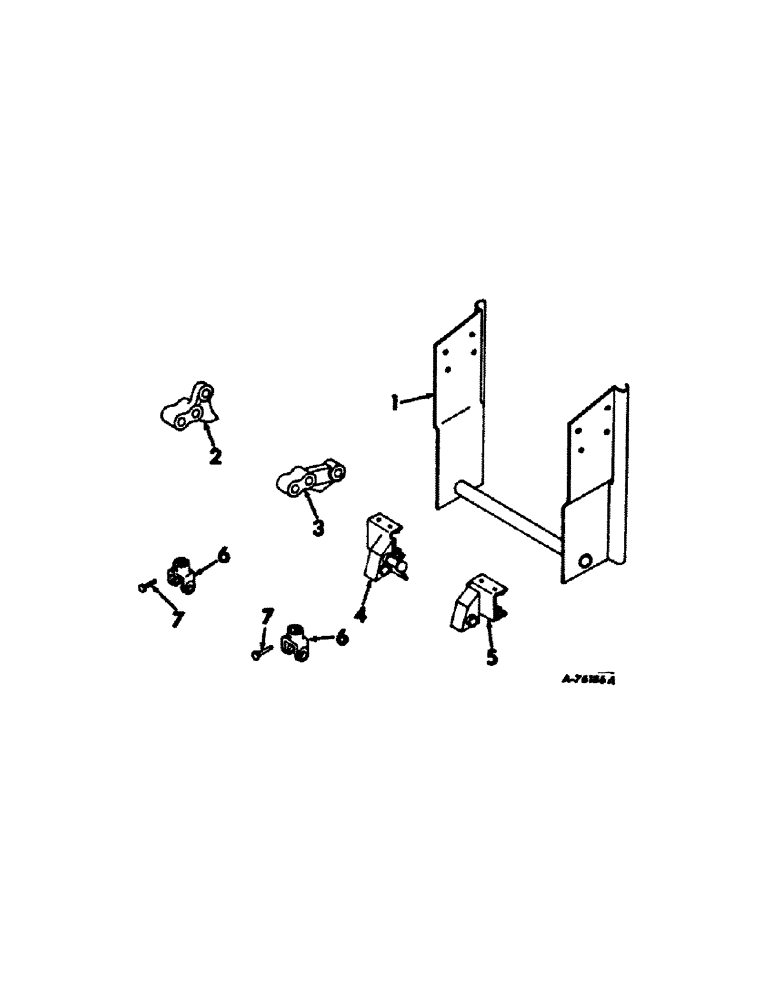

Запчасти Case IH 234 (B-08) - TRACTOR MOUNTINGS, MAIN FRAME SUPPORT, BRACKET AND CLAMP OLIVER 1600 AND 1650 TRACTOR (39) - FRAMES AND BALLASTING

1

151080C91

BRACKET ASSY., main frame front support

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

2

151088C1

EXTENSION, rockshaft lift link, L.H., not used w/cylinder lift

1шт.

3

151089C1

EXTENSION, rockshaft lift link, R.H., not used w/cylinder lift

1шт.

4

151083C91

BRACKET ASSY., main frame rear support, L.H.

1шт.

2717771

SCREW, 3/4 x 2 C-Z hex-hd. cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

5

151084C91

BRACKET ASSY., main frame rear support, R.H.

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4 x 2 C-Z hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

6

152262C1

YOKE, snapping unit drive

2шт.

7

457216R1

HEADED PIN,5/16" x 2 1/4"

PIN, snapping unit drive yoke

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.
