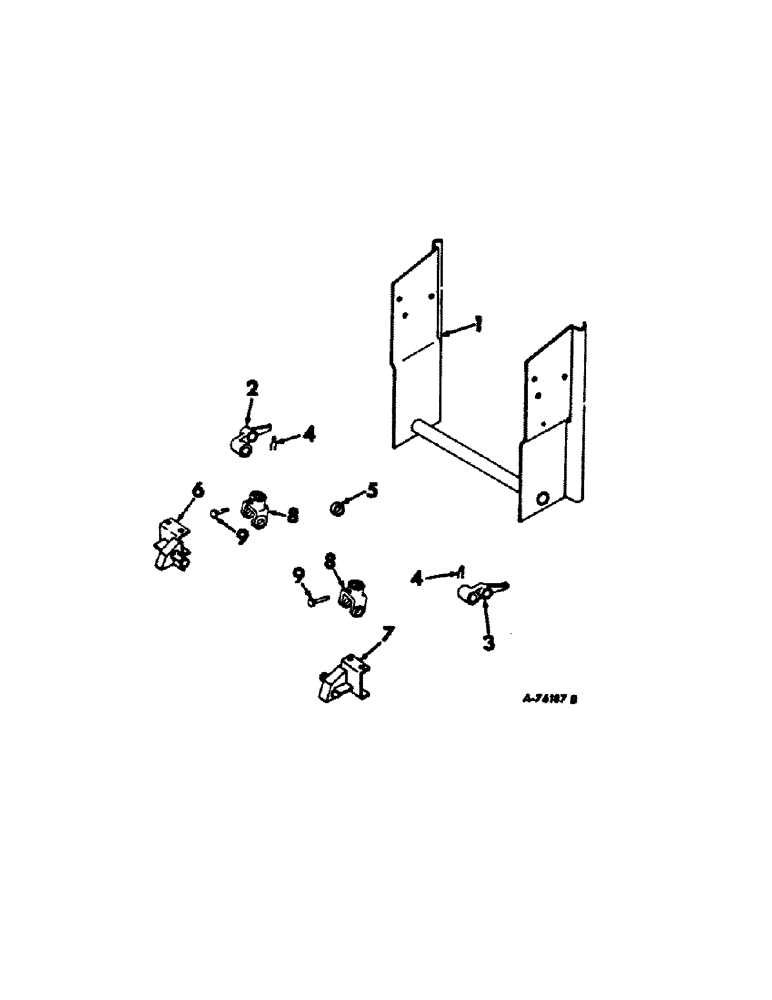

Запчасти Case IH 234 (B-08[1]) - MAIN FRAME SUPPORT, BRACKET AND CLAMP OLIVER 1800 AND 1850 TRACTOR (39) - FRAMES AND BALLASTING

1

151069C91

BRACKET ASSY., main frame front support

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

2

151078C1

EXTENSION, rockshaft lift link, L.H., not used w/cylinder lift

1шт.

3

151079C1

EXTENSION, rockshaft lift link, R.H., not used w/cylinder lift

1шт.

4

133927R1

RING, SNAP

RING, rockshaft pin snap

2шт.

5

151459C1

SPACER, main drive shaft, 1/2 in. long

1шт.

6

151072C91

BRACKET ASSY., main frame rear support, L.H.

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

7

151073C91

BRACKET ASSY., main frame rear support, R.H.

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

8

152262C1

YOKE, snapping unit drive

2шт.

9

457216R1

HEADED PIN,5/16" x 2 1/4"

PIN, snapping unit drive yoke

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.
