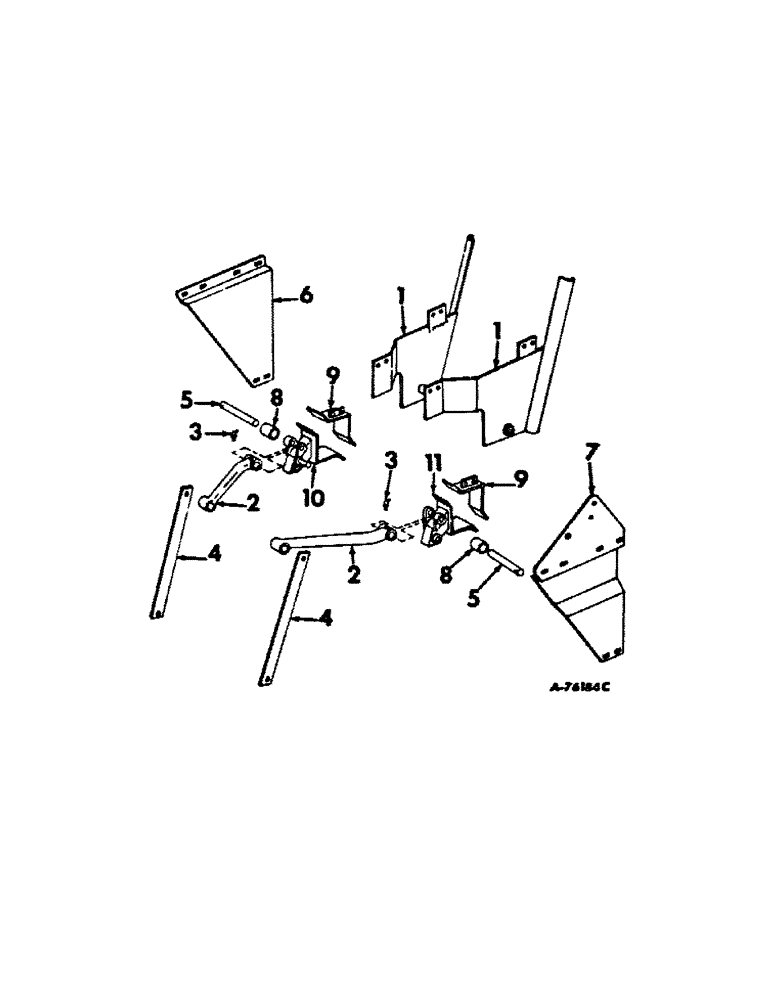

Запчасти Case IH 234 (B-07) - TRACTOR MOUNTINGS, MAIN FRAME SUPPORT, BRACKET AND CLAMP CASE 730 AND 830 TRACTOR (39) - FRAMES AND BALLASTING

1

151028C91

BRACKET ASSY., main frame front support

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/4 C-Z hex-hd.

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

2

151270C1

ARM, rockshaft lift pivot, not used w/cylinder lift

2шт.

3

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 lub., not used w/cylinder lift

2шт.

4

151272C1

STRAP, rockshaft lift link, not used w/cylinder lift

2шт.

5

939458R1

PIN, rockshaft lift arm pivot, not used w/cylinder lift

2шт.

441015R1

LOCK PIN,5/16" x 2 1/4", Slotted

2шт.

6

155916C1

BRACKET, operators deck support, L.H.

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

7

155917V1

BRACKET, operators deck support, R.H.

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk. crg.

6шт.

120376

NUT,5/16"-18, G5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

8

585464R1

SPACER

rockshaft pin, not used w/cylinder lift

2шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga. C-Z

4шт.

9

151033C91

CLAMP ASSY., rear support

2шт.

10

151036C91

BRACKET ASSY., main frame rear support lower, L.H.

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd. cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

151037C91

BRACKET ASSY., main frame rear support lower, R.H.

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

4шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 2 C-Z hex-hd. cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
