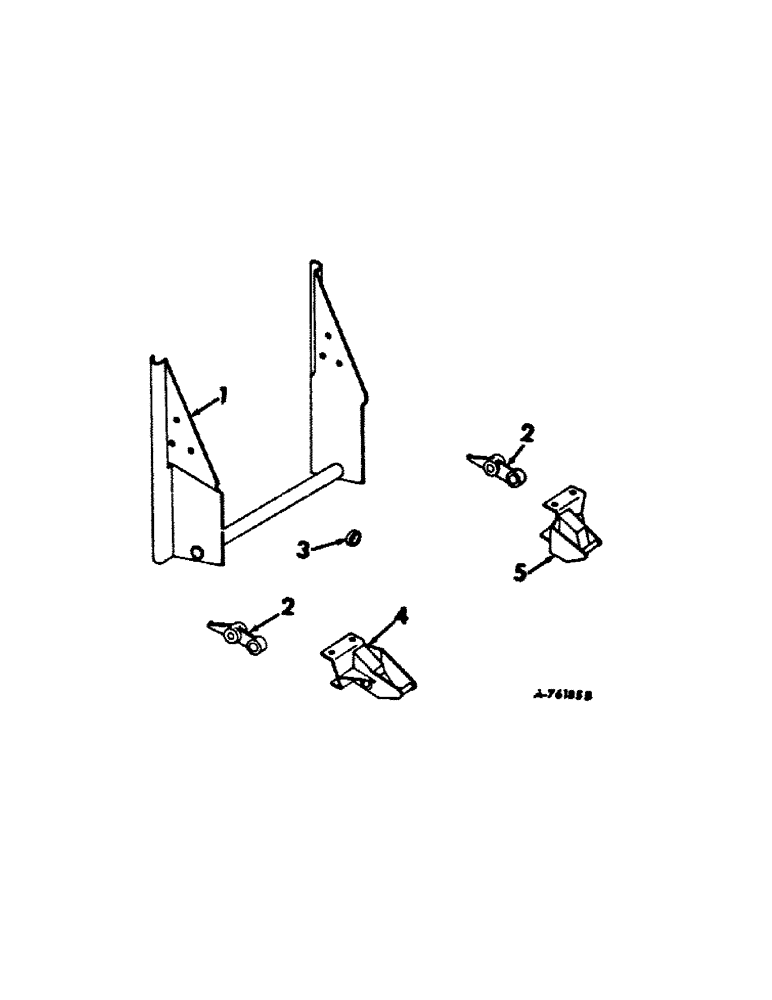

Запчасти Case IH 234 (B-07[1]) - MAIN FRAME SUPPORT, BRACKET AND CLAMP FORD 6000 TRACTOR (39) - FRAMES AND BALLASTING

1

151050C91

BRACKET ASSY., main frame front support

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd. cap

6шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

2

152304C1

EXTENSION, rockshaft, not used w/cylinder lift

2шт.

3

151459C1

SPACER, main drive shaft, 1/2 in. long

2шт.

4

151055C91

BRACKET ASSY., main frame rear support, L.H.

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd. cap

2шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga.

2шт.

5

151056C91

BRACKET ASSY., main frame rear support, R.H.

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8 x 1-1/2 C-Z hex-hd. cap

2шт.

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

Hex, 3/4"-10 x 1-1/4", G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga. C-Z

2шт.
