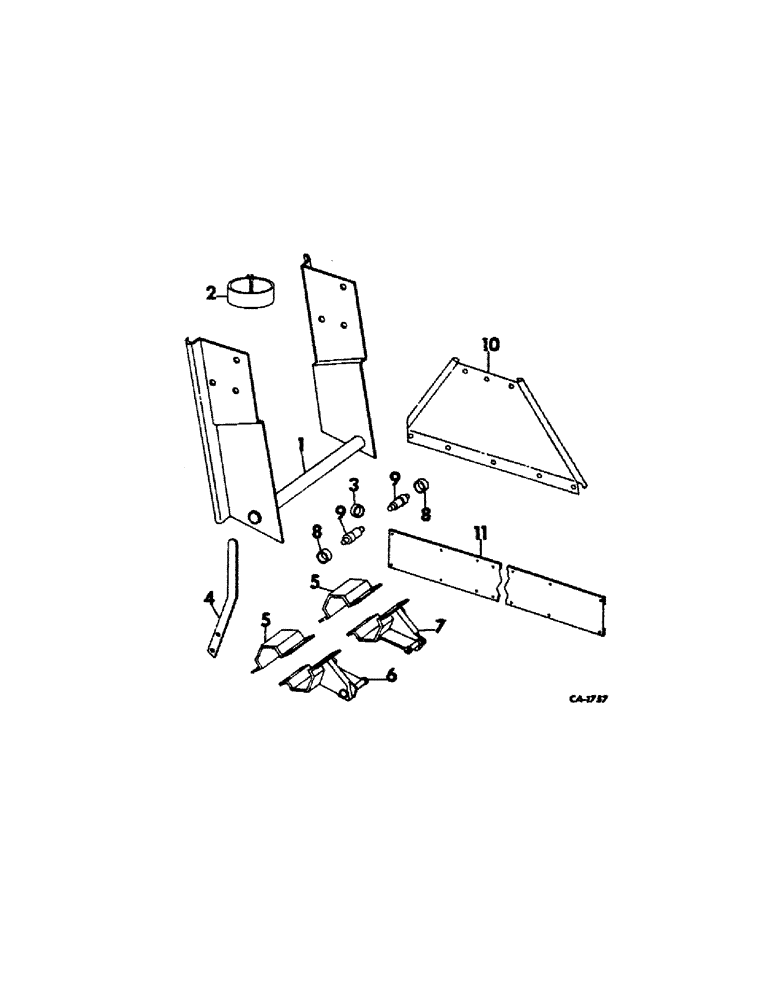

Запчасти Case IH 234 (B-06[1]) - MAIN FRAME SUPPORT, BRACKET AND CLAMP FARMALL 766, 966 AND 1066 TRACTORS (39) - FRAMES AND BALLASTING

1

173866C1

BRACKET ASSY., main frame front support

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

2

173865C1

SHIELD, muffler, 766 & 966 tractors

1шт.

2

173024C1

SHIELD, muffler, 1066 tractors

1шт.

21531R1

SCREW

1/4 x 1-3/4 slt-pan-hd.

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

151459C1

SPACER, main drive shaft

1шт.

4

151449C1

LEVER, throw-out extension

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd. mach.

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

151026C1

CLAMP, rear support upper

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z hex.

8шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8 x 2 C-Z hex-hd. cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

152723C91

BRACKET ASSY., main frame rear support lower, L.H., 766 & 966 tractors

1шт.

6

155221C91

BRACKET ASSY., main frame rear support lower, L.H., 1066 tractors

1шт.

7

152724C91

BRACKET ASSY., main frame rear support lower, R.H., 766 & 966 tractors

1шт.

7

155222C91

BRACKET ASSY., main frame rear support lower, R.H., 1066 tractors

1шт.

8

155228C1

SPACER,1 3/8" Tube x 1"

rockshaft pin, 1066 tractor

2шт.

9

155229C1

PIN, 1066 tractor

2шт.

10

173202C1

COVER, beater rear, L.H.

1шт.

10

173203C1

COVER, beater rear, R.H.

1шт.

11

632263R1

FILLER, wheel shield

2шт.
