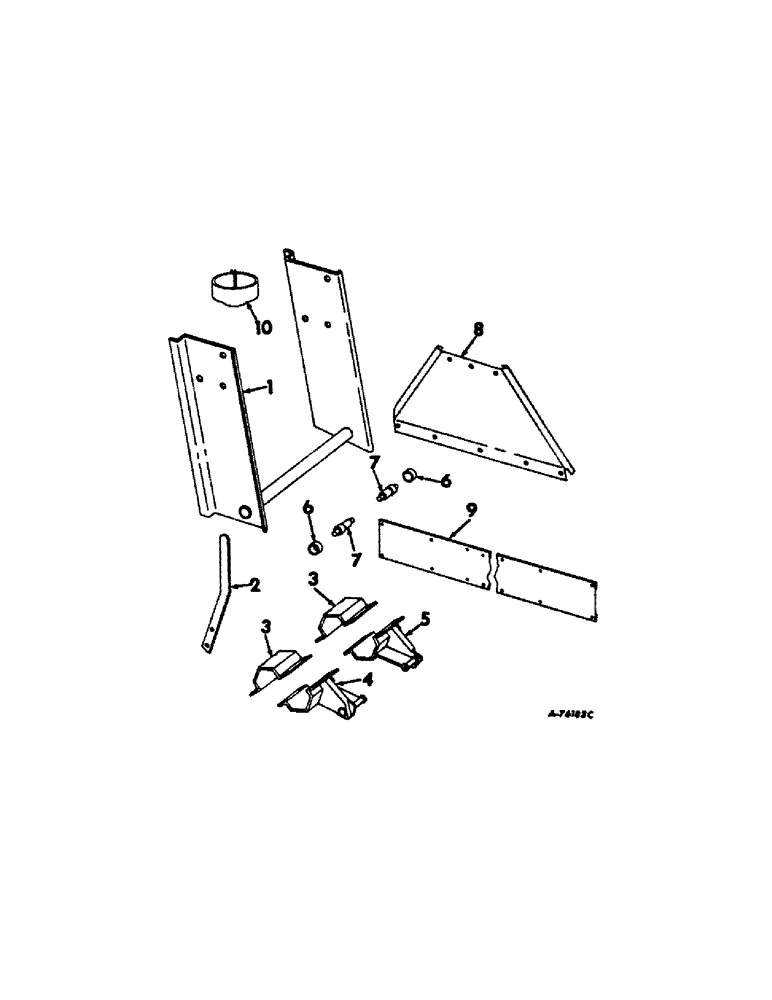

Запчасти Case IH 234 (B-05) - TRACTOR MOUNTINGS, MAIN FRAME SUPPORT, BRACKET AND CLAMP FARMALL 1206, 1256 & 1456 TRACTORS (39) - FRAMES AND BALLASTING

1

152720C91

BRACKET ASSY., main frame front support

1шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

6шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

2

151449C1

LEVER, throw-out extension

1шт.

18474T1

BOLT, 5/16 x 1 C-Z hex-hd. mach.

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

151026C1

CLAMP, rear support upper

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

8шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd. cap

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

4

155221C91

BRACKET ASSY., frame rear supt. lower, L.H.

1шт.

5

155222C91

BRACKET ASSY., frame rear supt. lower, R.H.

1шт.

6

155228C1

SPACER,1 3/8" Tube x 1"

rockshaft pin, not used w/cylinder lift

2шт.

7

155229C1

PIN, not used w/cylinder lift

1шт.

8

155230C1

COVER, beater rear, L.H.

1шт.

8

155231C1

COVER, beater rear, R.H., serial no. 6782 and below

1шт.

8

173202C1

COVER, beater rear, L.H.

1шт.

8

173203C1

COVER, beater rear, R.H., serial no. 6783 and above

1шт.

9

632263R1

FILLER, wheel shield

2шт.

10

173025C1

SHIELD, tractor exhaust pipe, 1456 tractor w/oval muffler

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

21531R1

SCREW

1/4 x 1-3/4 pan-hd. mach.

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
